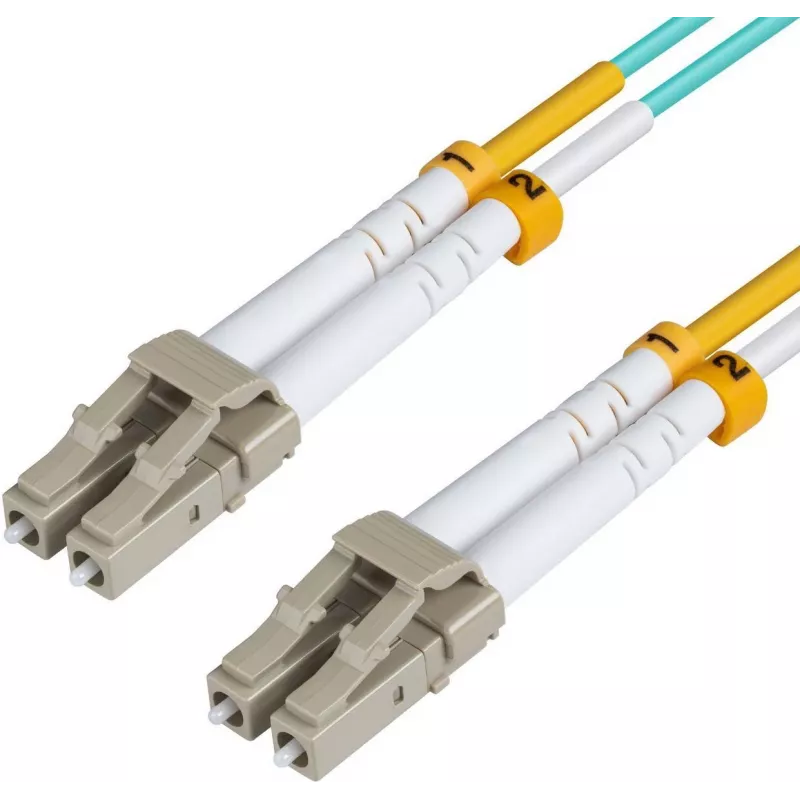

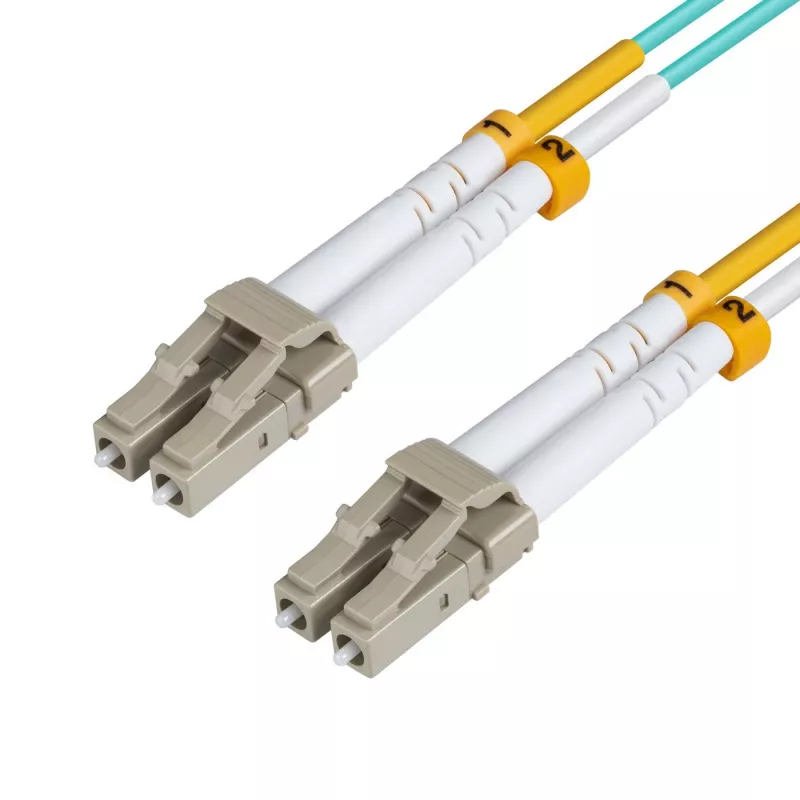

Microconnect FIB442012 cavo in fibra ottica InfiniBand OM3 – LC-LC 12 m blu

High-speed InfiniBand OM3 fiber optic patch cable with LC duplex connectors, delivering up to 100 Gbps for data center and HPC environments. This 12-meter cable ensures low insertion loss and reliable signal integrity.

Advantages

50/125 µm OM3 multimode fiber supports FDR and EDR InfiniBand speeds. LSZH blue jacket offers fire safety and flexibility. Duplex LC/UPC connectors provide secure, low-loss connections.

Suitable for

• InfiniBand switches and HCAs
• Data center core and edge cabling
• High-performance computing clusters
• Storage area networks

Key specifications

• Length: 12 m
• Connectors: LC duplex to LC duplex (UPC)
• Fiber type: OM3 multimode, 50/125 µm
• Jacket: LSZH, blue
• Insertion loss: <0.3 dB per connector
• Return loss: >20 dB
• Operating temperature: -20 to 70 °C
• Storage temperature: -40 to 85 °C
• Compliance: RoHS, CE

Recommendations

Ensure LC connectors are clean and properly aligned before installation. Avoid bending the cable beyond its minimum bend radius to maintain optimal signal quality.
