Microconnect FIB841010 cavo InfiniBand/fibra ottica 10 m SC LC giallo

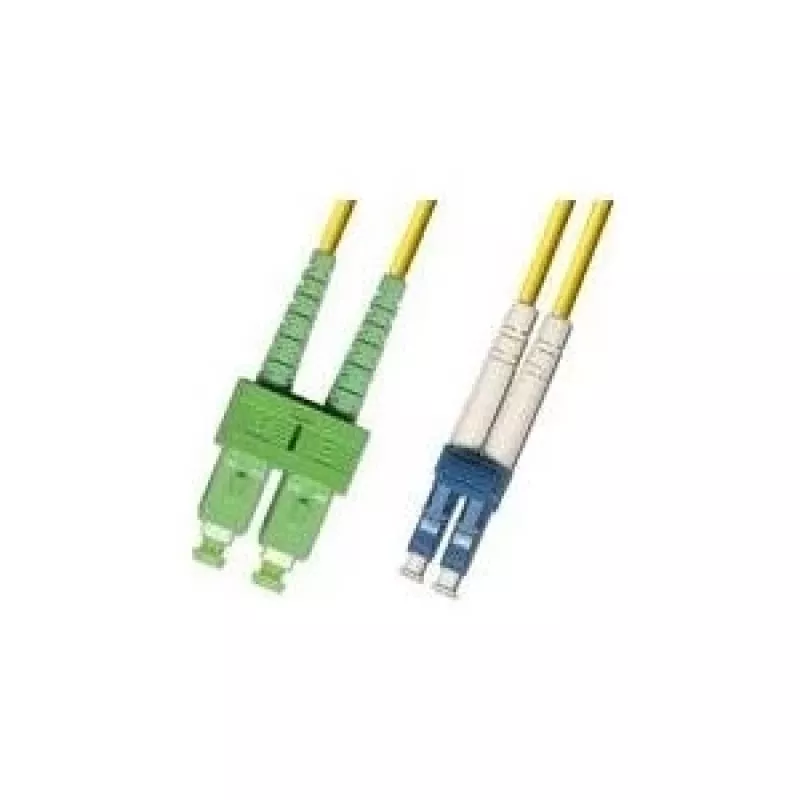

The Microconnect FIB841010 is a 10 m single mode fibre optic patch cable with SC connector on one end and LC connector on the other. It uses OS2 fibre with a 9 µm core diameter and a yellow LSZH jacket, designed for enterprise networks, telecom rooms, server farms and cloud storage networks. The cable supports 1G/10G/40G/100G Ethernet links and can transmit data up to 10 km at 1310 nm or up to 40 km at 1550 nm, offering low attenuation for long-distance connections.

Advantages

This single mode patch cable provides stable high-speed transmission and low signal loss thanks to OS2 fibre and a 9 µm core. The SC-LC connector combination ensures compatibility with a wide range of network equipment and patch panels. The LSZH jacket reduces smoke and toxic gas emission in case of fire, and the 10 m length with yellow colouring makes routing and identification in installations straightforward.

Suitable for

• Enterprise network backbones and horizontal cabling
• Telecom rooms and data center patching
• Server farms and cloud storage interconnects
• 1G/10G/40G/100G Ethernet connections requiring single mode fibre

Key specifications

• Cable length: 10 m
• Connector 1: SC
• Connector 2: LC
• Fibre type: OS2 (single mode), 9 µm core
• Product colour: Yellow
• Jacket: LSZH
• Typical transmission: up to 10 km @ 1310 nm, up to 40 km @ 1550 nm
• Weight: 0.09 kg

How to use

Route the Microconnect FIB841010 patch cable between the SC port and the LC port of the desired equipment or patch panel. Ensure connectors are clean before mating to avoid signal degradation. Insert each connector into the appropriate receptacle until it clicks or is securely seated. Avoid tight bends and maintain the minimum bend radius for single mode fibre during installation to prevent increased attenuation or damage.

Recommendations

Store and handle the cable using protective caps on connectors when not in use. For best performance, regularly inspect and clean connector endfaces and follow your facility's cabling standards for routing and strain relief.
