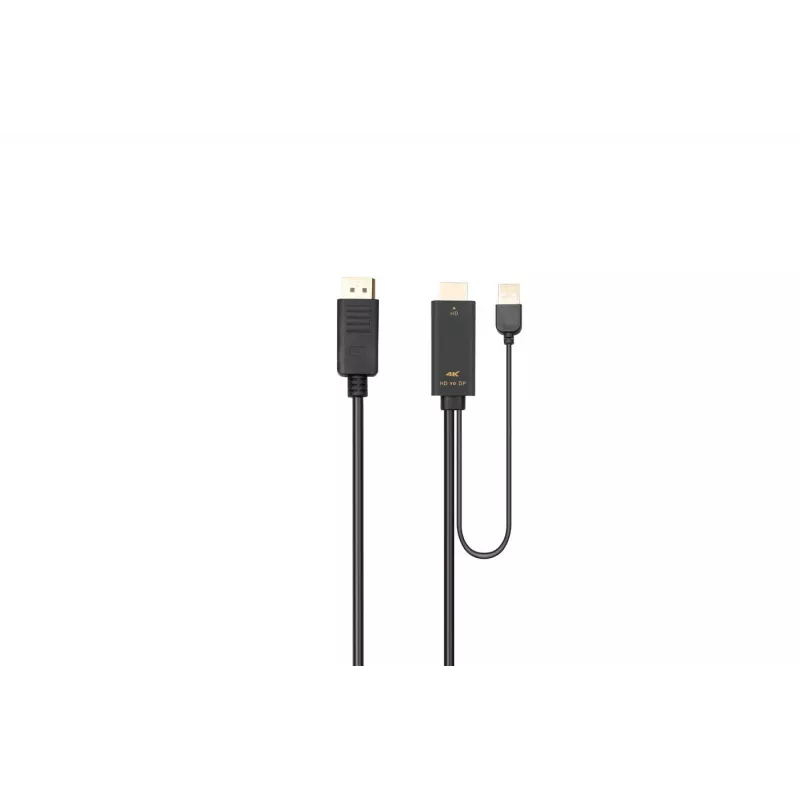

Microconnect HDMI-DP-CON3 Adattatore cavo video 3 m HDMI Type-A (standard) DisplayPort nero

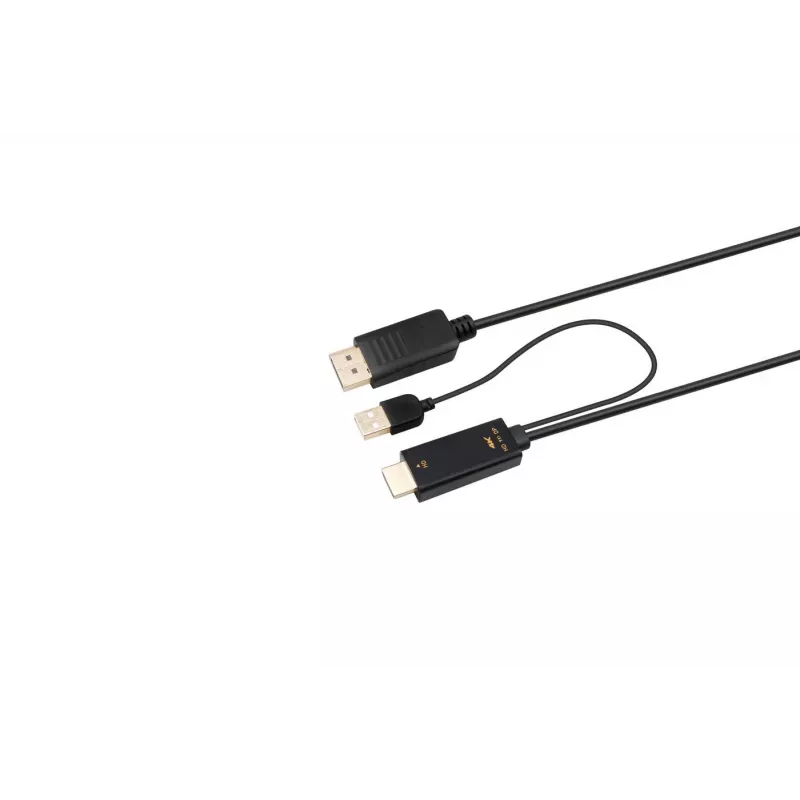

The Microconnect HDMI-DP-CON3 is a 3 m video cable adapter that converts an HDMI Type A (Standard) signal to DisplayPort, supporting video resolutions up to 4K (4096x2160@60Hz). The adapter includes an additional USB Type A connector that can be used to supply extra power when required. The cable is black, RoHS-compliant, has a diameter of 5.5 mm and weighs approximately 52 g.

Advantages

This HDMI to DisplayPort converter cable enables direct connection between HDMI source devices and DisplayPort displays without additional converters. It supports high-resolution 4K video at 60 Hz for clear image reproduction. The integrated USB Type A connector offers optional supplemental power to improve signal stability in situations where the HDMI port provides limited power. The 3 m length and compact construction provide flexibility for different installation layouts.

Suitable for

• Connecting a laptop, media player or console with HDMI output to a monitor or projector with DisplayPort input
• Workstations and meeting rooms requiring a single-cable 4K video link
• Setups where the HDMI port may need supplemental power via USB Type A

Key specifications

• Cable length: 3 m
• Connector 1: HDMI Type A (Standard)
• Connector 2: DisplayPort
• Maximum resolution: 4K (4096x2160@60Hz)
• Cable diameter: 5.5 mm
• Weight: 0.052 kg
• Colour: Black
• RoHS compliance

How to use

Connect the HDMI Type A end to the HDMI output of your source device and the DisplayPort end to the DisplayPort input of the display. If the display does not receive a stable signal, plug the USB Type A connector into a USB port on the source device or a USB power adapter to provide additional power. After connections are made, select the appropriate input on the display and configure the source device's display output settings if necessary.

Recommendations

For best results, use the cable in a clean, dry environment and avoid sharp bends. If you experience signal issues at 4K@60Hz, try connecting the USB Type A power lead or testing with a shorter cable run or different HDMI source to isolate the cause.
