Microconnect MC-SFTP6A03Y cavo di rete giallo 3 m Cat6a S/FTP (S-STP)

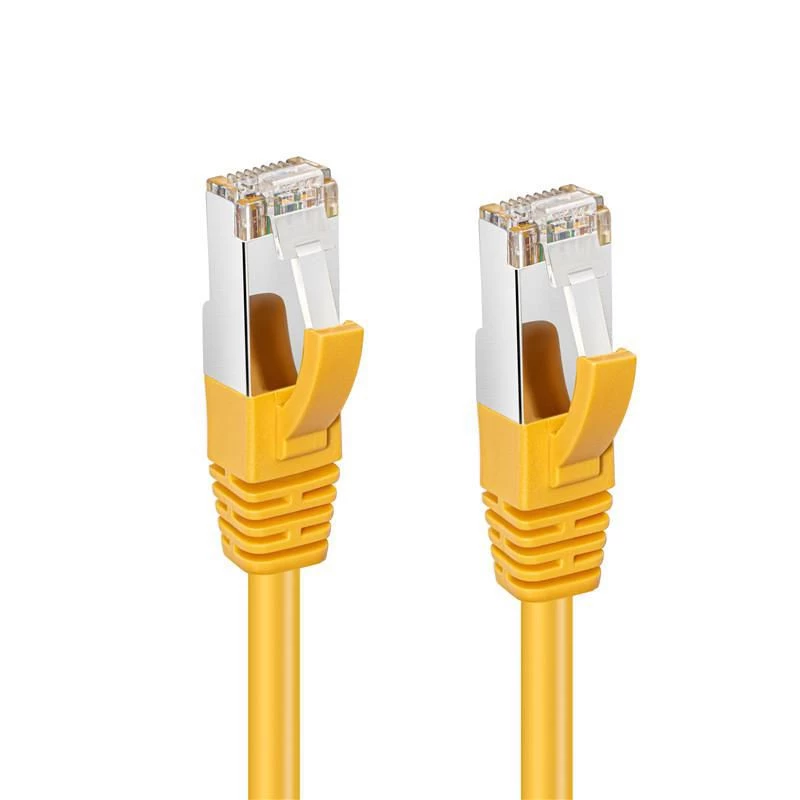

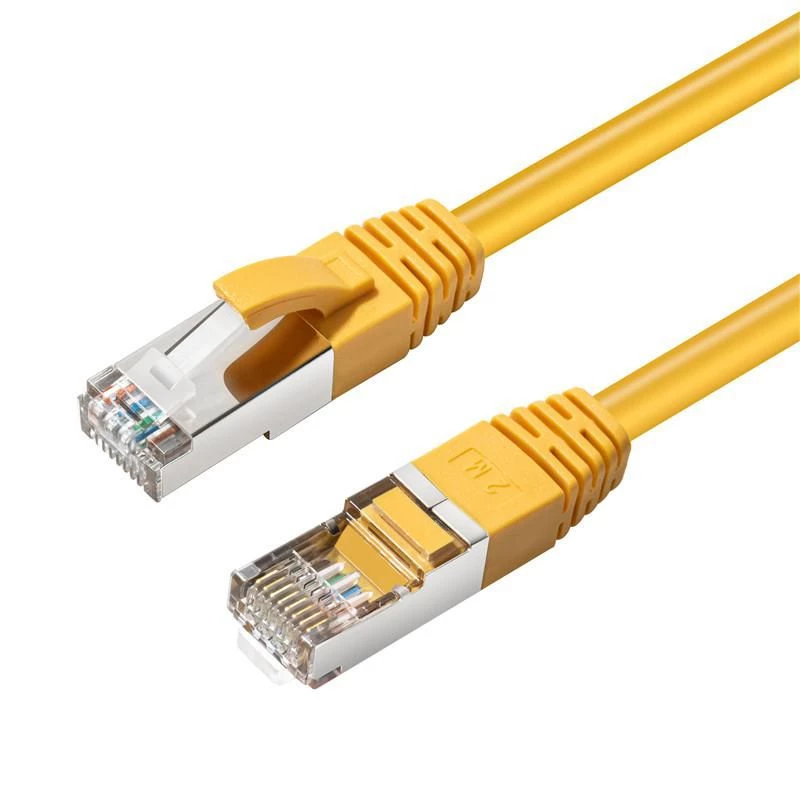

The MicroConnect MC-SFTP6A03Y is a 3 m Cat6a S/FTP patch cable with gold-plated RJ45 connectors and a yellow jacket. It is designed for high-speed networking, supporting up to 10 Gbit/s and bandwidths to 500 MHz. The cable includes 50µ" gold contacts for improved connection quality, latch protection on the plug to reduce the risk of clip breakage, and length markings on the boot for quick identification of cable length.

Advantages

The S/FTP shielding provides enhanced protection against electromagnetic interference and crosstalk, while the Cat6a specification ensures reliable 10 Gbit/s performance. Gold-plated RJ45 contacts improve conductivity and corrosion resistance. Integrated latch protection reduces the chance of accidental damage to the connector clip, and meter markings on the boot simplify installation and cable management.

Suitable for

• 10 Gbit/s LAN connections
• High-bandwidth applications such as streaming, backup and virtualization
• Server rooms, data centers and office networks
• Structured cabling installations requiring S/FTP shielding

Key specifications

• Standard: Cat6a
• Shielding: S/FTP
• Length: 3 m
• Maximum data rate: 10 000 Mbit/s
• Bandwidth: up to 500 MHz
• Connectors: RJ-45 — gold-plated, 50µ" contacts
• Color: Yellow
• Weight: 0.05 kg

How to use

Connect one RJ45 end to your network device (switch, router or network card) and the other end to the target device. Ensure connectors are fully inserted until the latch clicks. Route the cable to avoid sharp bends and sources of strong electromagnetic interference. Use the meter marking on the boot to verify the cable length during installation.

Recommendations

For optimal performance, avoid kinking the cable and maintain bend radii recommended for Cat6a cables. Keep the cable away from high-power electrical cabling and large motors to minimise interference. For permanent installations, secure the cable with appropriate clips or cable management accessories.
