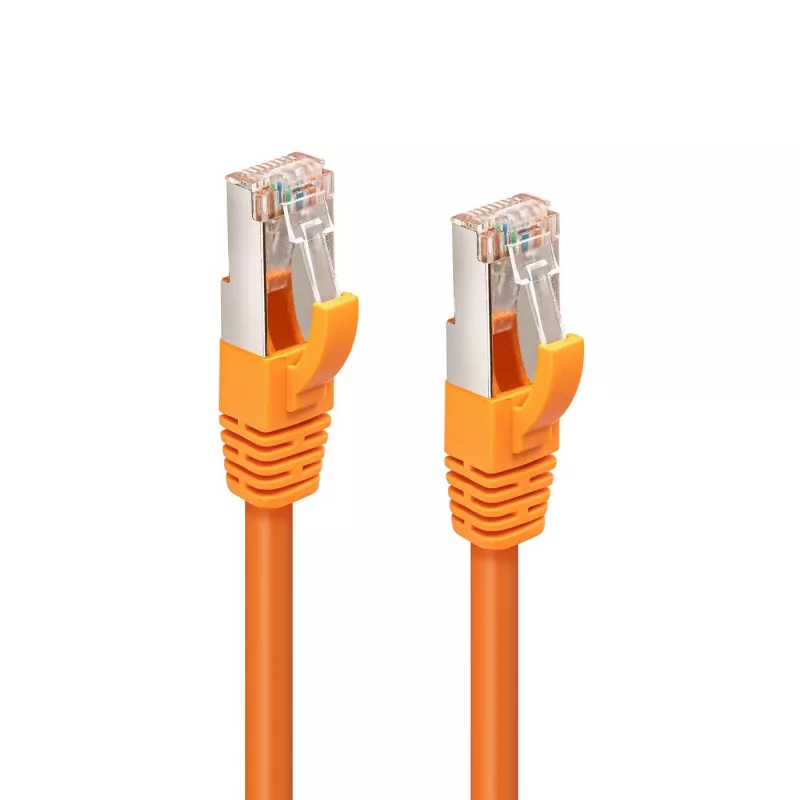

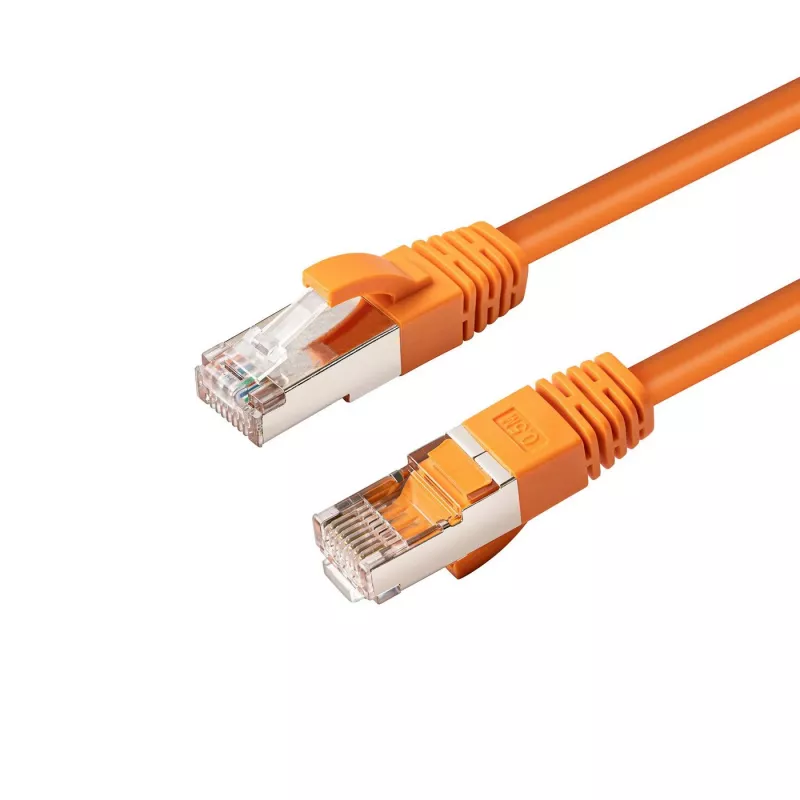

Microconnect MC-SFTP6A05O Cavo di rete arancione 5 m Cat6a S/FTP (S-STP)

The MicroConnect CAT6a Patch Cable (MC-SFTP6A05O) is a 5 m S/FTP RJ‑45 network cable designed for high-speed data transfer up to 10000 Mbit/s and support for 10Gbit networks with bandwidth up to 500 MHz. The cable uses gold‑plated RJ‑45 connectors and an orange jacket for easy identification. Meter markings on the boot help quickly determine cable length, and latch protection reduces the risk of clip breakage.

Advantages

This CAT6a cable provides S/FTP shielding to reduce electromagnetic interference and crosstalk, supporting stable 10Gbit performance. Gold‑plated RJ‑45 connectors improve conductivity and corrosion resistance. The 50µ" RJ‑45 contacts offer reliable contact quality, while the orange color and meter markings simplify installation and cable management. A reinforced latch protector helps prevent accidental damage to the connector clip.

Suitable for

• 10Gbit LAN and data center connections
• High‑bandwidth applications (up to 500 MHz)
• Server racks and network cabinets
• Office and home networking where visible cable identification is needed

Key specifications

• Model: MicroConnect MC‑SFTP6A05O
• Length: 5 m
• Standard: Cat6a
• Maximum data rate: 10000 Mbit/s (10Gbit)
• Shielding: S/FTP
• Connectors: RJ‑45 to RJ‑45, gold‑plated contacts, 50µ" contacts
• Bandwidth: up to 500 MHz
• Color: Orange
• Weight: 0.1 kg
• MPN: MC‑SFTP6A05O, EAN: 5704174955481

How to use

Connect one RJ‑45 connector to the network port of your device and the other RJ‑45 connector to the switch, router or patch panel. Ensure the latch clicks into place for a secure connection. Route the cable to avoid sharp bends and protect it from heavy compression or heat sources. Use the meter markings on the boot to confirm the installed length when planning cable runs.

Recommendations

For optimal performance, use this CAT6a S/FTP cable in shielded environments and terminate both ends into compatible shielded network equipment. Avoid running the cable parallel to high‑voltage power lines to minimise interference and maintain the 10Gbit throughput.
