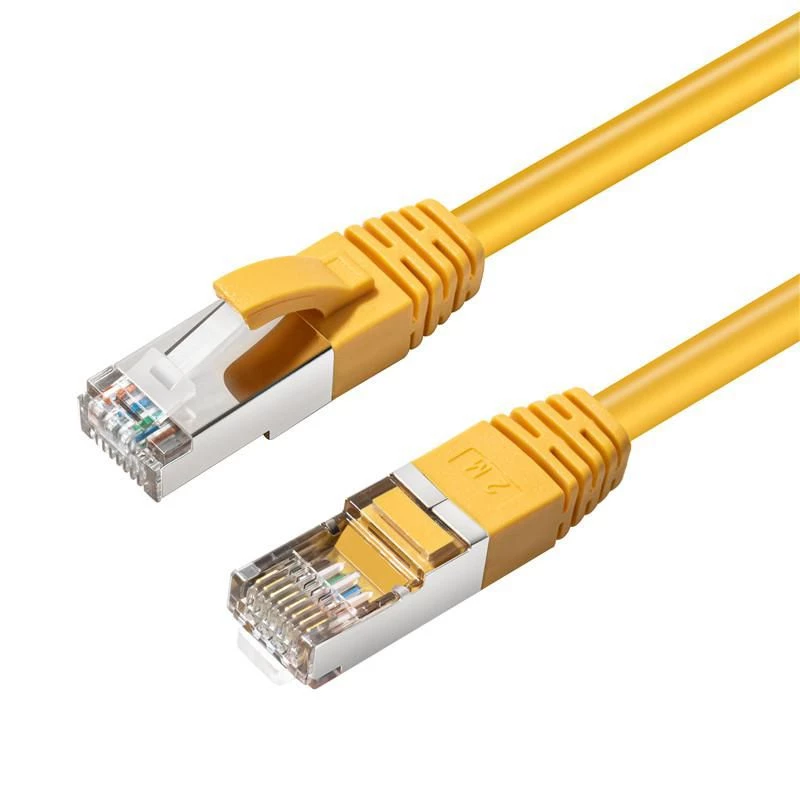

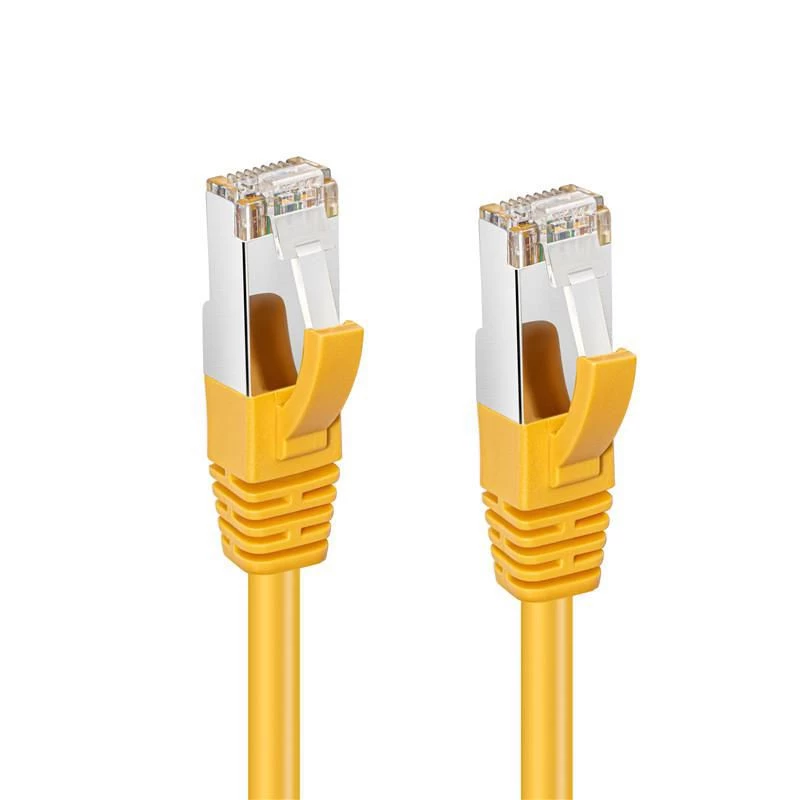

Microconnect MC-SFTP6A20Y Cavo di rete giallo 20 m Cat6a S/FTP (S-STP)

The MicroConnect MC-SFTP6A20Y is a 20 m Cat6a S/FTP networking cable designed for environments that require 10 Gbit/s performance and extended bandwidth. It features RJ-45 connectors with 50 µ" gold-plated contacts for stable signal transmission, a latch protection to reduce the risk of connector clip breakage, and meter markings on the boot to identify cable length quickly. The yellow jacket makes the cable easy to spot in structured cabling installations.

Advantages

This Cat6a S/FTP cable supports data rates up to 10000 Mbit/s and bandwidth up to 500 MHz, offering improved performance for high-speed networks. The 50 µ" gold-plated RJ-45 contacts provide corrosion resistance and reliable connectivity. The built-in latch protection helps prevent accidental damage to the connector clip, and the printed meter markings simplify installation and cable management.

Suitable for

• 10 Gigabit Ethernet networks
• Server rooms and data centres
• High-bandwidth applications such as video streaming and large file transfers
• Structured cabling and patch panels

Key specifications

• Standard: Cat6a
• Shielding: S/FTP (overall foil with individually shielded pairs)
• Connector: RJ-45 to RJ-45
• Contact plating: 50 µ" gold
• Length: 20 m
• Max data rate: 10000 Mbit/s
• Typical bandwidth: up to 500 MHz
• Colour: Yellow
• Weight: 0.516 kg

How to use

Connect one RJ-45 connector to your networking device (switch, router or NIC) and the other end to the corresponding port on the opposite device or patch panel. Ensure that the latch protection is in place and that connectors are fully inserted until they click. Route the cable to avoid sharp bends and interference sources; use appropriate cable management accessories to secure the cable.

Recommendations

For best performance, use this Cat6a S/FTP cable in shielded installation environments and maintain separation from mains power cables. Verify compatibility with 10G-capable network equipment and avoid excessive bending or tensile stress to preserve connector and shielding integrity.
