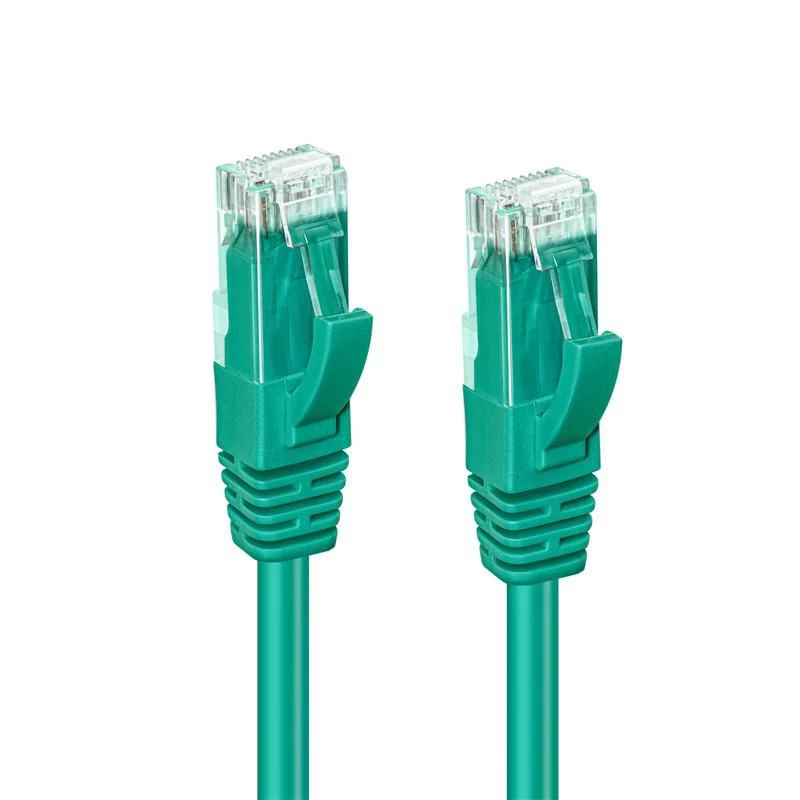

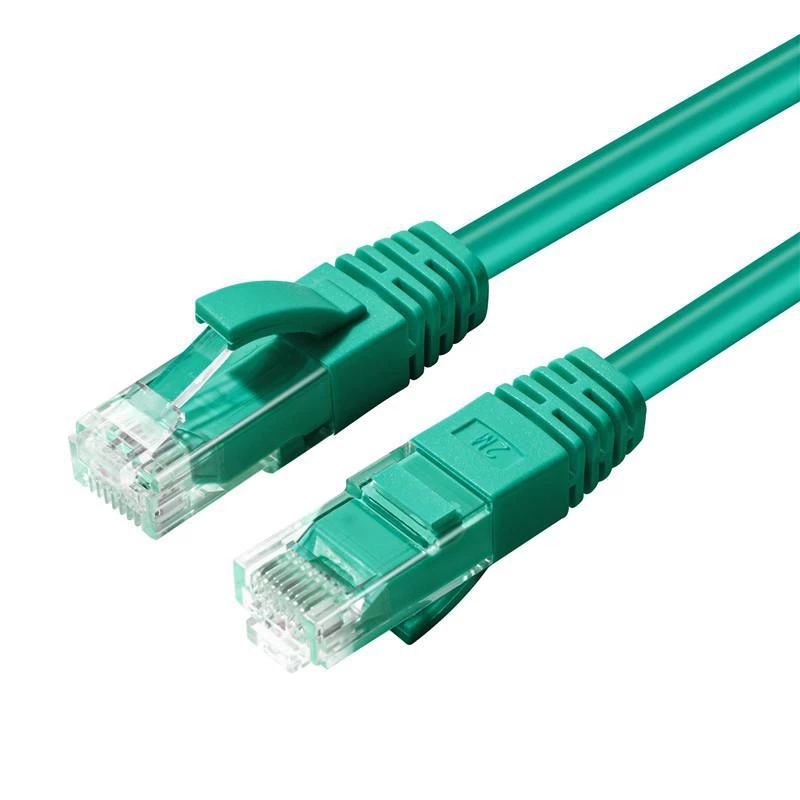

Microconnect MC-UTP6A075G Cavo di rete verde 7,5 m Cat6a U/UTP (UTP)

The MicroConnect CAT6a Patch Cable (MC-UTP6A075G) is a 7.5 m U/UTP network cable designed for 10Gbit Ethernet and bandwidths up to 500 MHz. It has RJ-45 connectors with 50µ" gold-plated contacts for reliable signal transfer, latch protection to reduce the risk of clip damage, and meter markings on the boot to quickly identify cable length. The cable comes in green and meets Cat6a performance requirements for demanding networking environments.

Advantages

This MicroConnect Cat6a cable provides support for 10Gbit/s connections and high-frequency transmission up to 500 MHz, ensuring stable high-speed data transfer. Gold-plated 50µ" RJ45 contacts improve contact reliability and corrosion resistance, while latch protection lowers the chance of accidental connector breakage. Meter markings on the boot make cable identification and cable management easier in complex installations.

Suitable for

• Server rooms and data centers requiring 10Gbit links
• High-performance workstation and office networks
• Audio-video installations and streaming requiring high bandwidth
• Structured cabling runs where cable length identification is helpful

Key specifications

• Model: MicroConnect MC-UTP6A075G
• Standard: Cat6a (U/UTP)
• Length: 7.5 m
• Connectors: RJ-45 to RJ-45
• Maximum data rate: up to 10000 Mbit/s (10Gbit/s)
• Bandwidth: up to 500 MHz
• Contacts: 50µ" gold-plated
• Colour: Green
• Weight: 0.2 kg

How to use

Connect one RJ-45 plug to your network device (switch, router, NIC) and the other to the corresponding port on the second device. Ensure connectors are fully inserted until the latch clicks to secure the connection. Use the meter markings on the boot to confirm cable length during installation. Avoid sharp bends and excessive tension; maintain recommended bend radius for Cat6a cables to preserve performance.

Recommendations

For optimal performance, keep the cable away from strong electromagnetic sources (large motors, fluorescent lighting ballast) and avoid running parallel to power cables over long distances. Use proper cable management tools and avoid kinking; replace any cable with visible damage to the jacket or connectors.
