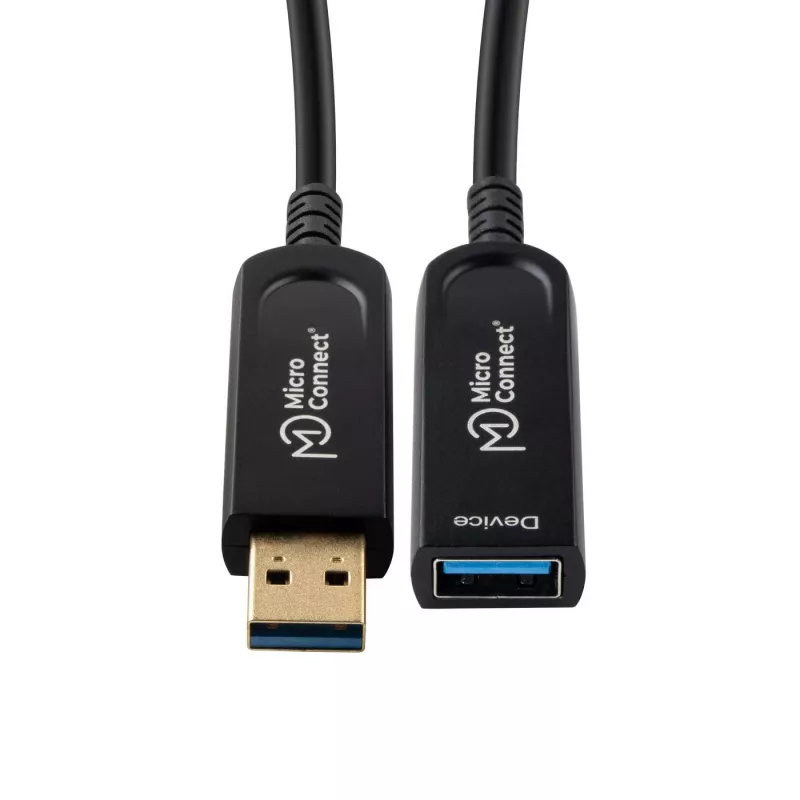

Microconnect USB3.0AAF20AOP Cavo USB USB 3.2 Gen 1 (3.1 Gen 1) 20 m USB A nero

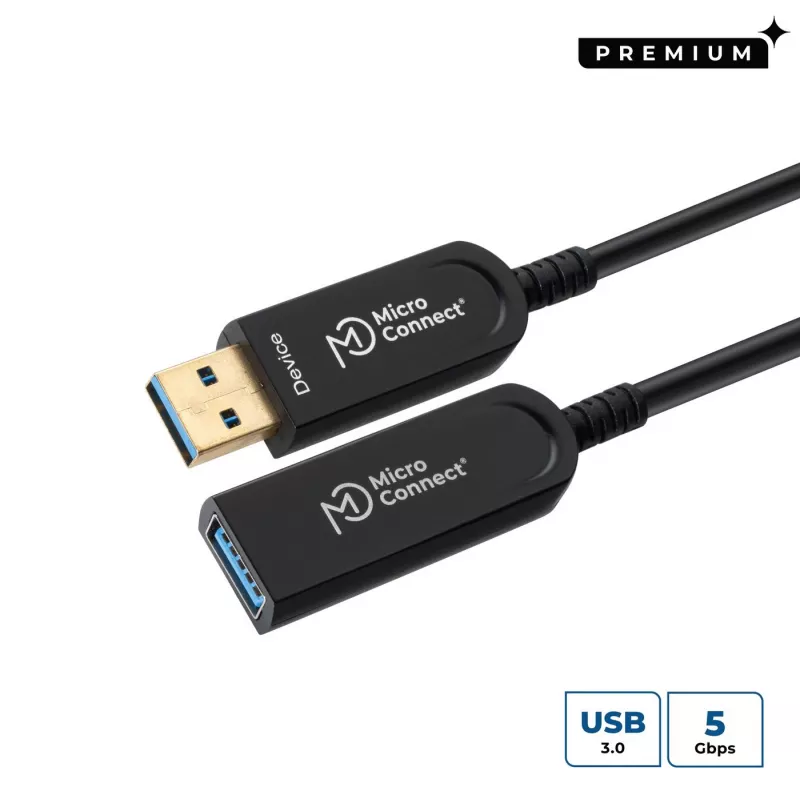

The MicroConnect USB3.0AAF20AOP is a 20 m active optical USB cable designed to extend USB 3.2 Gen 1 connections between hosts and devices. It supports data transfer rates up to 5 Gbit/s and features gold-plated connector contacts and a black exterior. This AOC cable is intended for long-reach USB links such as between computers and peripherals.

Advantages

The active optical design enables reliable signal transmission over longer distances than standard copper cables while keeping data transfer up to 5 Gbit/s (USB 3.2 Gen 1). Gold-plated contacts improve contact quality and resist corrosion. The 20 m length provides flexibility for installations where devices like printers, scanners or external drives must be placed far from the host.

Suitable for

• Extending USB connections to printers and scanners
• Linking external hard drives and storage devices over long distances
• Connecting USB peripherals in offices, server rooms or production environments

Key specifications

• Connector 1: USB A
• Connector 2: USB A
• USB version: USB 3.2 Gen 1 (3.1 Gen 1)
• Maximum data rate: 5 Gbit/s
• Cable length: 20 m
• Product colour: Black
• Weight: 0.938 kg

How to use

Connect one end of the MicroConnect USB3.0AAF20AOP to the host USB A port and the other end to the USB A port of the target device. Ensure both connected devices support USB 3.2 Gen 1 to achieve the maximum 5 Gbit/s transfer rate. Do not attempt to use the cable with USB 1.0 or 2.0 devices if full functionality is required, as it is not backwards compatible with those standards.

Recommendations

For stable operation, avoid tight bends and sharp kinks in the cable and keep the optical transceiver ends free from dust. Use in environments within the manufacturer's recommended temperature and humidity ranges and inspect connectors periodically for debris to maintain reliable high-speed transfers.
