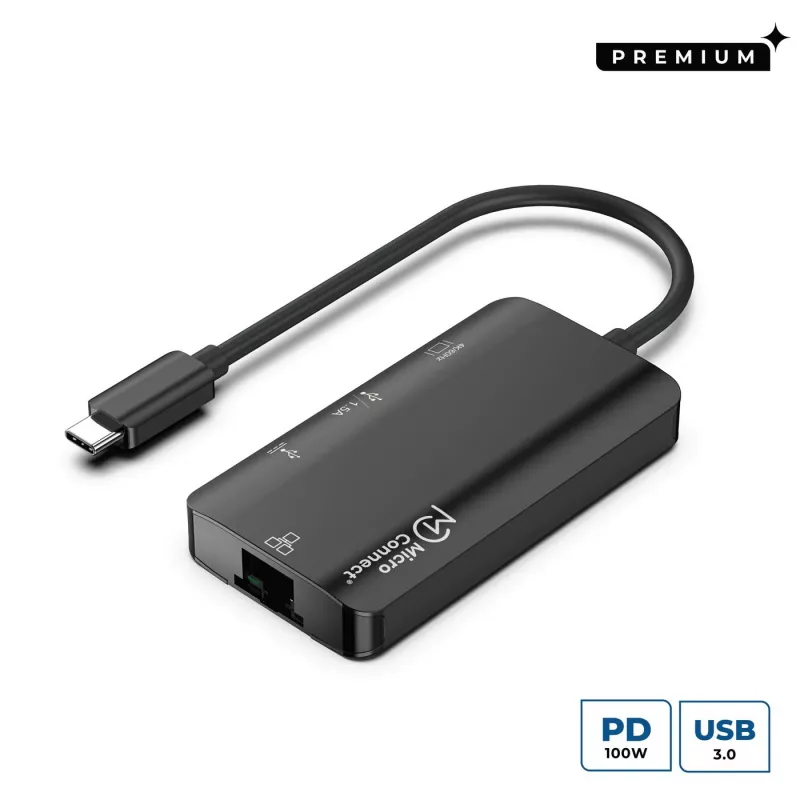

Microconnect USB3.1CCOM16 Dock per laptop/replicatore di porte con filo USB 3.2 Gen 1 (3.1 Gen 1) Type-C grigio

This USB-C 4-in-1 hub (Microconnect USB3.1CCOM16) expands a single Type-C/Thunderbolt 3 port to provide HDMI, USB-A, RJ45 Ethernet and a USB-C female port. It uses DP1.4 Alt Mode to deliver HDMI video up to 4K@60Hz while simultaneously transferring USB 3.1 data at up to 5 Gbit/s. The hub supports PD 3.0 passthrough charging up to 100 W when a PD adapter is connected and allows USB-C device data at up to 5 Gbit/s. The wired dock is compatible with Type-C hosts that support DisplayPort Alt Mode, including laptops, PCs and many mobile devices.

Advantages

The dock provides a compact way to add an HDMI output, a USB 3.2 Gen 1 Type-A port, a gigabit Ethernet connection and a USB-C female port for power delivery or device connection. It supports 4K@60Hz HDMI output while maintaining high-speed USB data transfer (up to 5 Gbit/s). PD 3.0 passthrough up to 100 W enables charging of host devices during use. The small, lightweight grey design is suitable for mobile use and quick workstation setup.

Suitable for

• Extending ports on laptops with a single USB-C/Thunderbolt 3 port
• Connecting an external monitor via HDMI at up to 4K@60Hz
• Connecting wired Ethernet for stable network access
• Attaching USB-A peripherals such as drives, mice or keyboards
• Power delivery to the host via USB-C PD up to 100 W

Key specifications

• Model: Microconnect USB3.1CCOM16
• Ports: 1 × HDMI (DP1.4 Alt Mode), 1 × USB 3.2 Gen 1 (Type-A), 1 × RJ45 Ethernet, 1 × USB-C female (PD/data)
• Video output: HDMI up to 4K@60Hz (DP1.4 Alt Mode)
• Data transfer: USB 3.2 Gen 1 / USB 3.1 Gen 1 up to 5 Gbit/s
• Power Delivery: PD 3.0 passthrough up to 100 W (when PD adapter connected)
• Connectivity: Wired Type-C (requires host with DP Alt Mode)
• Colour: Grey
• Weight: 0.04 kg
• Manufacturer part number (MPN): USB3.1CCOM16
• EAN: 5704174799528

How to use

Connect the dock's integrated USB-C cable to a Type-C/Thunderbolt 3 host that supports DisplayPort Alt Mode. For HDMI output, attach an HDMI cable from the hub to an external monitor; the hub supports up to 4K@60Hz. Plug USB-A peripherals into the USB 3.2 Gen 1 port for up to 5 Gbit/s data transfer. For wired network access, connect an Ethernet cable to the RJ45 port. To enable host charging, connect a PD-compatible USB-C power adapter to the hub's USB-C female port; the dock supports PD passthrough up to 100 W.

Recommendations

Use a PD adapter that supports the required wattage for your host device; verify that your laptop or mobile device supports DisplayPort Alt Mode over USB-C to enable HDMI output. For maximum video and data performance, use high-quality HDMI and Ethernet cables and ensure connected devices support the specified speeds.
