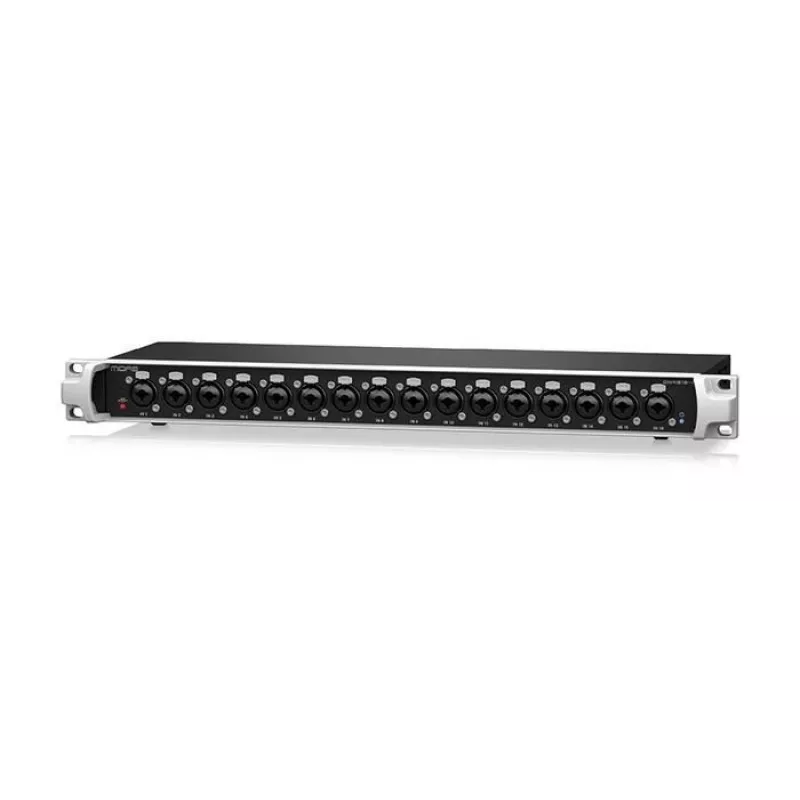

Midas DN4816-I modulo StageConnect con 16 ingressi analogici e doppie uscite Ultranet

The Midas DN4816-I is a compact StageConnect module that provides 16 analog inputs with dual Ultranet outputs, designed for seamless integration into the Midas StageConnect ecosystem and Behringer Ultranet devices. It offers high-quality 24-bit/48 kHz A/D conversion, ultra-low latency, and remote control capabilities, making it ideal for live sound, installed sound, and broadcast applications.

Advantages

High channel count in a compact form factor; dual Ultranet outputs for flexible routing; ultra-low latency StageConnect protocol; remote control via StageConnect; robust build quality.

Suitable for

• Live sound reinforcement
• Installed sound systems
• Broadcast and recording studios
• Stage boxes and I/O expansion

Key specifications

• Input Channels: 16
• Input Connectors: 16 x XLR (balanced mic/line inputs)
• Digital Audio Input: 1 x StageConnect (XLR 3-pin)
• Digital Audio Outputs: 2 x Ultranet (RJ45)
• Ultranet Channel Count: 16 channels per Ultranet output
• A/D Conversion: 24-bit / 48 kHz
• Frequency Response: 20 Hz - 20 kHz (+0/-1 dB)
• Dynamic Range: >100 dB
• Latency: Ultra-low (StageConnect protocol)
• Power Supply: External DC 12V
• Form Factor: Compact module
• Control: Remote control via StageConnect
• Compatibility: Midas StageConnect ecosystem, Behringer Ultranet devices
• Indicators: Power, StageConnect Link, Ultranet Link/Activity LEDs
• Mounting Options: Standalone, optional rackmount kit (e.g., DN48XX-RM)
• Signal Processing: Analog-to-Digital conversion for StageConnect, Digital-to-Digital conversion for Ultranet

Recommendations

For optimal performance, use with Midas StageConnect compatible consoles and Behringer Ultranet devices. The optional DN48XX-RM rackmount kit is recommended for permanent installations.
