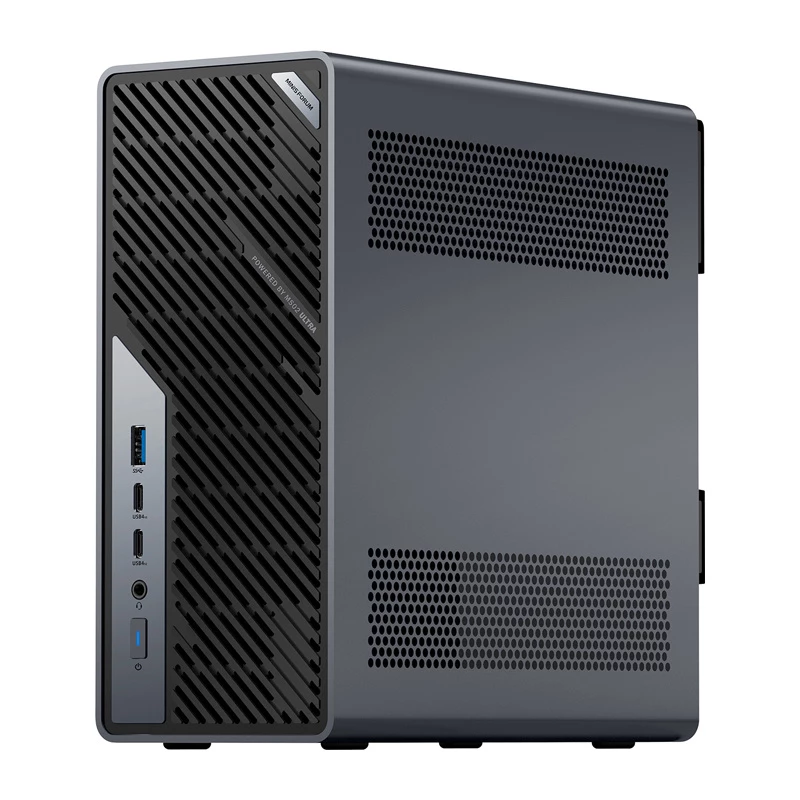

MINIS FORUM MS-02 Ultra Mini PC Intel Core Ultra 9 285HX Barebone

The MINIS FORUM MS-02 Ultra is a high-performance mini PC designed for professionals and enthusiasts who demand powerful computing in a compact form factor. Powered by the Intel Core Ultra 9 285HX processor with 24 cores and 32 threads, this barebone system offers exceptional processing capabilities for demanding tasks such as content creation, data analysis, and virtualization. With support for up to 96GB of DDR5 SO-DIMM memory and multiple storage options including two M.2 PCIe 4.0 slots and a U.2/SATA slot, the MS-02 Ultra provides flexibility and speed. Connectivity is comprehensive with 10 Gigabit Ethernet, Wi-Fi 7, Bluetooth 5.4, and a range of USB ports including USB4. The system also features an Oculink expansion slot for additional peripherals.

Advantages

The MS-02 Ultra stands out for its powerful Intel Core Ultra 9 processor, which delivers desktop-level performance in a mini PC form factor. The inclusion of 10 Gigabit Ethernet and Wi-Fi 7 ensures blazing-fast network speeds, while the dual HDMI 2.1 and USB4 outputs support high-resolution displays. The barebone configuration allows users to customize memory and storage according to their needs, making it a versatile solution for various applications.

Suitable for

• Content creators and video editors requiring high CPU performance
• IT professionals needing a compact workstation for virtualization or development
• Home office users seeking a powerful yet space-saving desktop
• Enthusiasts building a custom mini PC for gaming or media center

Key specifications

• Processor: Intel Core Ultra 9 285HX (24 cores, 32 threads)
• Memory: 2x DDR5 SO-DIMM slots, max 96GB (not included)
• Storage: 2x M.2 PCIe 4.0 2280, 1x U.2 PCIe 4.0 x4 (supports 2.5" SATA) (not included)
• Ethernet: 1x 10 Gigabit, 2x 2.5 Gigabit
• Wireless: Wi-Fi 7, Bluetooth 5.4
• Video Outputs: 2x HDMI 2.1, 1x USB4 (DisplayPort Alt Mode)
• USB Ports: 1x USB4 Type-C, 2x USB 3.2 Gen2 Type-A, 2x USB 3.2 Gen1 Type-A, 1x USB 2.0 Type-A
• Expansion: 1x Oculink (PCIe 4.0 x4)
• Power Supply: 300W External AC Adapter
• Operating System: Not included (Barebone)

Recommendations

For optimal performance, pair the MS-02 Ultra with high-speed DDR5 memory and a fast NVMe SSD. The barebone system is ideal for users who prefer to select their own components. Ensure adequate ventilation for the active dual fan cooling system.
