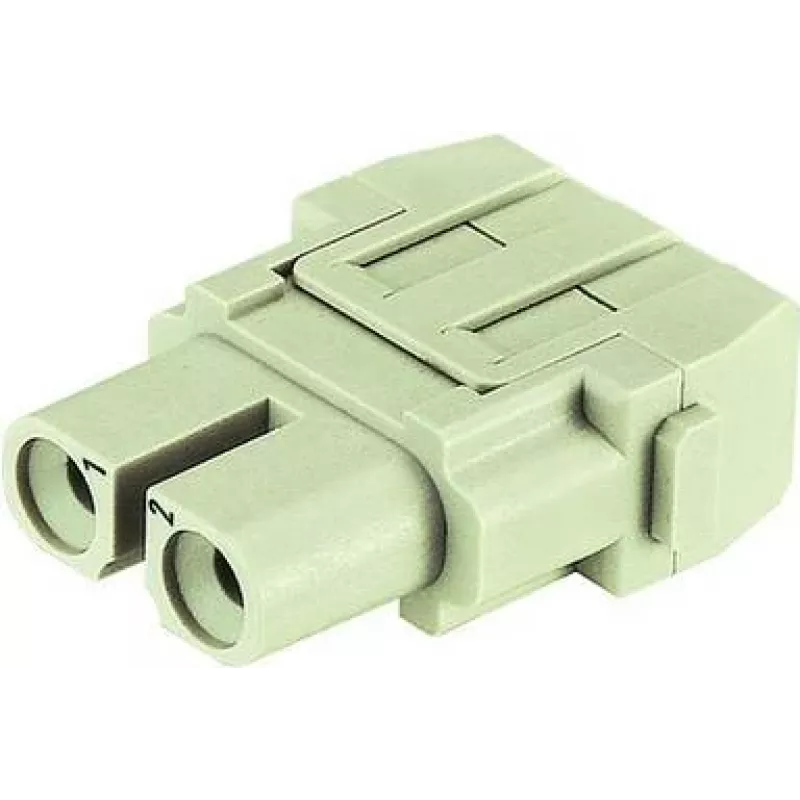

Modulo crimp femmina Harting 09140023102, rated 40 A, modulo connettore crimp femmina

The Harting female crimp module (type: female crimp connector module) is a compact electrical insert engineered for reliable wire-to-connector terminations with a rated current of 40 A. It is designed to fit into compatible connector housings and panel-mount assemblies used in industrial equipment and electronic systems. The module provides a stable female contact for mating male pins or plug assemblies and is intended for use where secure, crimped wire connections are required for power distribution and signal integrity.

Advantages

The module offers a secure crimp termination method that ensures low contact resistance and consistent electrical performance under typical industrial conditions. Its compact footprint allows integration into multi-position connector assemblies, while mechanical stability reduces the risk of contact loss during maintenance or vibration. The female contact geometry is optimized for repeated mating cycles and reliable engagement with corresponding male contacts.

Suitable for

• Power distribution in control cabinets and industrial automation equipment
• Replacement or assembly of multi-pin connector inserts
• Connections between cables and panel or mating connectors in machinery
• Applications requiring crimped wire terminations rated up to 40 A

Key specifications

• Rated current: 40 A
• Contact type: female crimp contact
• Mounting: insert module for compatible connector housings and panels
• Connection method: crimped wire termination
• Intended use: industrial and electronic equipment for power and signal connections

How to use

Strip the conductor to the appropriate length specified by the contact manufacturer, insert the conductor into the crimp barrel, and crimp using a suitable crimping tool matched to the contact size and wire gauge. After crimping, inspect the crimp joint for mechanical security and proper insulation clearance. Insert the crimped contact into the compatible connector housing or panel module until it locks into place, and verify correct engagement with the mating connector during assembly.

Recommendations

Use the module with wire sizes and crimp tools recommended for 40 A contacts, perform periodic inspections in high-vibration or high-temperature environments, and replace contacts that show signs of wear, corrosion, or poor mating to maintain reliable electrical performance.
