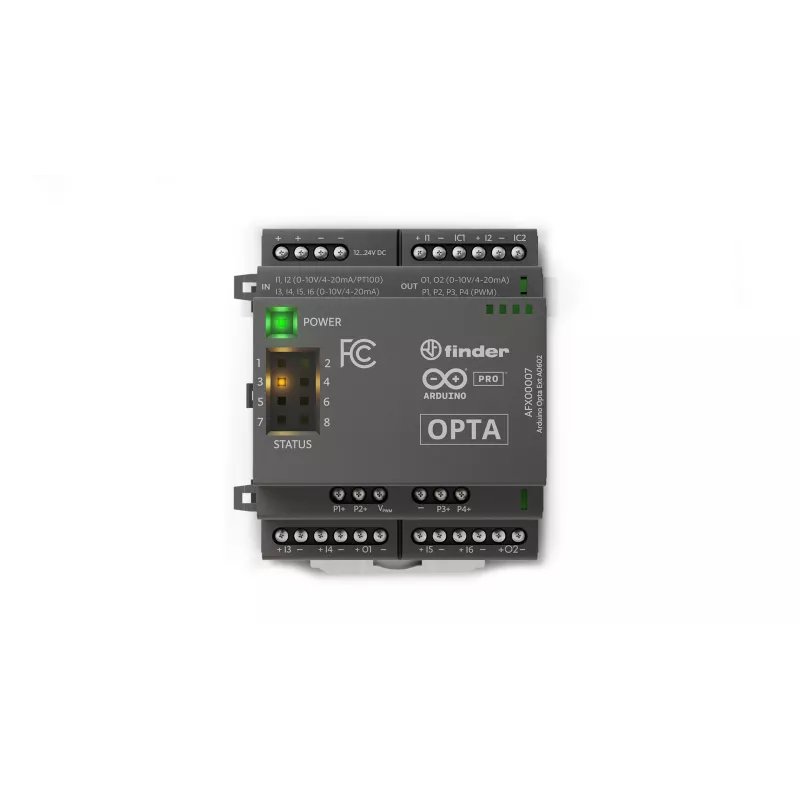

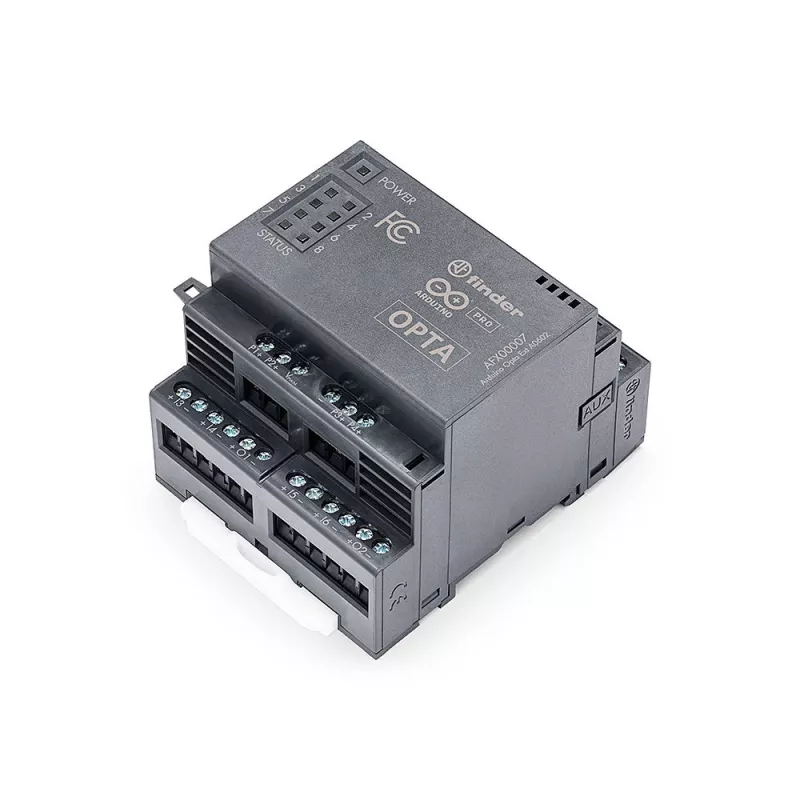

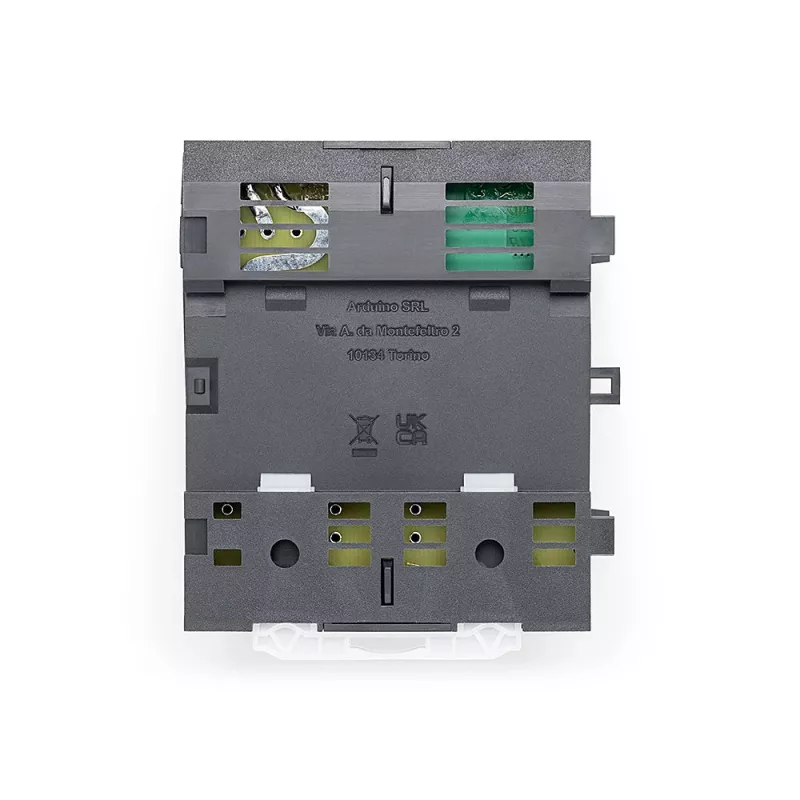

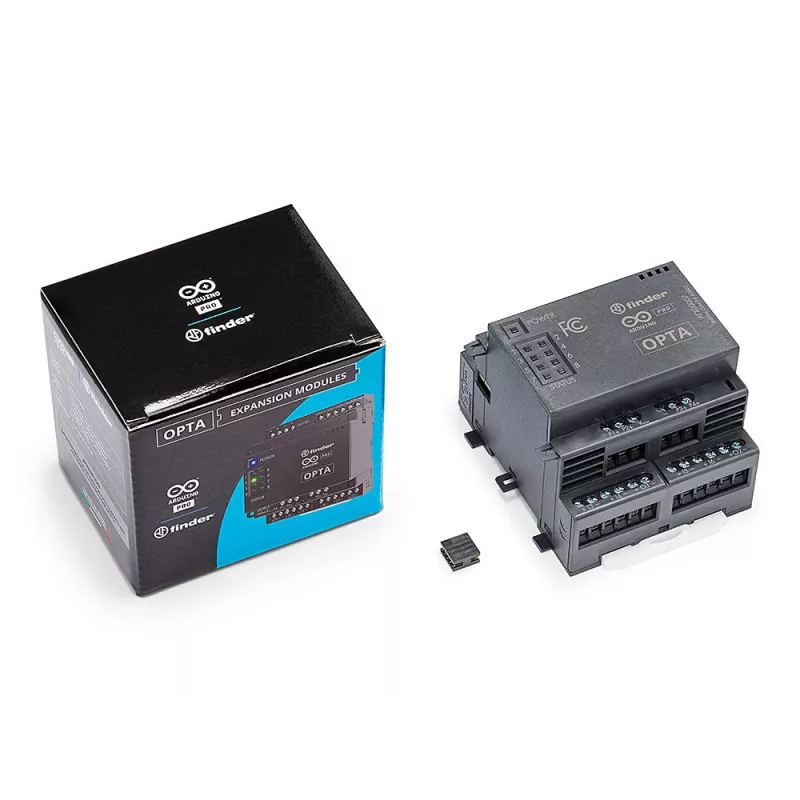

Modulo di espansione analogico Arduino Opta AFX00007 - 4 ingressi analogici configurabili, 2 uscite analogiche, 12-24 VDC, guida DIN

Expand your Arduino Opta PLC with the Arduino Opta Analog Expansion Module AFX00007, adding 4 configurable analog inputs and 2 configurable analog outputs with 16-bit resolution. This module supports both voltage (0-10V) and current (0-20mA) signals, making it versatile for industrial sensing and control applications.

Advantages

Galvanic isolation protects your system from electrical noise and ground loops, ensuring reliable measurements. Spring-clamp terminals allow fast, tool-free wiring, and the DIN rail mounting integrates seamlessly into control cabinets.

Suitable for

• Industrial automation and process control
• Monitoring sensors with 0-10V or 0-20mA outputs
• Controlling actuators, valves, or variable speed drives
• Expanding the I/O capabilities of Arduino Opta PLCs

Key specifications

• 4 analog inputs, configurable as voltage (0-10V) or current (0-20mA)
• 2 analog outputs, configurable as voltage (0-10V) or current (0-20mA)
• 16-bit resolution on all analog channels
• Power supply: 12-24 VDC
• Operating temperature: -20°C to +50°C
• Protection rating: IP20
• Mounting: DIN rail

Recommendations

Ideal for engineers and system integrators needing reliable analog I/O expansion for Arduino Opta PLCs in industrial environments.
