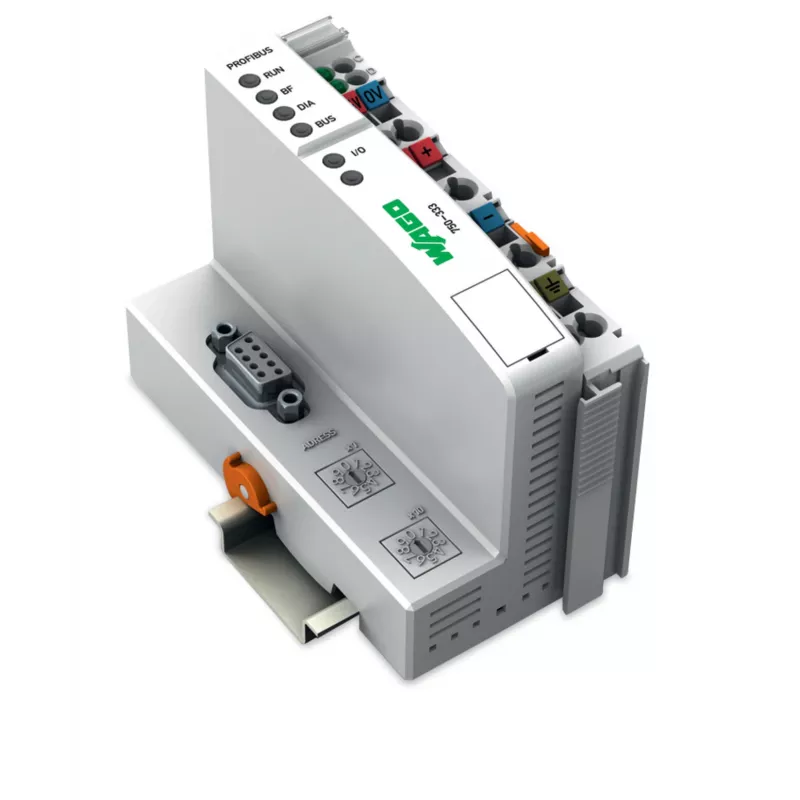

WAGO 750-333 accoppiatore di fieldbus PROFIBUS DP

The WAGO 750-333 is a PROFIBUS DP fieldbus coupler designed for seamless integration of WAGO I/O systems into PROFIBUS DP networks. As a slave device, it enables efficient data exchange between field devices and higher-level control systems, supporting baud rates from 9.6 kbit/s to 12 Mbit/s with automatic detection. This coupler is ideal for industrial automation applications requiring reliable and flexible communication.

Advantages

• Supports up to 64 I/O modules (standard) or 250 with bus extension, providing scalability for various system sizes.
• Auto-detecting baud rate simplifies setup and ensures compatibility with different network speeds.
• Compact DIN-rail mount design saves space in control cabinets.
• Robust isolation (500 V system/field) enhances system reliability and safety.

Suitable for

• Industrial automation and process control systems
• Building automation and infrastructure management
• Manufacturing and production line integration
• Remote I/O applications requiring PROFIBUS DP connectivity

Key specifications

• Fieldbus Protocol: PROFIBUS DP (Slave)
• Baud Rate: 9.6 kbit/s ... 12 Mbit/s (auto-detect)
• Max. I/O Modules: 64 (standard), 250 (with bus extension)
• Process Image Size: 244 words input / 244 words output
• System Voltage: 5 VDC (via data contacts)
• Field Supply Voltage: 24 VDC (-15% / +20%)
• Internal Current Consumption (5V): 100 mA
• Field Current Consumption (24V): 50 mA
• Isolation: 500 V (system/field)
• Configuration: GSD file
• Fieldbus Connection: D-sub 9-pin female
• Mounting Type: DIN-rail 35 mm
• Operating Temperature: 0 ... 55 °C
• Storage Temperature: -25 ... 85 °C
• Protection Rating: IP20
• Certifications: CE, UL, KEMA-EX, GL

Recommendations

For optimal performance, use with WAGO I/O modules and ensure proper grounding. Refer to the GSD file for configuration details. This coupler is a reliable choice for new installations or upgrades in PROFIBUS DP networks.
