Modulo Keystone DeLOCK 86323

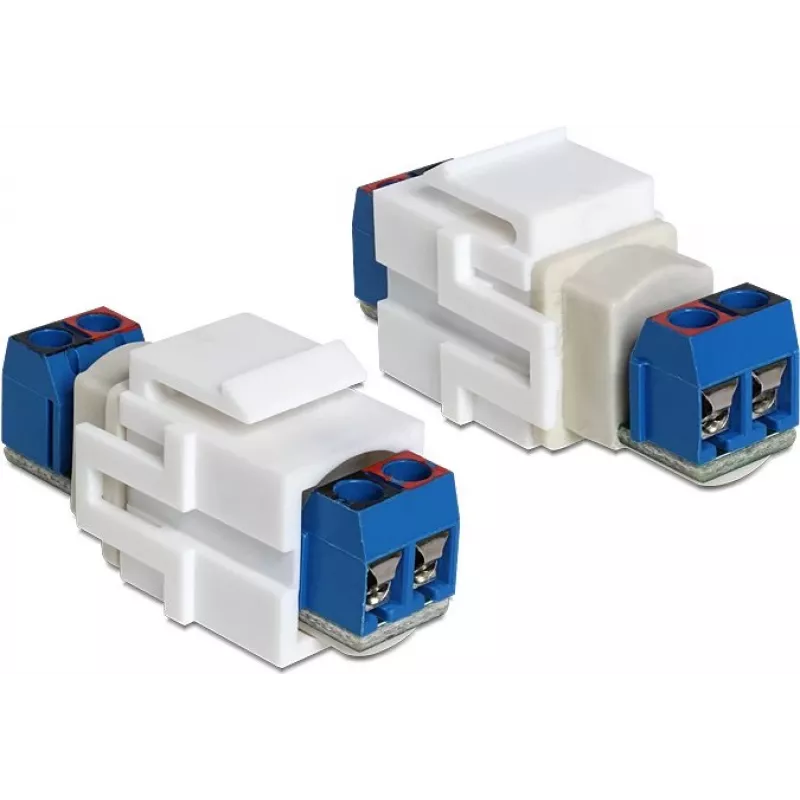

The DeLOCK 86323 keystone module is a compact, snap-in module designed to extend and terminate speaker or similar low-voltage cables in structured cabling installations. It has a blue-and-white housing and two terminal block connectors, with standardised dimensions that allow installation in keystone panels, faceplates or surface-mount boxes.

Advantages

The module offers a compact footprint (41.9 mm × 16.8 mm × 21.8 mm) and standardized form factor for easy snap-in mounting. Two terminal block connectors provide secure, tool-accessible cable terminations suitable for speaker wiring and other low-voltage connections. The colour-coded housing simplifies identification during installation and maintenance.

Suitable for

• Extending or terminating speaker cables
• Low-voltage audio and signal wiring in structured cabling systems
• Installation in keystone patch panels, faceplates and surface-mount boxes

Key specifications

• Brand: DELOCK
• Model: 86323
• EAN: 4043619863235
• Dimensions: 41.9 mm (W) × 16.8 mm (D) × 21.8 mm (H)
• Connectors: 2 × terminal block
• Colour: blue and white
• Category: Accessories for networks

How to use

Snap the keystone module into a compatible keystone opening in a patch panel, faceplate or surface-mount box. Strip the cable conductors, insert them into the terminal block contacts and secure them according to the terminal block type (screw or spring). Verify secure mechanical and electrical connection before applying signal or power.

Recommendations

Use the module for low-voltage audio or signal lines only; ensure compatibility of terminal block type with your cable gauge and secure mounting in a matching keystone opening to maintain reliable connections.
