Modulo Keystone DeLOCK 86343

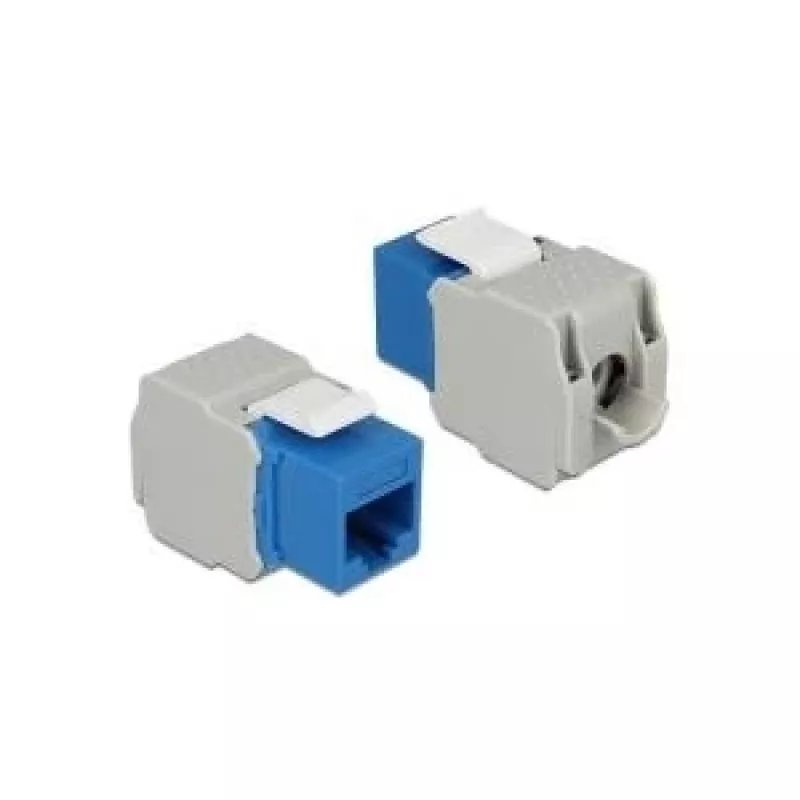

The DeLOCK 86343 keystone module provides a compact interface to connect twisted-pair cable to an RJ45 female port. Designed with standard keystone dimensions and a blue housing, it fits into keystone patch panels, faceplates or surface-mount boxes for straightforward integration into structured cabling systems.

Advantages

This keystone module combines an RJ45 female interface with an LSA connection, enabling a direct and secure termination of twisted-pair cables. Its standardised size allows snap-in mounting into common keystone apertures, simplifying installation and replacement. The blue housing provides clear visual identification within network panels.

Suitable for

• Ethernet network terminations in patch panels
• Wall plate or faceplate installations
• Surface-mount boxes and small enclosures

Key specifications

• Brand: DELOCK
• Model / MPN: 86343
• Connector: RJ45 female
• Rear termination: LSA (punch-down) for twisted-pair cable
• Form factor: Keystone module, snap-in mounting
• Color: Blue

How to use

Insert the keystone module into a compatible keystone opening until it snaps into place. Terminate the twisted-pair cable onto the LSA contacts using the appropriate punch-down tool, following standard wiring schemes (e.g., T568A or T568B). After termination, plug an RJ45 patch cable into the front female connector to connect network equipment.

Recommendations

Use a proper LSA/punch-down tool for reliable terminations and verify wiring continuity with a cable tester after installation. Select the correct colour-coding scheme and avoid over-tightening or bending the cable near the termination point to maintain signal integrity.
