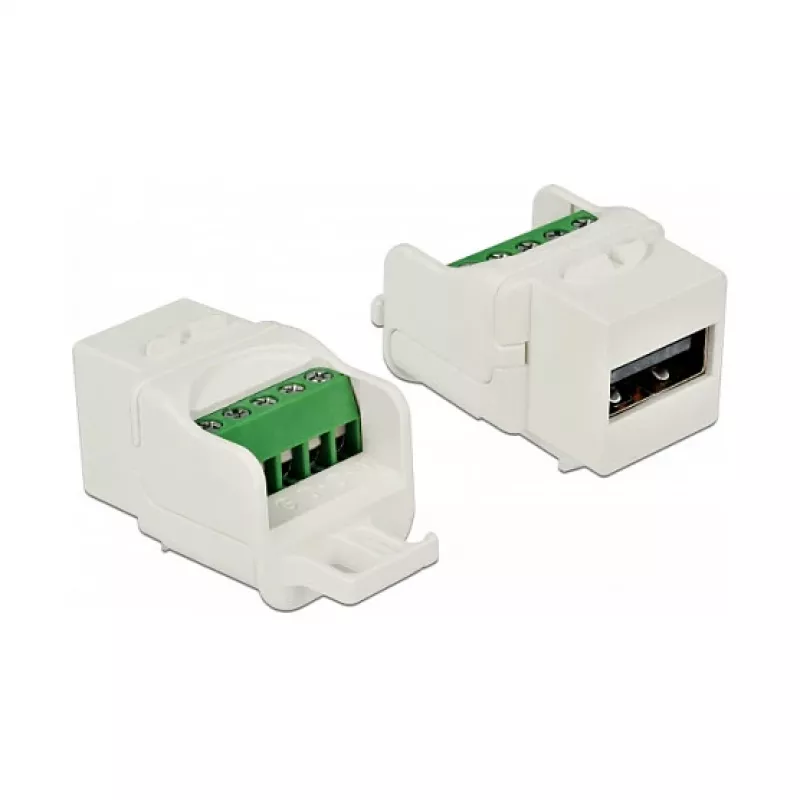

Modulo keystone DeLOCK 86376

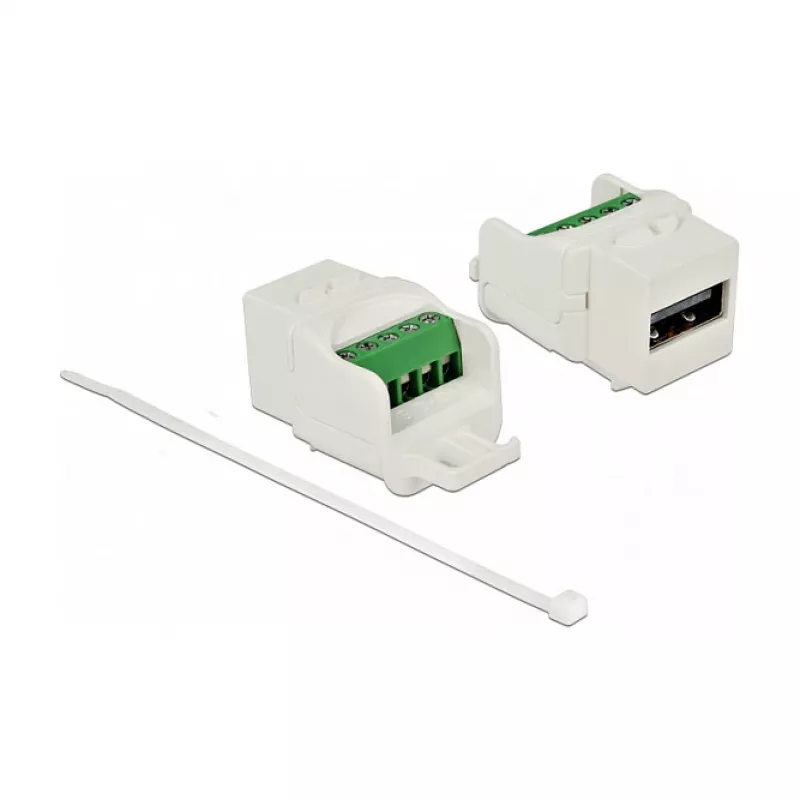

The DeLOCK 86376 keystone module provides a compact, flat USB extension solution in white finish. It features a USB A connector on one side and a terminal block on the other, enabling connection to pre-installed network or custom cabling. The module's standard keystone dimensions allow snap-in mounting in compatible keystone panels, face plates or surface-mount boxes.

Advantages

The module's slim profile and standardised size make installation in keystone panels and faceplates straightforward. A USB A connector combined with a terminal block offers flexibility for extending USB lines via existing wiring. The white colour provides a neutral appearance for visible installations.

Suitable for

• Extending a USB connection where direct cabling is not possible
• Integration into keystone patch panels and wall face plates
• Use with pre-installed or custom terminal wiring

Key specifications

• Brand: DELOCK
• Model: 86376
• Connector 1: USB A
• Connector 2: Terminal block
• Colour: White
• Dimensions (W×D×H): 20 mm × 36 mm × 22 mm
• Packaging: single piece

How to use

Insert the module into a compatible keystone opening until it snaps into place. Connect a USB A plug to the module's USB A receptacle. Attach the required wires to the terminal block according to the wiring scheme of the installation. Ensure secure mechanical mounting in the patch panel or face plate before applying power or data signals.

Recommendations

Use this module with compatible keystone frames and follow the wiring conventions of your installation. Verify connector orientation and terminal wiring before connecting devices. For permanent installations, ensure the module is firmly seated in the panel or face plate to avoid intermittent connections.
