Modulo Keystone DeLOCK DC 5,5 x 2,5 mm connettore femmina su connettore maschio bianco

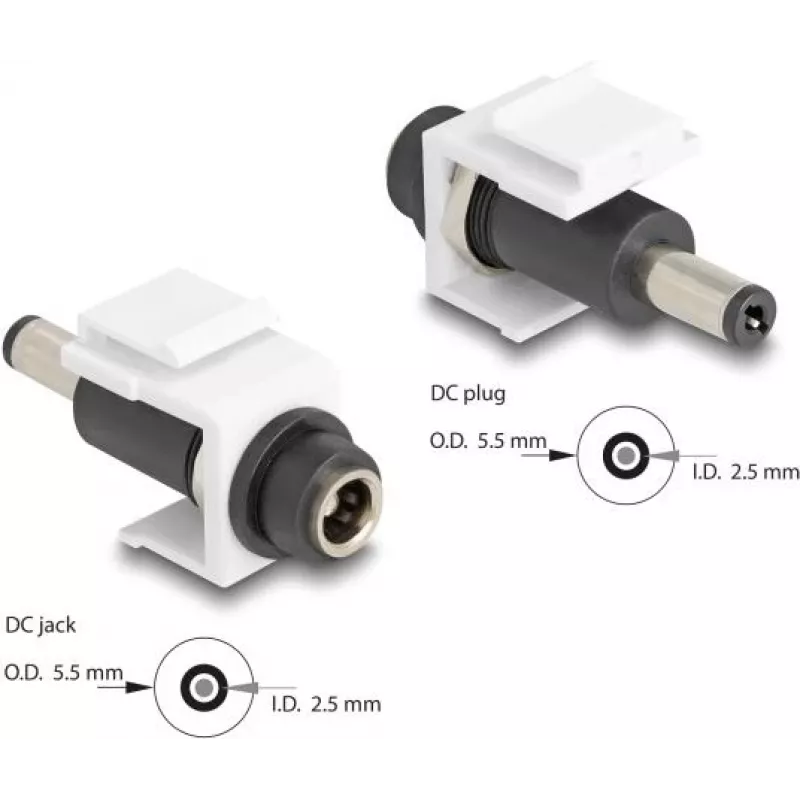

This DeLOCK Keystone Module DC 5.5 x 2.5 mm female to male in white is a flat, snap-in bulkhead connector designed for installation in housings, keystone panels, face plates or surface-mount boxes to provide power feed-through. One side features a DC 5.5 x 2.5 mm female connector and the other side a matching male connector. Its standardised dimensions enable simple mounting and reliable connection in various devices and enclosures.

Advantages

The module offers a compact, flat design for space-saving installation and a standardized keystone form factor for easy snap-in mounting. Both connectors use the common 5.5 x 2.5 mm DC format, ensuring compatibility with many power supplies and cords. The white finish provides a neutral appearance suitable for visible panels or faceplates.

Suitable for

• Supplying power through keystone patch panels and faceplates
• Surface-mount boxes and small enclosures
• Devices requiring a DC 5.5 x 2.5 mm feed-through

Key specifications

• Connector 1: DC 5.5 x 2.5 mm (female)
• Connector 2: DC 5.5 x 2.5 mm (male)
• Product colour: White
• Dimensions (W x D x H): 16.2 mm x 42.3 mm x 21.8 mm
• Brand: DELOCK, MPN: 84177, EAN: 4043619841776

How to use

Insert the keystone module into a compatible keystone opening until it snaps into place. Connect the external power plug to the female DC 5.5 x 2.5 mm side and attach the internal cable or device to the male side. Ensure secure seating of both connectors and route cables to avoid strain.

Recommendations

Verify that the voltage, current and polarity of the connected power supply match the device requirements before use to ensure correct function and avoid damage.
