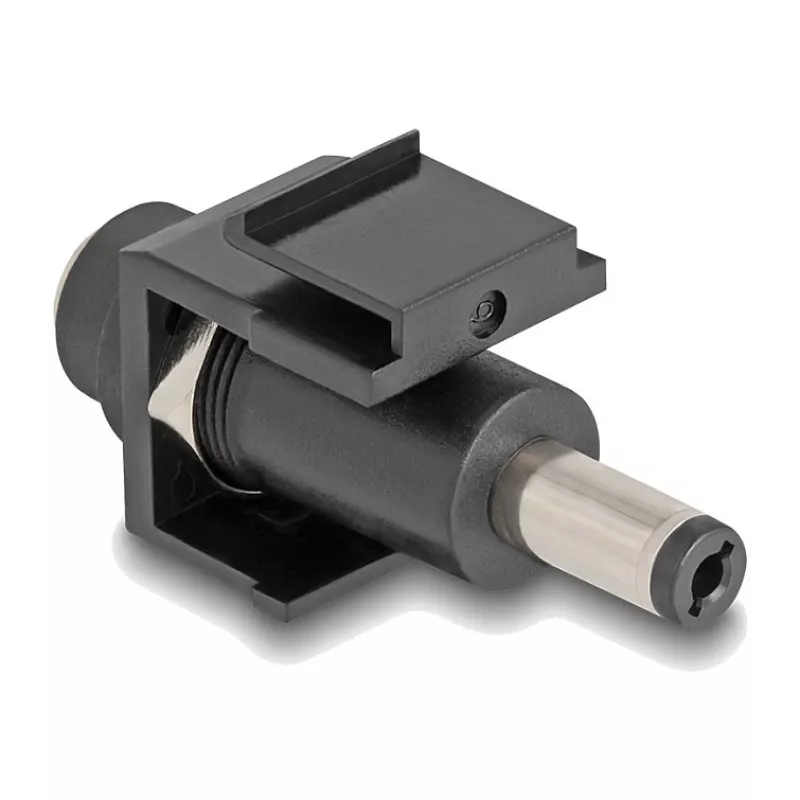

Modulo Keystone DeLOCK DC 5,5 x 2,5 mm connettore femmina su DC 5,5 x 2,1 mm connettore maschio nero

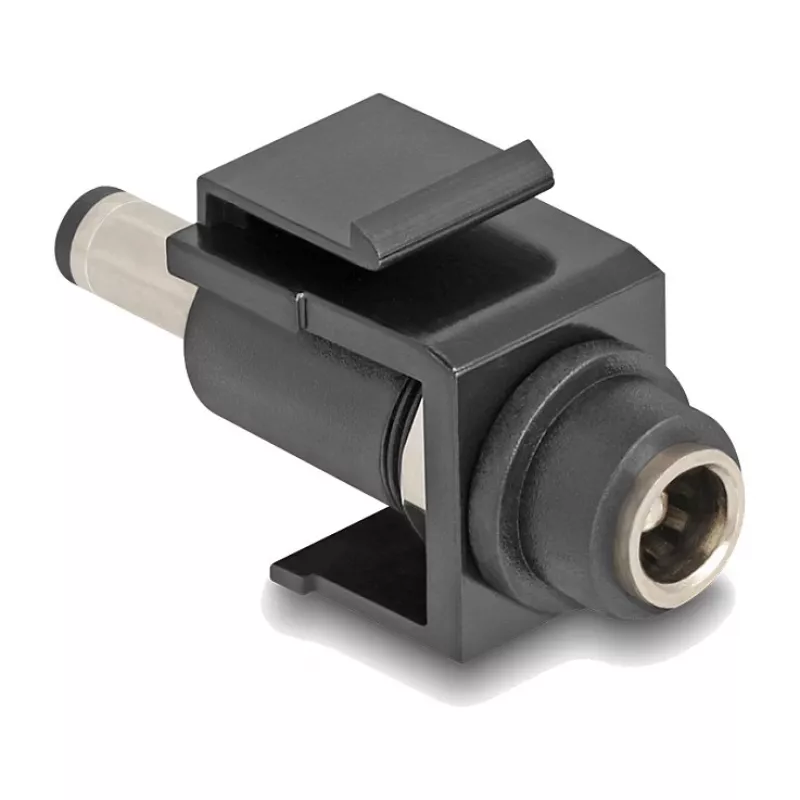

This DeLOCK Keystone Module DC 5.5 x 2.5 mm female to DC 5.5 x 2.1 mm male is a bulkhead connector designed for installation in housings, face plates or Keystone patch panels to route power through a device or enclosure. Its standardised keystone dimensions and flat construction allow snap-in mounting for a compact and tidy installation. Ensure the connected power supply matches the device's required voltage, current and polarity.

Advantages

The module provides a compact keystone-format solution to adapt between a DC 5.5 x 2.5 mm female and a DC 5.5 x 2.1 mm male connector, enabling simple panel or surface-mount installation. Its standardised size fits common Keystone cutouts and keeps cabling organised. The flat construction and small footprint make it suitable for space-limited applications.

Suitable for

• Panel or face plate mounting in devices and enclosures
• Keystone patch panels and surface-mount boxes
• Adapting between DC 5.5 x 2.5 mm female and DC 5.5 x 2.1 mm male connectors

Key specifications

• Connector 1: DC 5.5 x 2.5 mm (female)
• Connector 2: DC 5.5 x 2.1 mm (male)
• Product colour: Black
• Format: Keystone module, flat construction
• Dimensions (W x D x H): 16.2 mm x 42.3 mm x 21.8 mm
• Packaging: Polybag
• Brand: DELOCK, MPN: 84164, EAN: 4043619841646

How to use

Snap the keystone module into a compatible Keystone cutout in a patch panel, face plate or surface-mount box until it locks into place. Connect the device power cable to the DC 5.5 x 2.5 mm female side and the internal or external supply lead to the DC 5.5 x 2.1 mm male side as required. Verify mechanical retention after installation and route cables to avoid strain on the connectors.

Recommendations

Check that the voltage, current and polarity of the power supply match the requirements of the connected device before powering up to ensure correct function and avoid damage.
