Modulo keystone DeLOCK DC 5,5 x 2,5 mm femmina su maschio nero

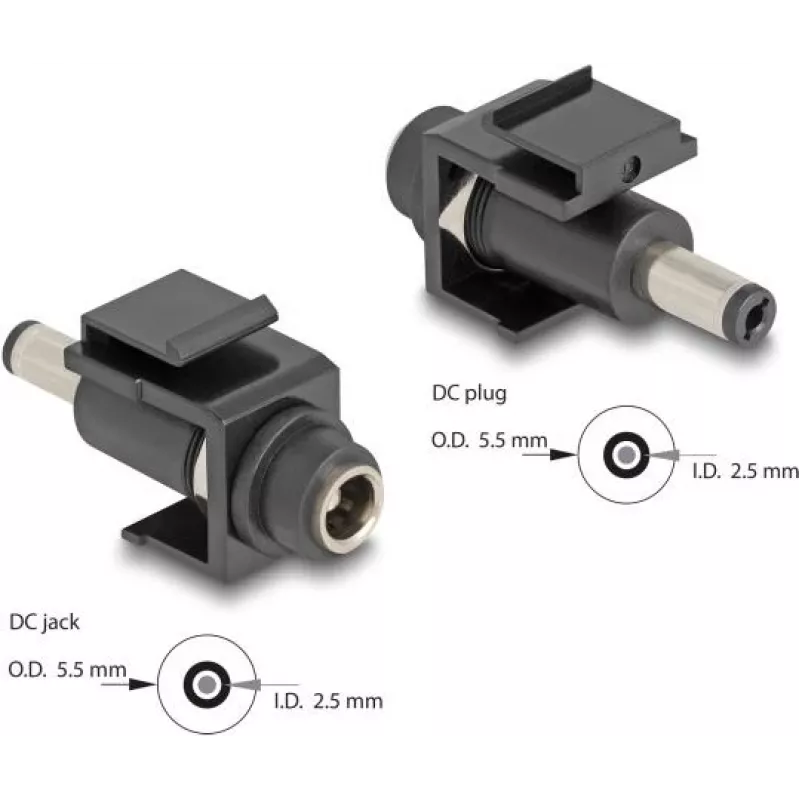

This DeLOCK Keystone Module is a DC female bulkhead with a 5.5 x 2.5 mm connection that provides a pass-through from a female panel socket to a male plug. It is intended for snap-in mounting in keystone-compatible panels, face plates or surface-mount boxes and is suitable for powering devices when installed in a housing or enclosure. The module has a flat black housing and compact dimensions (16.2 mm × 42.3 mm × 21.8 mm).

Advantages

The flat keystone design enables easy snap-in installation into standardized panels and face plates. The matching 5.5 x 2.5 mm female-to-male connection offers a straightforward pass-through for DC power. Its compact dimensions and black colour make it compatible with various installations where space and appearance matter.

Suitable for

• Keystone patch panels and face plates
• Surface-mount boxes and housings
• Devices requiring a 5.5 x 2.5 mm DC power pass-through

Key specifications

• Connector 1: DC 5.5 x 2.5 mm
• Connector 2: DC 5.5 x 2.5 mm
• Product colour: Black
• Dimensions (W × D × H): 16.2 mm × 42.3 mm × 21.8 mm
• Packaging: Polybag
• Brand: DELOCK, MPN: 84166, EAN: 4043619841660

How to use

Push the module into a keystone-compatible cutout until it snaps into place. Connect the incoming DC power plug to the male side and plug the device’s power lead into the female bulkhead on the other side. Ensure secure seating of both plugs and that the module is fixed in the panel or housing.

Recommendations

Verify that the voltage, current and polarity of the power supply match the requirements of the connected device before use to ensure correct function and avoid damage.
