Modulo Keystone EFB Elektronik EB479V2 piatto bianco

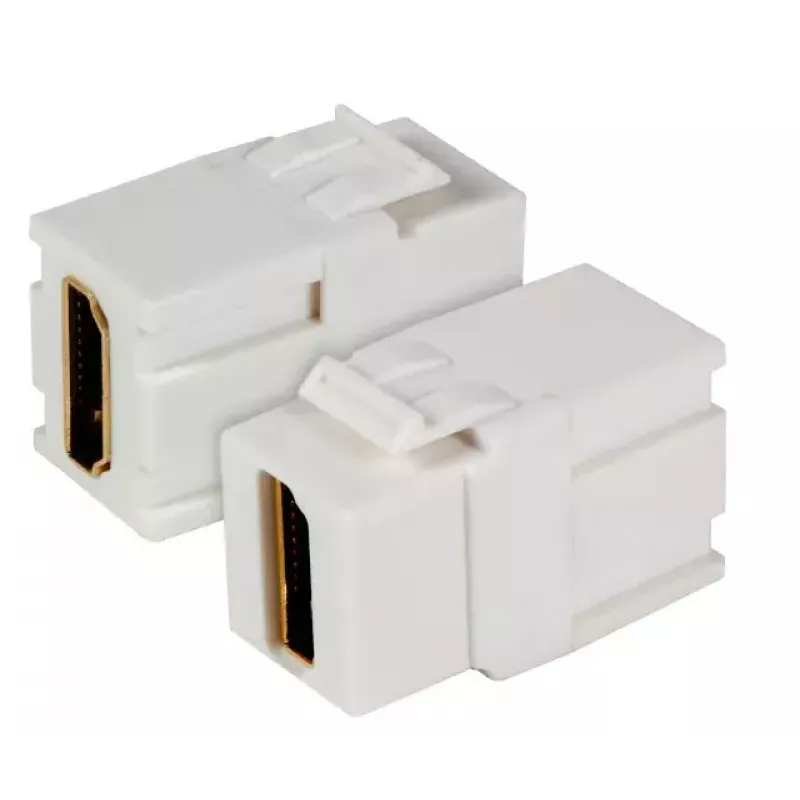

The EFB Elektronik EB479V2 Flat White keystone module provides a compact, flush-mounted HDMI connection for wall plates and patch panels. Designed to fit standard keystone openings, this flat module maintains a low profile while enabling transmission of high-definition audio and video signals. Its white finish blends with common wall plate colors and interior décors, offering a discreet solution for AV installations in residential and commercial environments.

Advantages

This flat keystone module features a standardized HDMI connector on both sides, ensuring direct pass-through of HDMI signals without additional adapters. The robust construction supports repeated insertion cycles and provides a secure connection that reduces signal loss. The slim profile minimizes protrusion from the wall plate, contributing to a tidy installation and reducing cable strain behind the mounting surface.

Suitable for

• Home theater HDMI connections behind TVs or receivers
• Conference room AV setups and presentation systems
• Built-in wall plate installations in media rooms and living areas
• Custom AV furniture and rack-mounted patch panels

Key specifications

• Connector type: HDMI to HDMI pass-through
• Form factor: Flat keystone module for standard wall plate openings
• Finish: White
• Compatibility: Designed for use with standard keystone wall plates and patch panels

How to use

Insert the module into a compatible keystone opening on a wall plate or patch panel until it snaps into place. Connect an HDMI cable from the source device to the rear of the module and a second HDMI cable from the front of the module to the display or receiver. Ensure cables are fully seated in the connector to maintain a stable signal path; avoid sharp bends near the connection to reduce stress on the cable and module.

Recommendations

For reliable performance, use high-quality HDMI cables rated for the required resolution and refresh rate. When installing in structured cabling systems, verify that the wall plate and mounting frame provide adequate support and clearance for the flat module. Periodically inspect connectors for dust or debris and clean with compressed air if necessary.
