Modulo keystone LogiLink NK4019

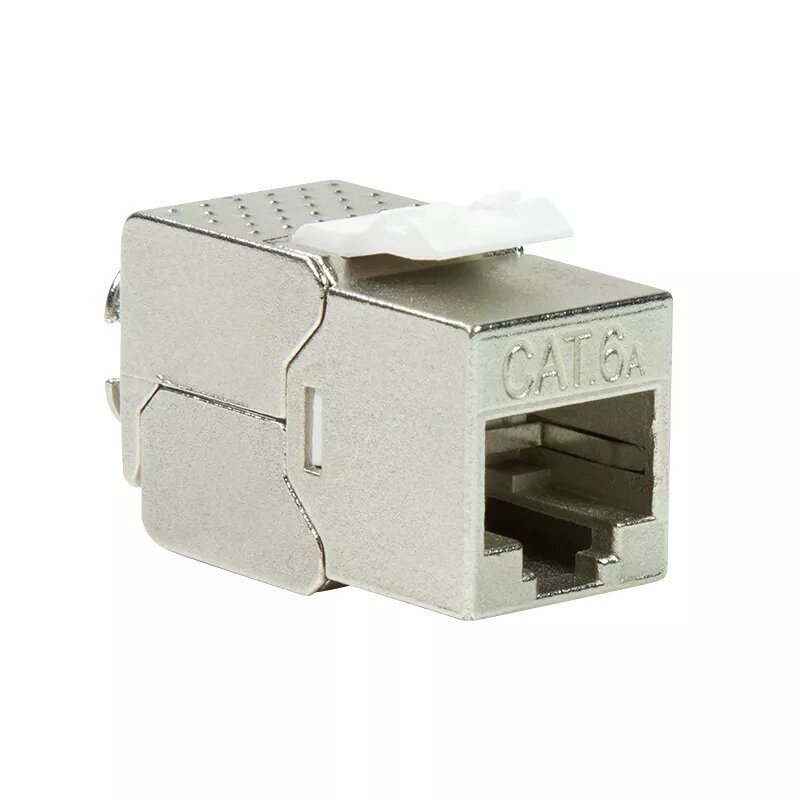

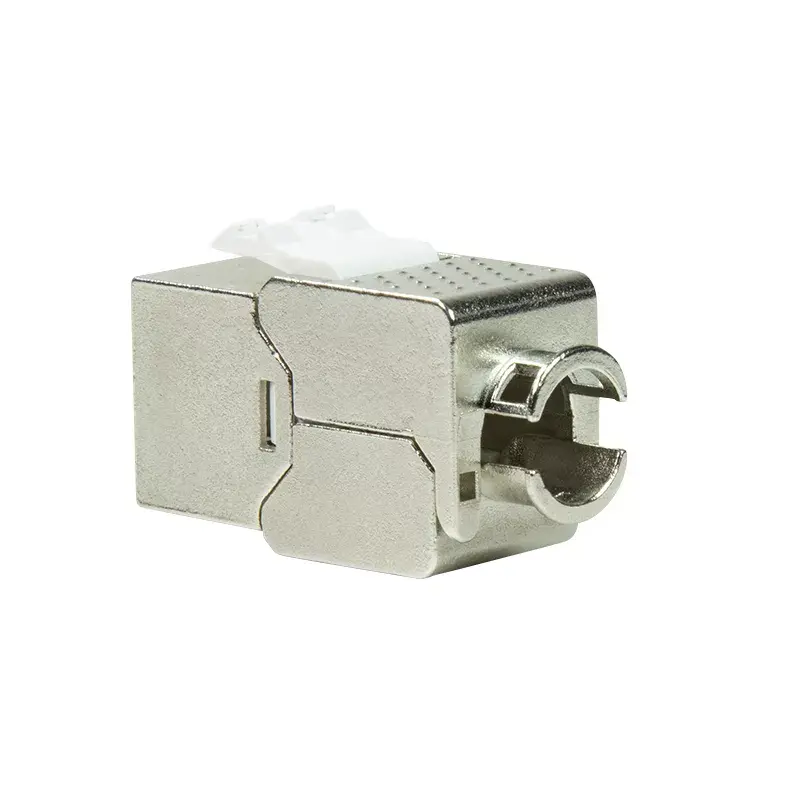

The LogiLink NK4019 Cat.6A keystone module is a slim, shielded RJ-45 jack designed for high-density patch panels and professional network installations. Its flat silver housing and compact dimensions (14.8 mm width, 34.5 mm depth, 19.1 mm height) make it suitable for 24‑port half units or 48‑port layouts with one unit height, while supporting Cat.6A transmission for up to 10 Gbps.

Advantages

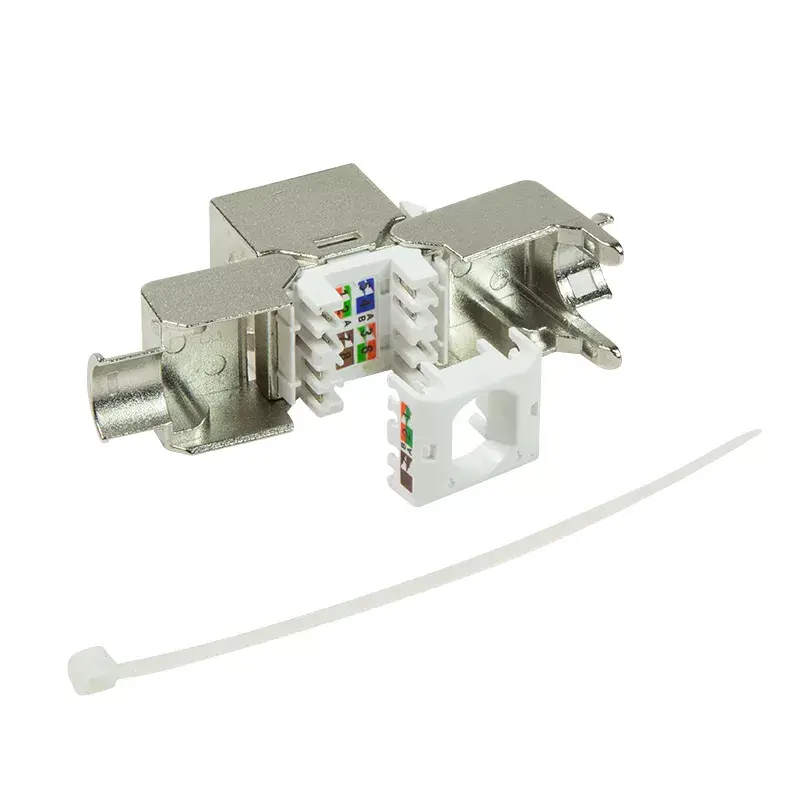

The keystone jack features a super-slim metalized design that saves space in racks and patch panels. It includes easy-to-read wire labels and supports tool-less termination with an IDC cap for faster installation. Shielding (STP) and compliance with industry transmission and safety standards provide reliable performance for high-speed networks.

Suitable for

• High-density 24‑port or 48‑port patch panels
• Cat.6A structured cabling for 10 Gbps Ethernet
• Professional network racks and data center installations
• Wall plates and keystone faceplates requiring shielded RJ-45 modules

Key specifications

• Product: LogiLink NK4019 Cat.6A keystone module (STP)
• Connector: RJ-45 (both ends)
• Dimensions: 14.8 mm (W) × 34.5 mm (D) × 19.1 mm (H)
• Supported standard: Cat.6A, up to 10 Gbps
• Wire gauge compatibility: AWG22–26 (tool-less IDC termination supported)
• Colour: Silver
• Weight: 0.02 kg (per piece)
• Package contents: 1 × keystone module

How to use

Insert the NK4019 into a compatible keystone opening in a patch panel or faceplate until it snaps into place. Terminate the network cable conductors following the colour-coded wiring labels on the module. For tool-less installation, use the IDC cap to press the conductors into the contacts; alternatively perform a standard punch-down with appropriate tools. Plug a shielded RJ-45 patch cable into the front connector to complete the network link.

Recommendations

For best shielding performance, ensure the patch panel and cabling system provide proper grounding. Use Cat.6A-rated cable and consider maintaining separation from power lines to preserve 10 Gbps transmission quality.
