Modulo patch panel DELOCK 90899 SC simplex acqua

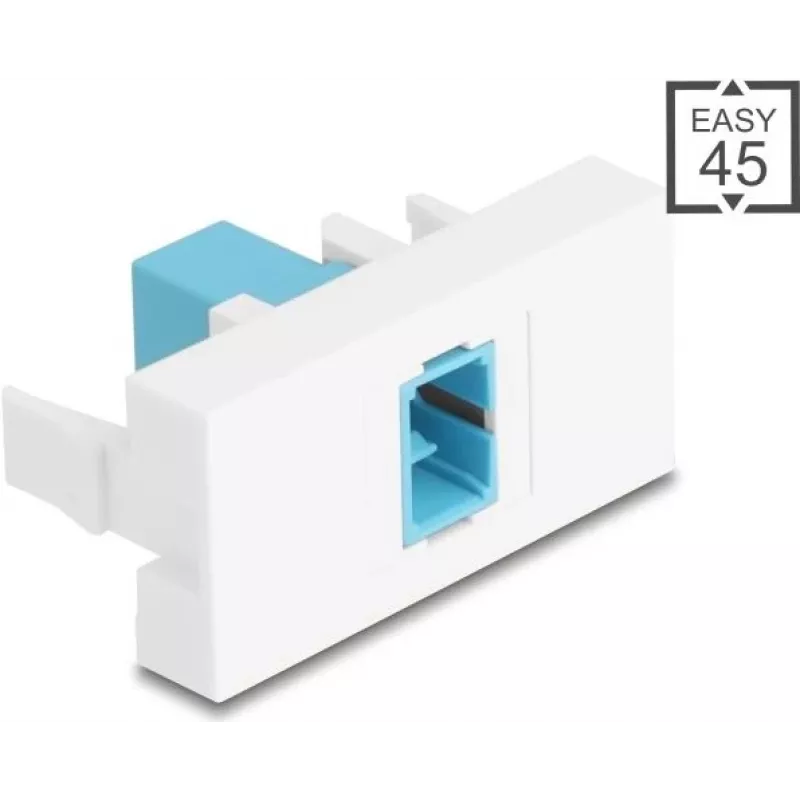

DELOCK 90899 SC Simplex aqua module for patch panels provides a single SC Simplex fiber optic connection in a compact insert designed for mounting into compatible patch panels. The module uses a standardized SC interface in aqua color to indicate multimode OM3/OM4 or manufacturer-designated fiber types, enabling simple port identification and orderly fiber routing within racks, telecommunication closets and data centers.

Advantages

The module offers a compact footprint that preserves patch panel space while providing a standardized SC Simplex connection. Its aqua-colored connector housing allows for easy visual identification of multimode fiber links. The insert is designed for straightforward installation into compatible patch panels and simple port labeling, facilitating cable management and reducing setup time for fiber patching tasks.

Suitable for

Key specifications

How to use

Insert the module into a compatible patch panel opening until it snaps or secures into place according to the panel's mounting design. Terminate or connect the fiber pigtail or patch cable with an SC Simplex connector to the module's port, observing standard fiber handling practices such as keeping connectors clean and avoiding sharp bends. Label the port as required for your rack and documentation standards to maintain clear identification of links.

Recommendations

Clean connector end-faces before mating, use dust caps when ports are unused, and follow multimode fiber bend-radius and routing guidelines. Verify compatibility of the aqua color with your multimode fiber type and ensure the patch panel supports the module form factor prior to installation.
