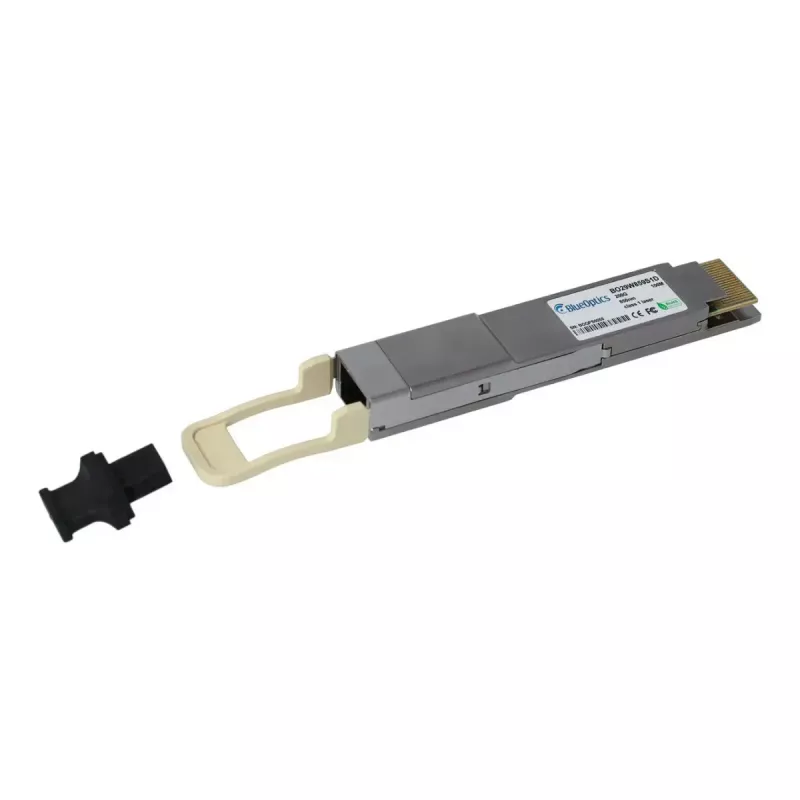

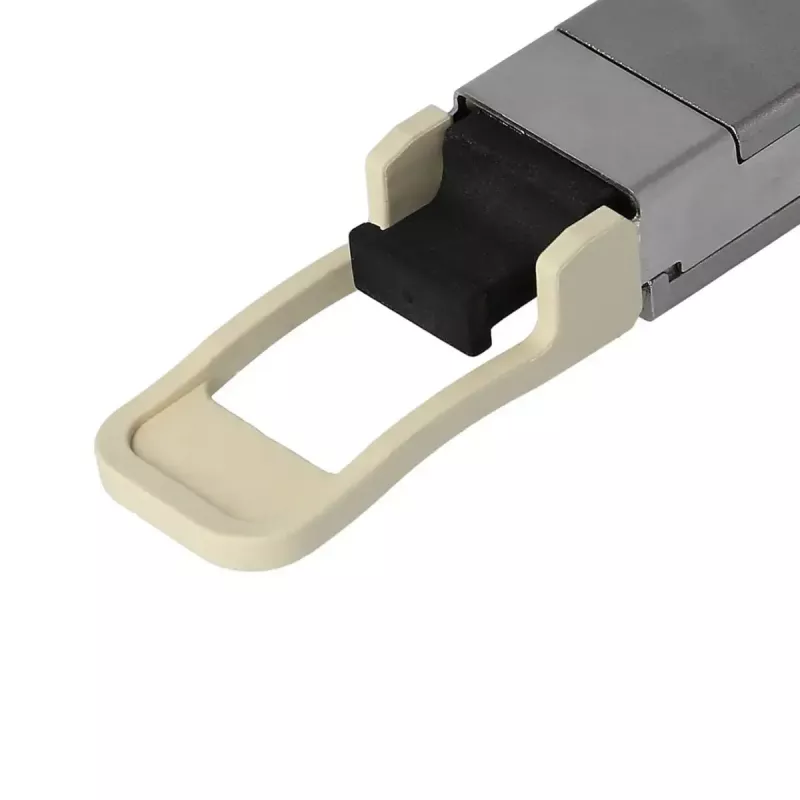

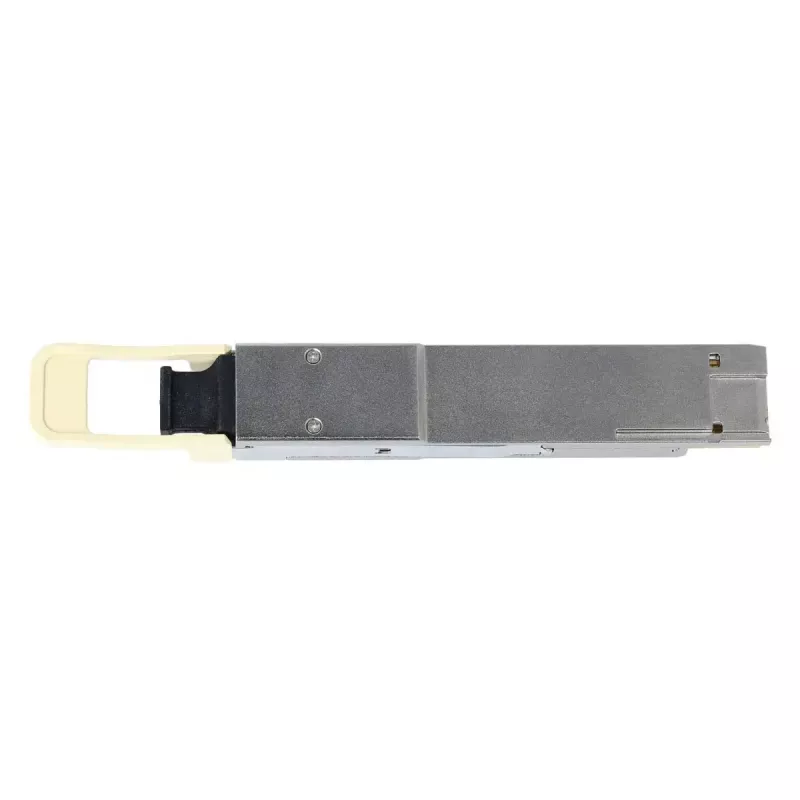

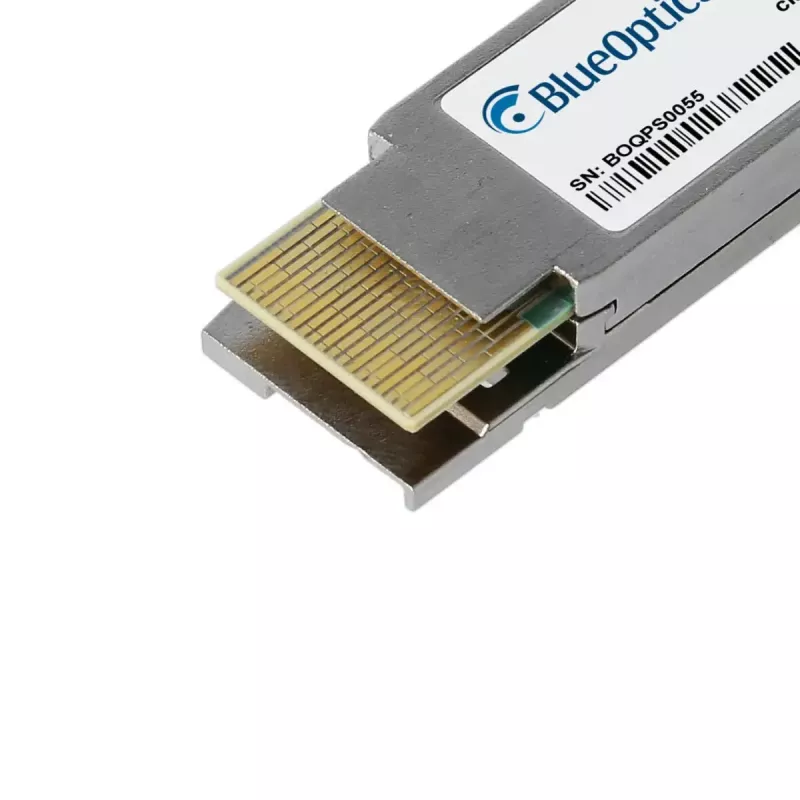

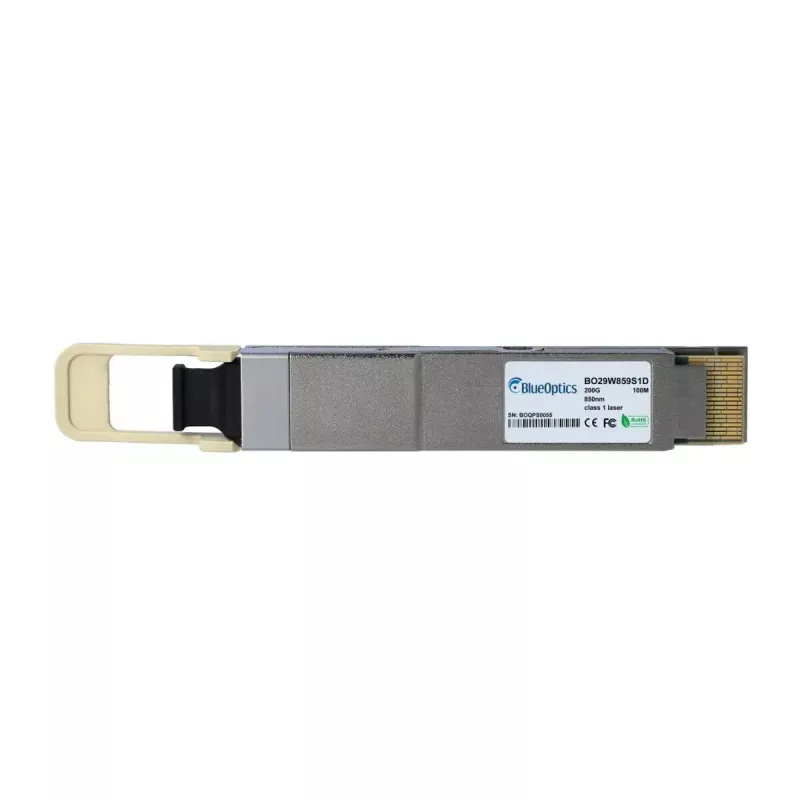

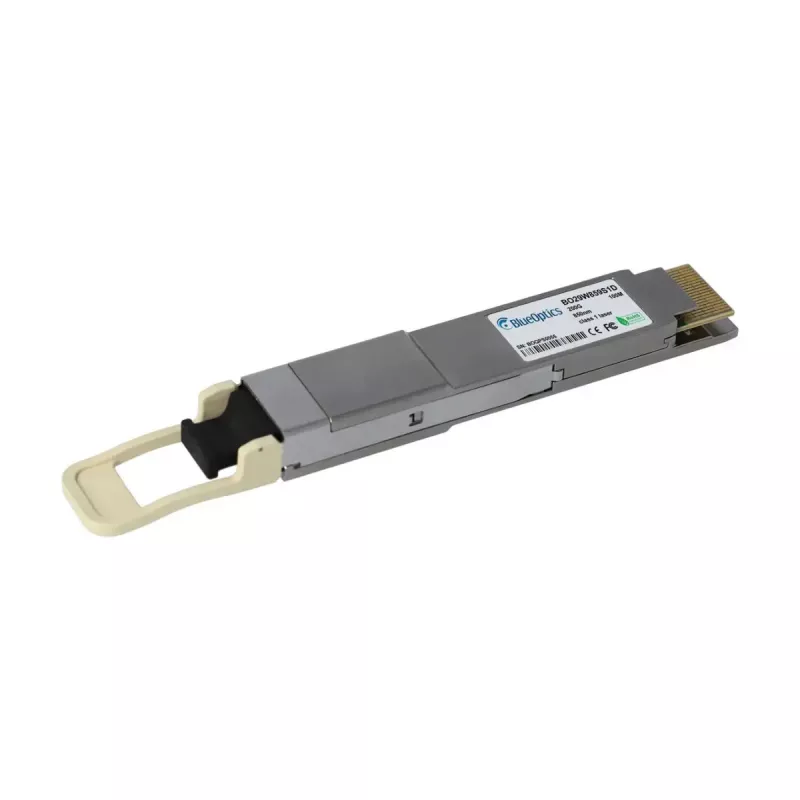

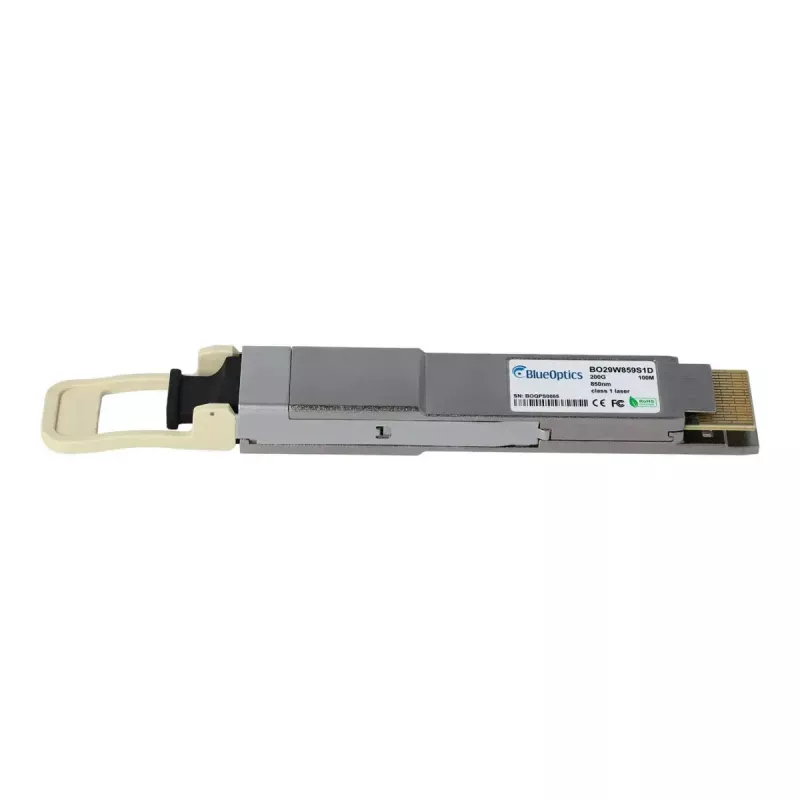

Modulo ricetrasmettitore di rete BlueOptics BO29W859S1D-BO QSFP-DD 200000 Mbit/s MPO-16/MTP-16 argento

BlueOptics BO29W859S1D compatible 200GBASE-SR8 QSFP-DD transceiver with MPO-16/MTP-16 connector for multimode fiber. The module supports 200 Gbit/s optical links over distances up to 100 meters using 850 nm transmit and receive wavelengths, and follows MSA QSFP-DD specifications to ensure physical and electrical interoperability with systems that accept the original BlueOptics BO29W859S1D.

Advantages

The transceiver is tested for compatibility with BlueOptics hardware and includes high-quality components from established suppliers to provide long operational life and stable performance. It supports Digital Diagnostics Monitoring (DDM/DOM) for real-time monitoring of voltage, laser bias current, output and receive power, and temperature. Compliance with MSA, CE, RoHS and FCC standards provides predictable behavior across different vendor platforms.

Key specifications

How to use

Insert the QSFP-DD transceiver into a compatible QSFP-DD slot on a switch, router, storage array or other network device that accepts the BlueOptics BO29W859S1D module. Connect an appropriate MPO-16/MTP-16 multimode fiber patch cord to the transceiver and to the matching port or patch panel. Ensure the host device firmware or software supports third-party modules and, if required, enable DDM/DOM to monitor operating parameters remotely. Observe standard ESD handling procedures when installing or removing the module.

Recommendations

Use high-quality multimode fiber patch cords and, where possible, same-vendor MPO polarity and cleaning procedures to achieve optimal signal quality. Verify device compatibility and DDM/DOM support before deployment and request a test sample if needed.
