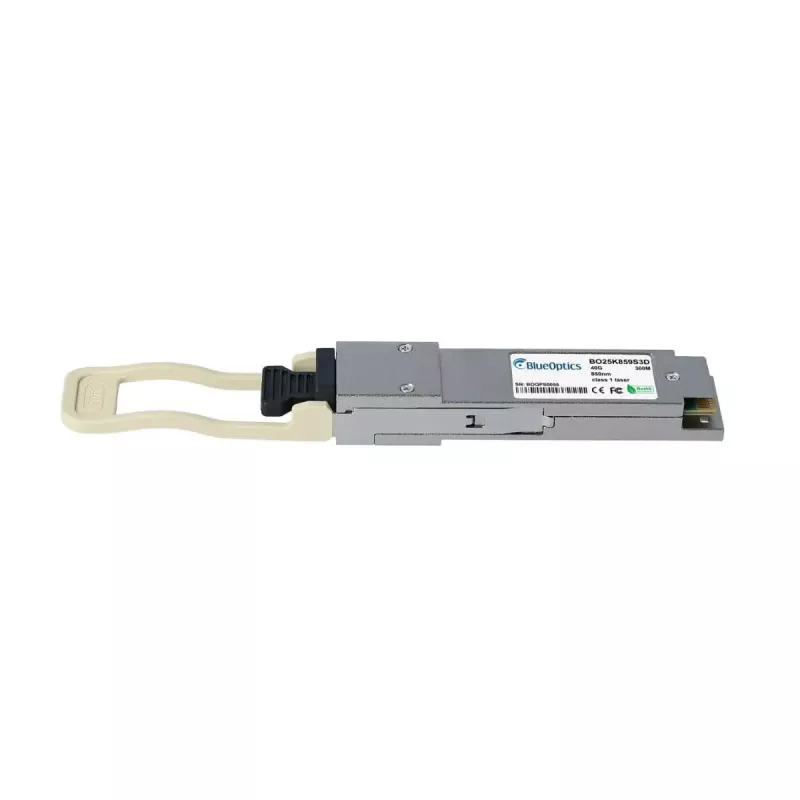

Modulo ricetrasmettitore in fibra ottica BlueOptics 00FE325-BO 40000 Mbit/s QSFP 850 nm

The BlueOptics 00FE325-BO fiber optic transceiver module supports high-speed optical data transfer up to 40,000 Mbit/s. Designed with a QSFP interface and operating at an 850 nm wavelength, this compact module is intended for multimode fiber links where short-reach 40G connections are required. The module is lightweight (approximately 0.04 kg) and finished in a silver housing, providing a standardized form factor for integration into compatible network equipment.

Advantages

This QSFP transceiver offers a standardized QSFP form factor that enables high-density 40G ports while keeping power and space requirements low. Operating at 850 nm, it is suitable for multimode fiber deployments and supports simultaneous transmit and receive channels through an MPO/MTP-style multi-fiber interface. The module is manufactured to meet common industry mechanical and electrical specifications and is compatible with platforms that accept equivalent 40G QSFP modules.

Suitable for

• Short-reach 40G Ethernet links over multimode fiber
• High-density switch-to-switch or switch-to-server interconnects
• Data center aggregation and spine-leaf fabrics
• Environments requiring hot-pluggable QSFP modules

Key specifications

• Interface type: QSFP
• Maximum data transfer rate: 40,000 Mbit/s
• Optical wavelength: 850 nm
• Recommended fiber type: multimode fiber (MPO/MTP connector)
• Typical operating range: intended for short-reach multimode links (industry-standard distances for 850 nm multimode)
• Weight: 0.04 kg
• Product colour: silver

How to use

Insert the BlueOptics QSFP transceiver into a compatible QSFP port on the network device while the host system is powered according to the vendor guidelines for hot-pluggable modules. Connect an MPO/MTP multimode fiber patch cord that matches the transceiver’s transmit/receive orientation and the connected device’s port mapping. Ensure the connected equipment is configured for a 40G link and that the fiber cabling and patch panels are rated for 850 nm multimode operation. Follow normal safety and handling precautions for fiber optic connectors to avoid contamination and maintain signal quality.

Recommendations

Verify compatibility with the target hardware and firmware before deployment. Use high-quality multimode MPO/MTP patch cords and maintain clean connector endfaces to achieve optimal link performance. If available, enable digital diagnostics (DDM/DOM) on the host device to monitor optical parameters and support remote troubleshooting.
