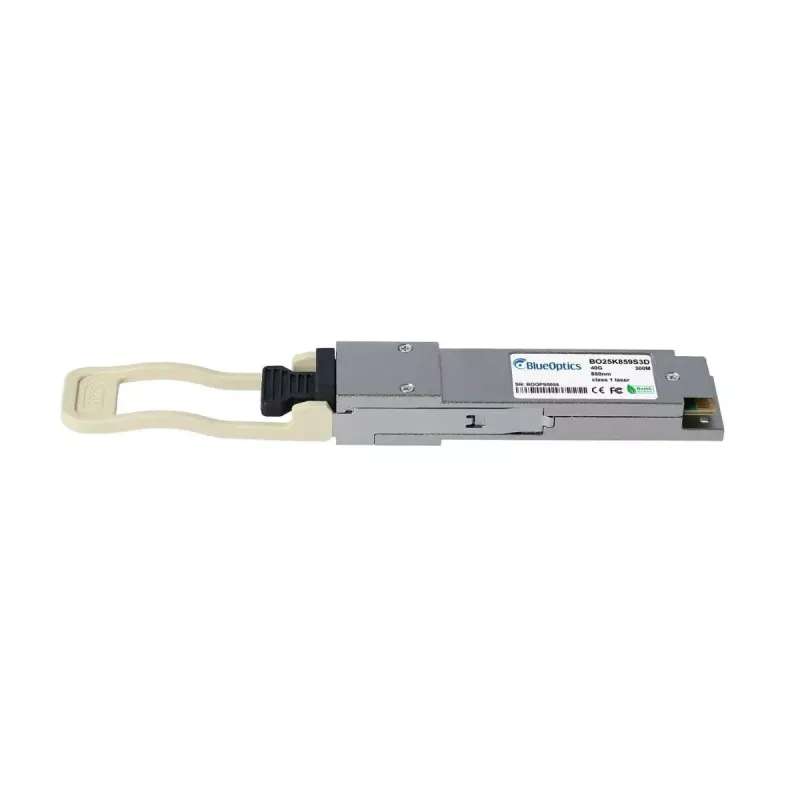

Modulo ricetrasmettitore in fibra ottica BlueOptics 02310RMB-BO 40000 Mbit/s QSFP

The BlueOptics 02310RMB-BO QSFP fiber optic transceiver module supports a maximum data rate of 40000 Mbit/s and operates at an optical wavelength of 850 nm. Housed in a metal enclosure and weighing approximately 2 g, the module is designed for compact, high-speed multimode fiber connections and complies with QSFP interface requirements. It uses a 3.3 V input supply and is intended for use in network equipment that accepts QSFP modules with MPO/MTP connectivity according to MSA standards.

Advantages

The module delivers 40 Gbit/s performance over multimode fiber with MPO/MTP connectivity and implements both transmit and receive channels at 850 nm. Its metal housing provides mechanical robustness and thermal dissipation appropriate for rack-mounted network hardware. Compatibility testing to industry MSA profiles ensures functional interoperability with hardware platforms that support the equivalent 40GBASE-ESR4 QSFP transceivers. The compact, lightweight design simplifies installation and replacement in dense networking environments.

Suitable for

• 40G Ethernet aggregation links in data centers
• High-speed interconnects between switches, routers and storage systems
• Fibre Channel over Ethernet and SDH/SONET applications up to 40 Gbit/s
• Short-reach multimode fiber links using MPO/MTP trunking (up to the supported distance for 850 nm multimode operation)

Key specifications

• Interface type: QSFP (Quad Small Form-factor Pluggable)
• Maximum data transfer rate: 40000 Mbit/s (40 Gbit/s)
• Operating wavelength: 850 nm (transmit and receive)
• Connector type: MPO/MTP (multi-fiber trunk connector, MSA compliant)
• Fiber type: Multimode fiber support
• Supply voltage: 3.3 V input
• Product colour: Silver
• Housing material: Metal
• Weight: approximately 0.002 kg

How to use

Install the BlueOptics QSFP module into a compatible QSFP port of a switch, router or storage device following the host hardware manufacturer’s hot-swap and insertion procedures. Connect multimode MPO/MTP fiber trunk or patch cords to the module’s MPO/MTP connector, observing correct polarity and trunk mapping. Verify that the host device recognizes the module and that link negotiation or configuration for 40 Gbit/s operation is completed. If the host supports digital diagnostics (DDM/DOM), monitor operating parameters such as supply voltage, temperature and optical power through the management interface to confirm proper operation.

Recommendations

Use high-quality multimode MPO/MTP patch cords and maintain clean connector end-faces to achieve optimal link performance. Ensure the transceiver is used within the host’s supported transceiver list and that firmware or software settings allow 40GBASE-ESR4 operation. For environmental reliability, allow adequate airflow over the metal housing and avoid exceeding the device’s operating voltage and temperature ranges.
