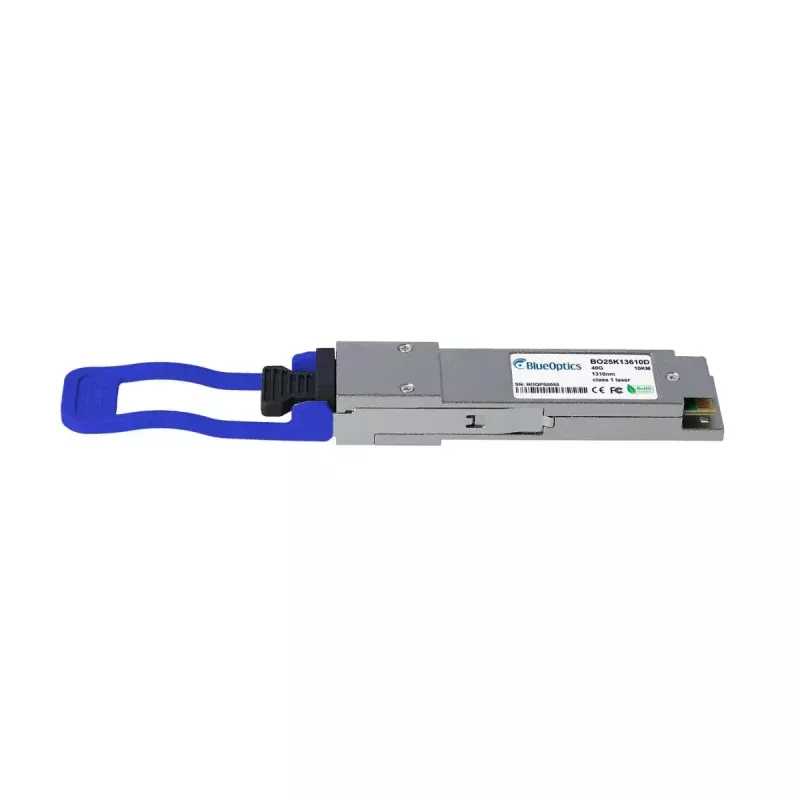

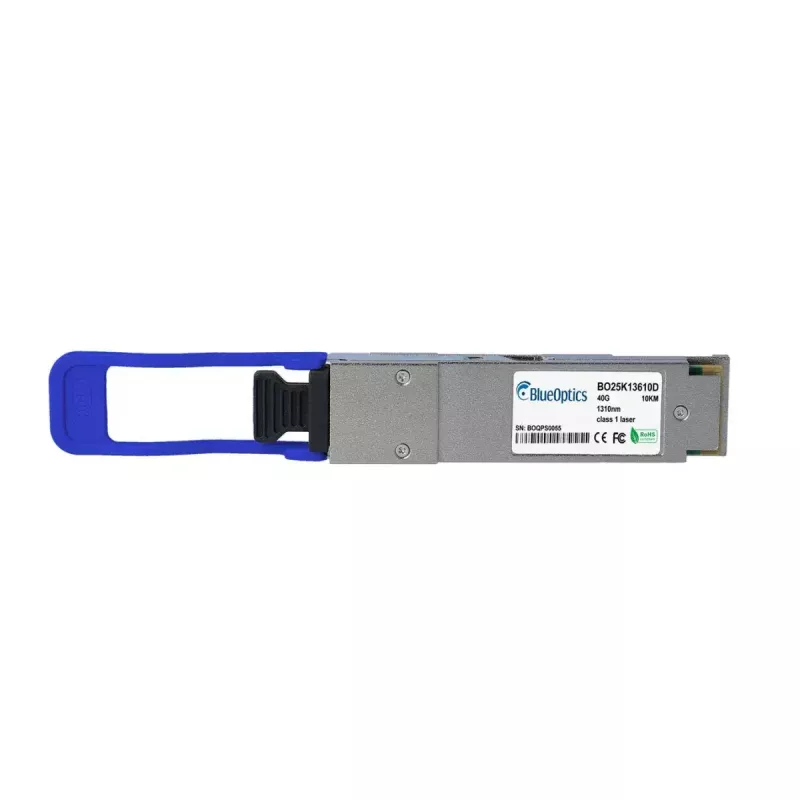

Modulo ricetrasmettitore in fibra ottica BlueOptics 100-05465-BO QSFP 40000 Mbit/s

The BlueOptics 100-05465-BO QSFP 40000 Mbit/s fiber optic transceiver module is designed for high-speed network links where compact QSFP form factor and reliable optical connectivity are required. This silver-coloured module supports a maximum data transfer rate of 40 Gbit/s and is intended for installation in compatible QSFP ports on switches, routers or server network adapters. With a lightweight construction of 20 g and an MTBF of 1,000,000 hours, the module is built to provide sustained performance in data centre and enterprise environments while meeting CE, FCC and RoHS regulatory requirements.

Advantages

The module delivers 40 Gbit/s throughput in a standardized QSFP form factor, enabling dense, high-bandwidth connections in a small footprint. Its certified compliance with CE, FCC and RoHS indicates adherence to common safety, emissions and environmental standards. The low weight and compact dimensions simplify hot-plugging into standard QSFP ports, and the long MTBF rating reflects design choices aimed at durability and continuous operation.

Suitable for

• High-bandwidth uplinks between switches and core networking equipment
• Server-to-switch connections in data centres and colocation facilities
• Aggregation links in enterprise campus and campus backbone networks
• Optical interconnects requiring QSFP form factor and 40 Gbit/s capacity

Key specifications

• Interface type: QSFP
• Maximum data transfer rate: 40000 Mbit/s (40 Gbit/s)
• Product colour: Silver
• Weight: 0.02 kg
• Mean time between failures (MTBF): 1,000,000 hours

How to use

Install the transceiver into an empty QSFP port on a compatible switch, router or network adapter, ensuring the module is aligned with the port receptacle and fully seated until a tactile click or stop is felt. Connect the appropriate multimode or single-mode fiber cable according to your link design and follow your equipment vendor's guidelines for link configuration and diagnostics. Use the host device management interface to verify link state and data rate after insertion. If hot-plugging, follow the platform's recommended procedures to avoid transient link disruptions.

Recommendations

Operate the module within the host equipment's specified temperature and power limits, keep optical connectors clean to maintain signal integrity, and store unused modules in anti-static packaging. Verify compatibility with the target device's QSFP port and firmware; use vendor-recommended transceivers and monitor link status after installation to confirm expected performance.
