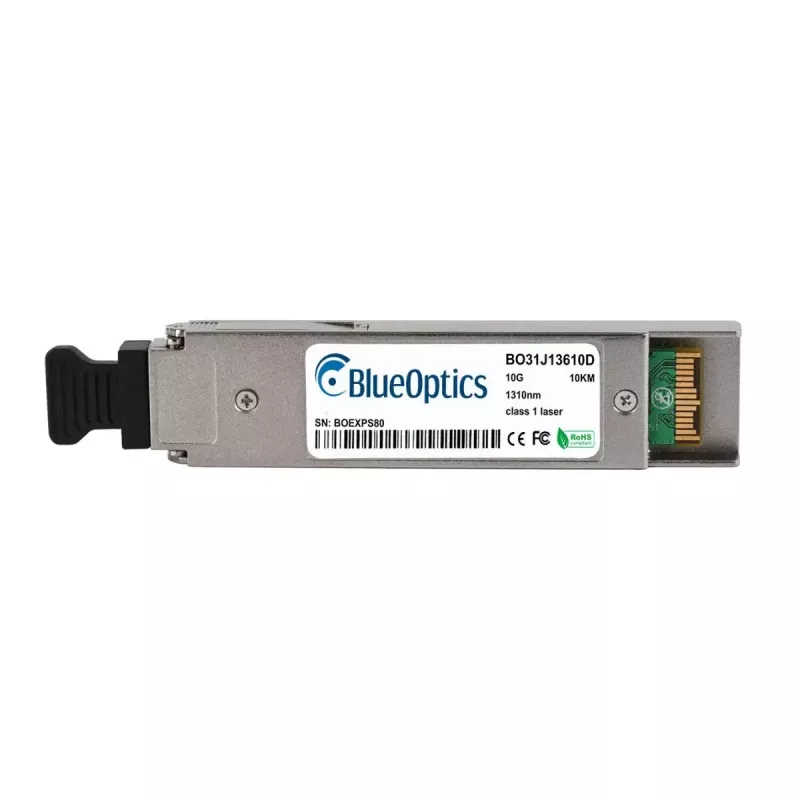

Modulo ricetrasmettitore in fibra ottica BlueOptics 1AB214540001-BO XFP 10000 m

The BlueOptics 1AB214540001-BO XFP 10000 m is a fiber optic XFP transceiver module designed for single-mode links with a maximum reach of 10,000 metres. Housed in an aluminium casing and weighing 20 g, this module implements the XFP interface and uses an LC duplex connector for simultaneous bidirectional optical transmission. It supports 10 Gbps class applications and is intended for integration into network equipment that accepts MSA-compliant XFP modules.

Advantages

The aluminium housing provides physical durability while keeping weight low for easy handling and installation. Compliance with XFP and MSA mechanical standards ensures interoperability with a wide range of switches, routers and storage systems that support XFP optics. The module is suited for long-distance single-mode optical links and can help maintain stable high-speed data transmission with reduced susceptibility to electromagnetic interference.

Suitable for

• Long-reach single-mode 10 Gbps Ethernet links
• Interconnects between switches, routers and storage systems
• Carrier and enterprise backbone connections up to 10 km
• Replacement or upgrade of XFP ports in compatible network equipment

Key specifications

• Interface type: XFP
• Maximum transmission distance: up to 10,000 m (single-mode)
• Data rate class: 10 Gbps applications
• Connector: LC Duplex (optical)
• Housing material: aluminium
• Weight: 0.02 kg

How to use

Insert the XFP transceiver into a compatible XFP port on the network device according to the device manufacturer’s instructions. Connect an appropriate single-mode LC duplex fiber patch cable to the module’s LC connector, ensuring correct transmit/receive alignment. Verify that the host device recognises the module and that link lights or interface status indicate an active connection. If the host supports digital diagnostics (DDM/DOM), enable or query the diagnostics via the device management interface for real-time monitoring of voltage, temperature, transmit and receive power when available.

Recommendations

Use clean single-mode LC duplex patch cords and standard patch panels for optimal signal quality. Confirm compatibility with the target device firmware and hardware to ensure full functionality of link and diagnostic features. Handle the transceiver by the housing, avoid touching the optical interface, and replace dust caps when not in use to protect the optical ports.
