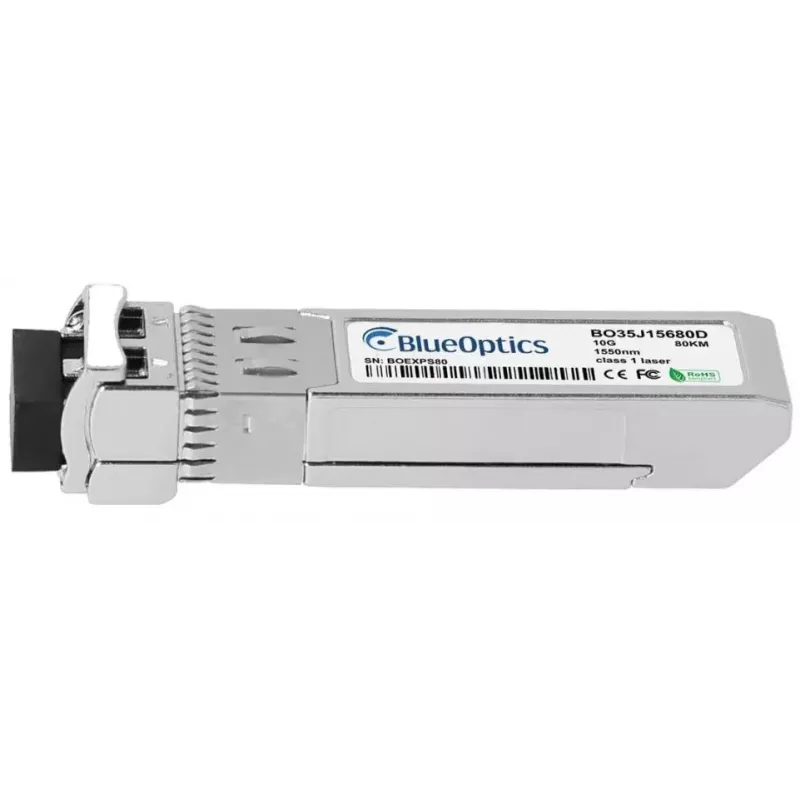

Modulo ricetrasmettitore in fibra ottica BlueOptics 3HE09329AA-BO SFP+ 80000 m

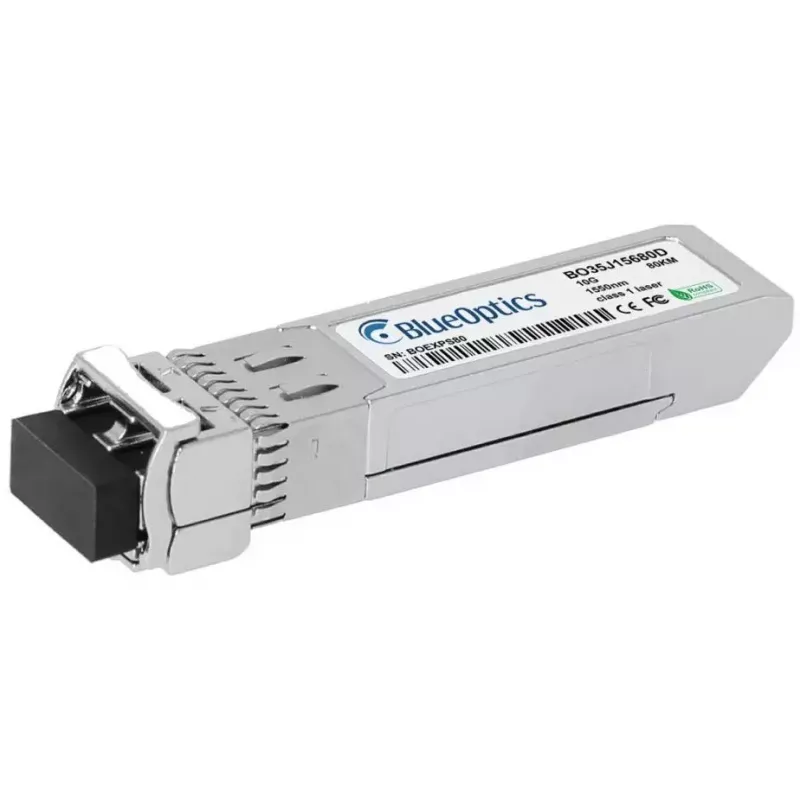

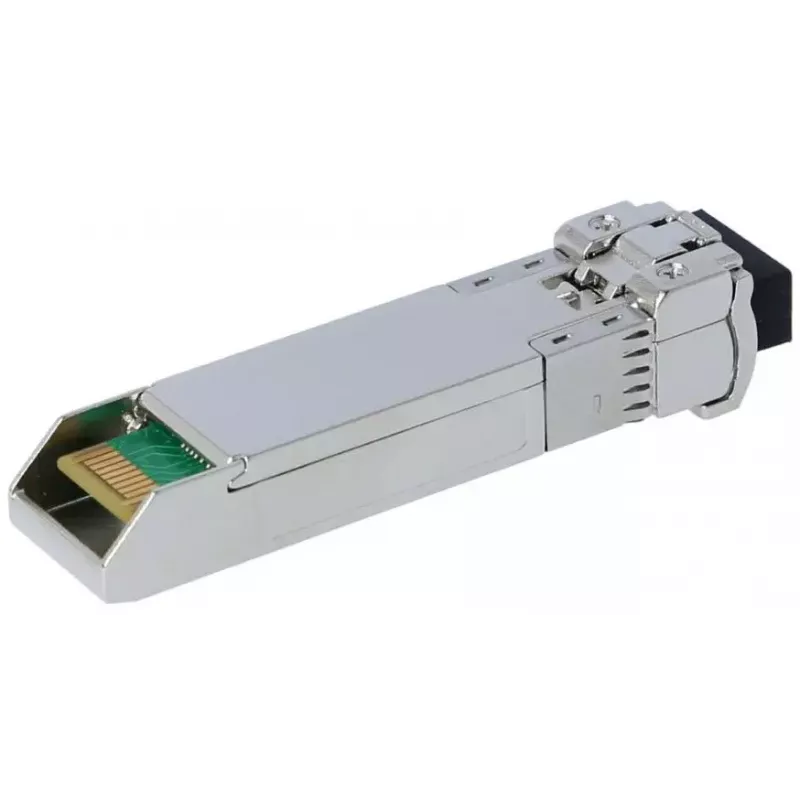

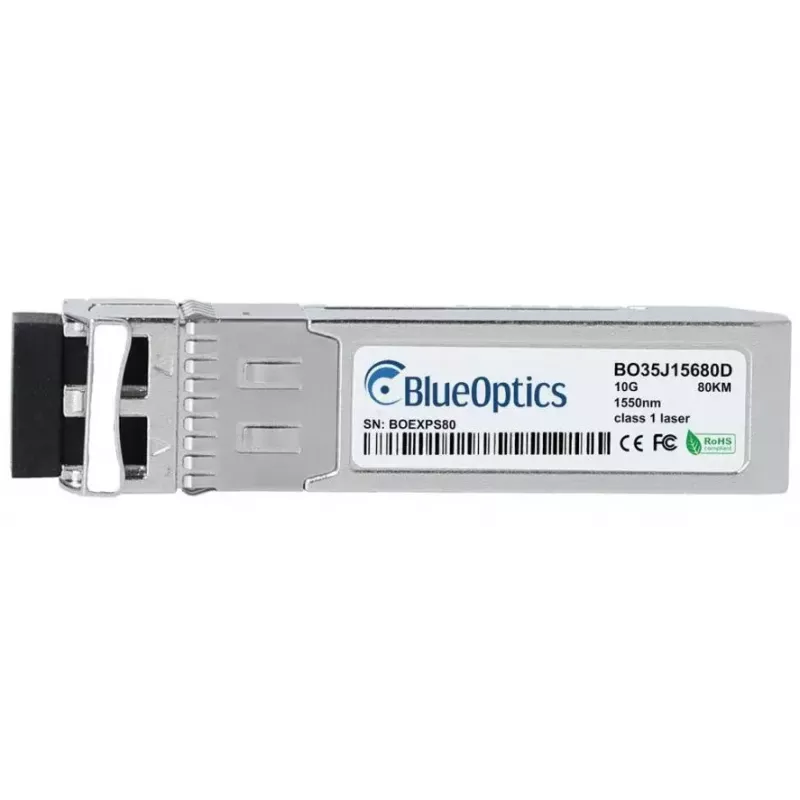

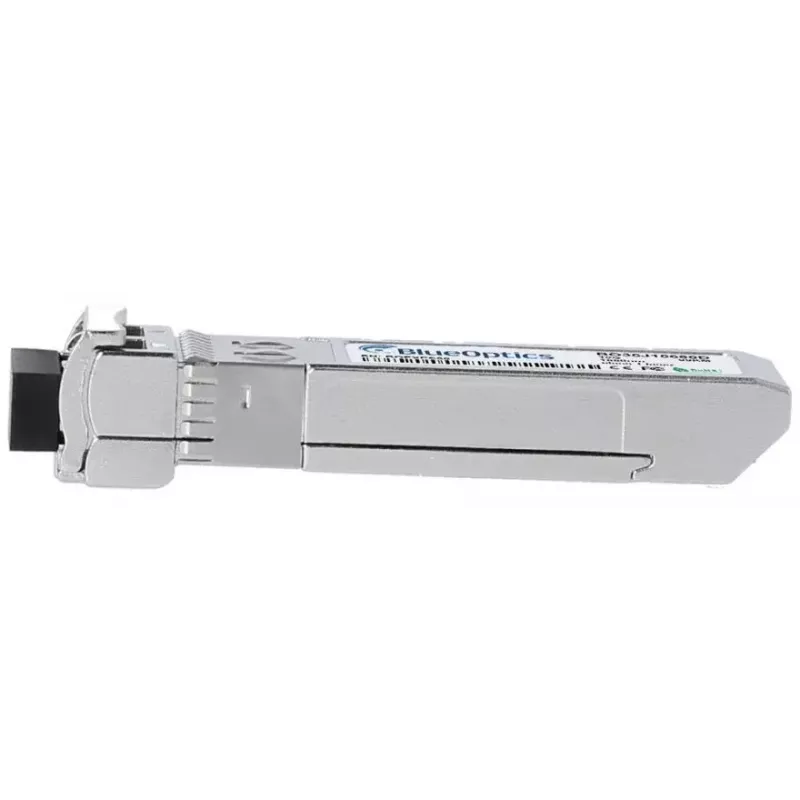

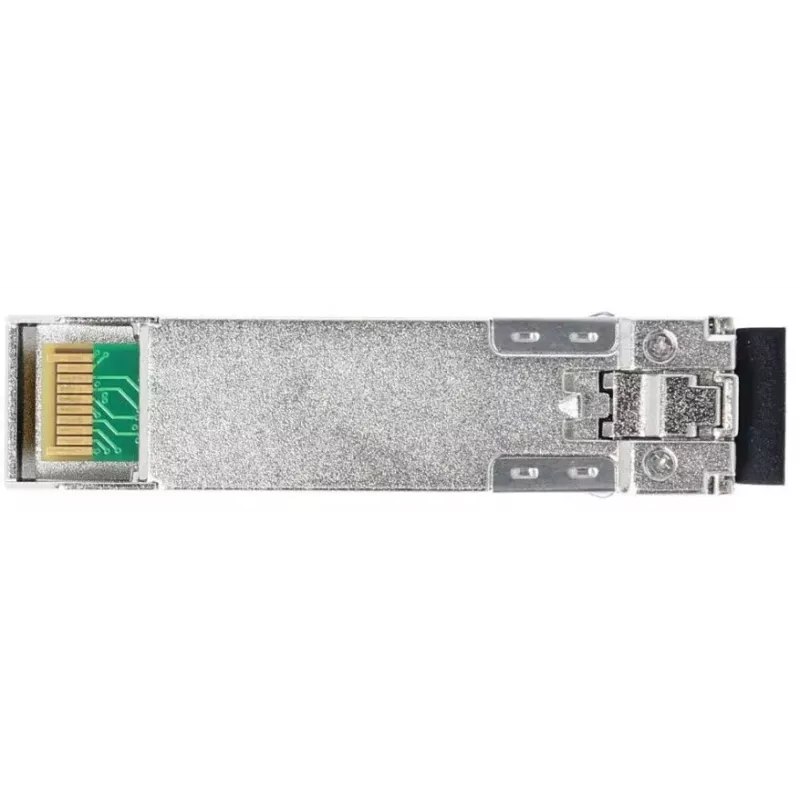

The BlueOptics 3HE09329AA-BO SFP+ 80000 m is a fiber optic transceiver module designed for 10 Gbps data transmission over single-mode fiber. Housed in an aluminium casing and weighing 20 g, this SFP+ module implements a 10GBASE-ZR optical interface with LC duplex connector and operates at 1550 nm for both transmitter and receiver. It supports long-reach links up to 80 kilometres and follows MSA-compliant form factor and electrical specifications suitable for use in equipment that accepts SFP+ transceivers.

Advantages

The module offers long-distance 10 Gbps connectivity with a compact SFP+ form factor and aluminium housing that provides mechanical protection and thermal dissipation. Compatibility with standard LC duplex single-mode cabling and adherence to MSA electrical and mechanical specifications simplify integration into a wide range of network devices. The transceiver also supports Digital Diagnostic Monitoring (DDM/DOM) for real-time reporting of supply voltage, laser bias current, transmit power, receive power and temperature when the host hardware supports these functions.

Suitable for

• Long-haul 10 Gbps Ethernet links over single-mode fiber
• Interconnects between core switches, routers and transport equipment
• Fiber links for data center inter-site connectivity and campus backbones
• Applications requiring DDM/DOM for remote monitoring and diagnostics

Key specifications

• Interface type: SFP+ (10GBASE-ZR)
• Wavelength: 1550 nm (Tx/Rx)
• Maximum transmission distance: up to 80,000 m (80 km) over single-mode fiber

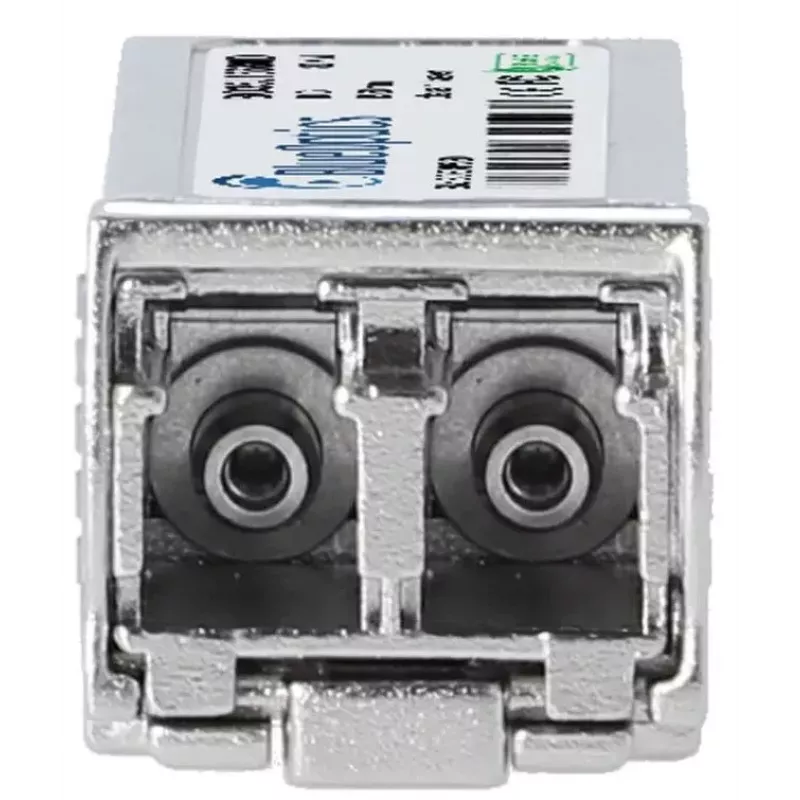

• Connector: LC duplex
• Housing material: aluminium
• Weight: 0.02 kg
• Supported protocols: 10 Gigabit Ethernet, Fibre Channel over Ethernet, SDH/SONET-compatible data rates
• Digital Diagnostics: DDM/DOM capable (if supported by host hardware)

How to use

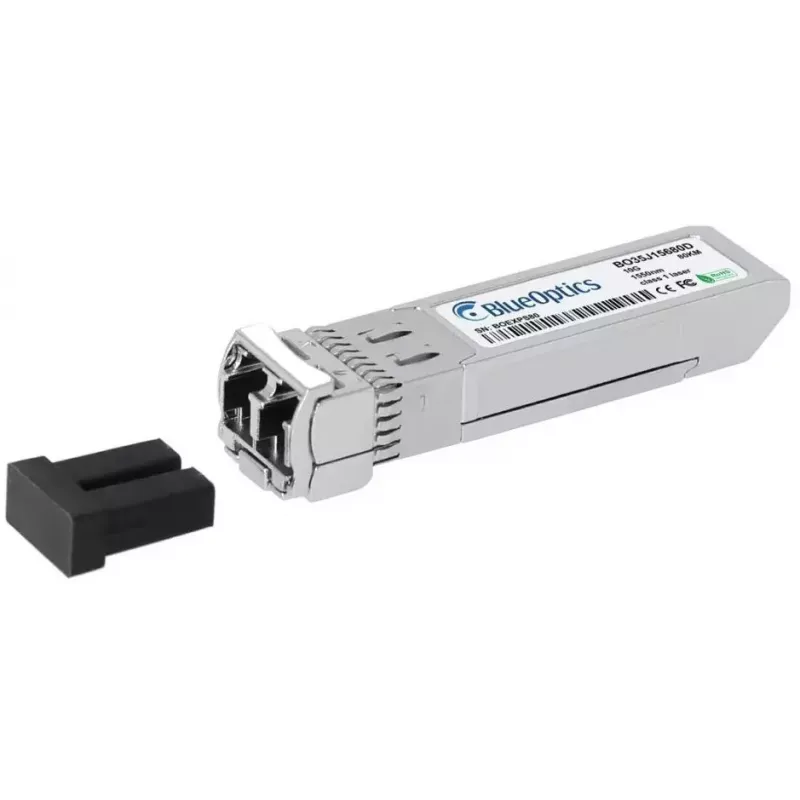

Install the SFP+ transceiver into a compatible SFP+ port on a switch, router or other network device following the host vendor's insertion and removal procedure. Connect LC duplex single-mode fiber patch cords ensuring correct transmit-to-receive alignment between the two ends. Verify link status and speed on the host device and enable DDM/DOM monitoring if remote diagnostics are required and supported. Observe proper electrostatic discharge (ESD) precautions during handling and keep protective caps on the optical ports when not in use.

Recommendations

For optimal long-reach performance use low-loss single-mode fiber and clean LC connectors. Match the transceiver wavelength and fibre type across the link and confirm host device compatibility with 10GBASE-ZR SFP+ modules and DDM/DOM functions before deployment.
