Modulo ricetrasmettitore in fibra ottica BlueOptics 3HE10550AA-BO 100000 Mbit/s QSFP28

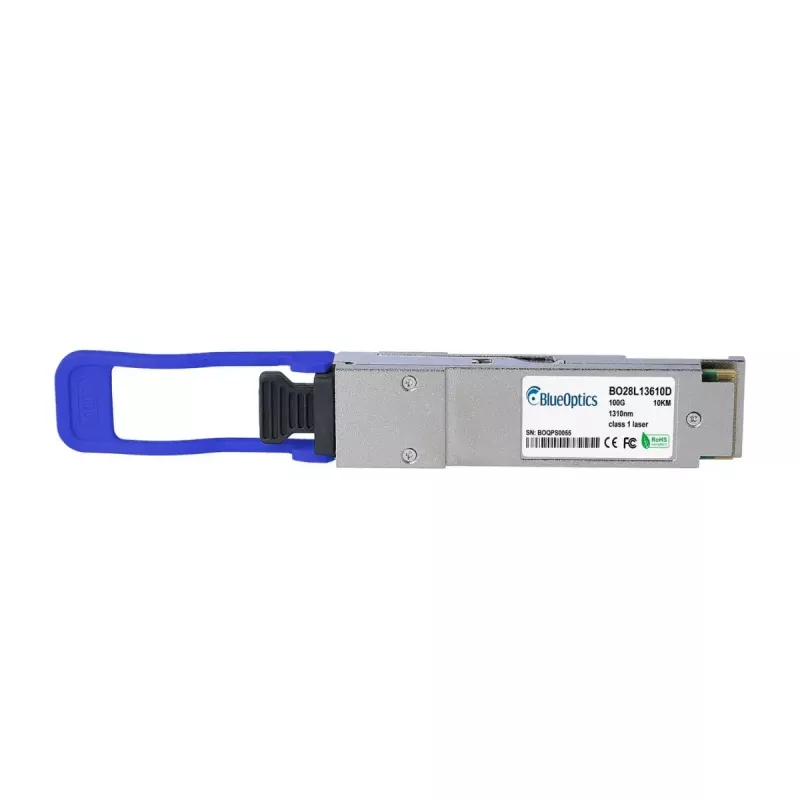

The BlueOptics 3HE10550AA-BO is a fiber optic transceiver module designed for high-speed optical links. It supports data transfer rates up to 100000 Mbit/s via a QSFP28 interface and comes in a metal housing that provides mechanical protection while keeping weight low (0.04 kg). The module is intended for single-mode fiber connections with LC Duplex connectors and is built to meet MSA-compliant QSFP28 mechanical and electrical specifications. With an MTBF of 1000000 hours, the transceiver is engineered for long-term deployment in data center and carrier environments.

Advantages

The module offers a compact QSFP28 form factor that enables 100 Gbit/s throughput in a single pluggable unit, combining high bandwidth with a small footprint. Its metal housing improves durability and thermal performance compared with plastic housings. Compliance with MSA QSFP28 standards and support for LC Duplex single-mode connections ensure interoperability with equipment that accepts QSFP28 optical transceivers. The listed MTBF indicates an expected long operational life, reducing the need for frequent replacements.

Suitable for

• 100 Gbit/s Ethernet links in data centers and enterprise networks
• High-capacity interconnects between switches, routers and storage systems
• Long-reach single-mode fiber links where LC Duplex connectors are used
• Infrastructure upgrades requiring QSFP28-compatible pluggable optics

Key specifications

• Interface type: QSFP28
• Maximum data transfer rate: 100000 Mbit/s (100 Gbit/s)
• Connector type: LC Duplex (single-mode fiber)
• Housing: metal
• Weight: 0.04 kg
• Product colours: silver, blue
• Mean Time Between Failures (MTBF): 1000000 hours

How to use

Insert the QSFP28 transceiver into a compatible QSFP28 cage on your switch, router or other network hardware while the device is powered down or following the host vendor's hot-plug guidelines. Connect single-mode LC Duplex fiber patch cords to the module's LC Duplex ports, ensuring correct transmit/receive orientation. After insertion, verify link status and, if applicable, enable or configure the port in the host system. If the host supports digital diagnostics (DDM/DOM), monitor the transceiver parameters through the management interface to confirm proper operation.

Recommendations

Use high-quality single-mode LC Duplex patch cords and, where applicable, keep fiber connectors clean to maintain link performance. Confirm compatibility with the host hardware and firmware before deployment and verify that the host supports QSFP28 optics and any digital diagnostic features you plan to use.
