Modulo ricetrasmettitore in fibra ottica BlueOptics 740-094022-BO SFP+ 40000 m alluminio 20 g

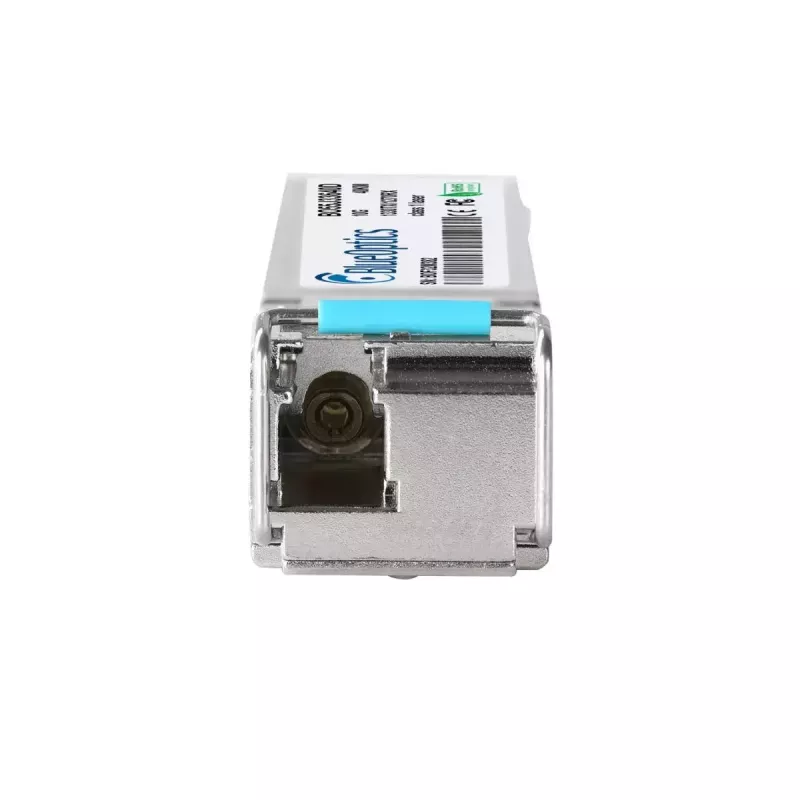

The BlueOptics 740-094022-BO SFP+ fiber optic transceiver module is designed for high-speed single-mode optical links with support for distances up to 40,000 m. The module uses an SFP+ interface with an LC simplex connector and comes in an aluminium housing weighing approximately 20 g, making it suitable for dense network environments and standard hot-pluggable SFP+ slots. The transceiver implements bidirectional optical transmission with distinct transmit and receive wavelengths for long-reach 10G connectivity.

Advantages

The module supports 10 Gbps data rates over single-mode fiber and is built to MSA-compliant SFP+ form-factor standards for wide interoperability. Its aluminium enclosure provides a lightweight and durable solution for rack-mounted and modular networking equipment. The transceiver includes digital diagnostics (DDM/DOM) capability for real-time monitoring of parameters such as optical power, temperature and supply voltage when the host hardware supports these functions. Designed for long life and stable performance, the product is suitable for deployments that require reliable optical links over extended distances.

Suitable for

• Long-reach 10G Ethernet connections over single-mode fiber
• Interconnecting switches, routers and storage systems in data centers
• Fiber uplinks and aggregation links in carrier or enterprise networks
• Environments requiring hot-pluggable SFP+ modules and LC simplex connectors

Key specifications

• Interface type: SFP+
• Maximum reach: up to 40,000 m over single-mode fiber
• Connector: LC simplex
• Data rate: 10 Gbps (10GBASE-BX-D compatible operation)
• Transmit/receive wavelengths: bidirectional operation with distinct TX and RX wavelengths (typical for BX-D optics)
• Housing material and colour: aluminium
• Weight: approximately 0.02 kg
• Digital diagnostics: DDM/DOM support (when enabled by host hardware)

How to use

Insert the SFP+ transceiver into a compatible SFP+ port on your switch, router or other networking equipment until it clicks into place. Connect an LC simplex single-mode patch cable between the module and the remote transceiver, observing the correct orientation for transmit and receive fibers. Ensure that the host device firmware or drivers support third-party SFP+ modules and that DDM/DOM functions are enabled if diagnostic monitoring is required. After installation, verify link status and negotiated speed in the host device management interface.

Recommendations

For optimal link performance, use single-mode fiber and quality LC simplex patch cords, follow vendor guidelines for cable routing and bend radius, and confirm compatibility with the target hardware platform. If digital diagnostics are required for monitoring, make sure the host system supports DDM/DOM and check diagnostic readings after installation.
