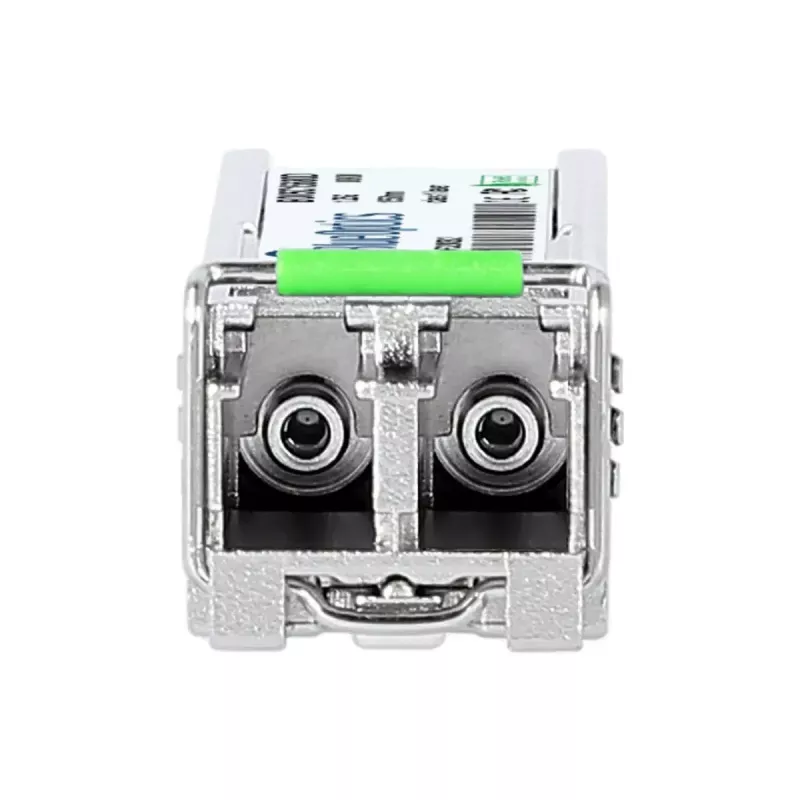

Modulo ricetrasmettitore in fibra ottica BlueOptics 780180-BO 1250 Mbit/s SFP 1550 nm

The BlueOptics 780180-BO is an SFP fiber optic transceiver module designed for single-mode links with a wavelength of 1550 nm and a maximum data transfer rate of 1250 Mbit/s. Housed in a silver metal enclosure and weighing approximately 20 g, the module follows common MSA SFP form-factor conventions and is RoHS compliant. It supports long-reach optical connections and includes transmitter and receiver functions for duplex LC fiber links, providing reliable data transmission for networking equipment that accepts SFP modules.

Advantages

This SFP transceiver delivers gigabit-capable performance at 1550 nm suitable for long-distance single-mode fiber runs, while its compact SFP form factor allows hot-pluggable installation in compatible switches, routers and storage interfaces. The module is manufactured to industry MSA standards for mechanical and optical compatibility and is tested for interoperability with major hardware platforms. With an MTBF on the order of 1,000,000 hours and RoHS compliance, it offers long operational life and adherence to environmental and safety requirements.

Suitable for

• Long-distance single-mode Ethernet links
• Interconnects between switches and routers in metro or campus networks
• Fibre Channel over Ethernet and SDH/SONET transport up to 1.25 Gbit/s
• Replacement or upgrade of SFP ports in enterprise network hardware that supports 1550 nm SFPs

Key specifications

• Form factor: SFP (small form-factor pluggable)
• Wavelength: 1550 nm
• Maximum data rate: 1250 Mbit/s (1.25 Gbit/s)
• Connector type: LC duplex (optical)
• Fiber type: Single-mode fiber (SMF)
• Typical weight: 20 g
• Compliance: RoHS
• Mean time between failures (MTBF): ~1,000,000 hours

How to use

Install the BlueOptics 780180-BO module into an empty SFP slot of compatible network equipment while the host device is powered according to the vendor's hot-plug guidelines. Connect LC duplex single-mode fiber patch cords to the module's transmit and receive ports, ensuring correct polarity. Confirm link negotiation and speed settings on the host device and verify that the module is recognized by the system. For monitoring capabilities, enable Digital Diagnostic Monitoring (DDM/DOM) on supported platforms to read supply voltage, laser bias current, transmit power, receive power and temperature.

Recommendations

Use low-loss single-mode LC duplex patch cords and, where possible, route fibers through patch panels to maintain optimal signal quality. Ensure the host hardware supports 1550 nm SFP modules and the required protocols (Ethernet, Fibre Channel over Ethernet or SDH/SONET) before deployment. When using DDM/DOM features, check that the networking device firmware exposes diagnostic parameters; maintain clean connector end-faces and follow ESD precautions during handling and installation.
