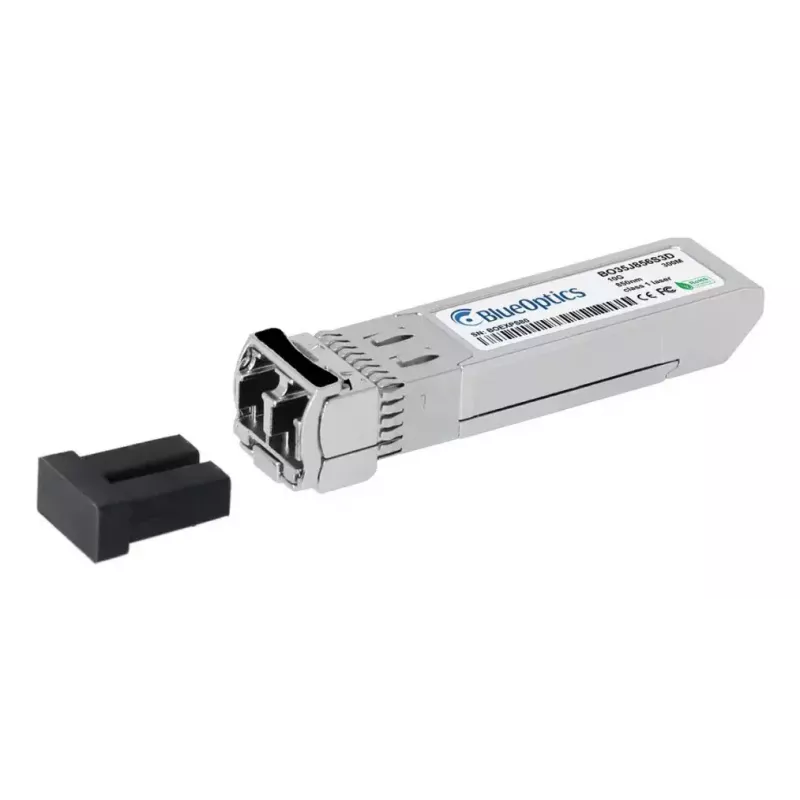

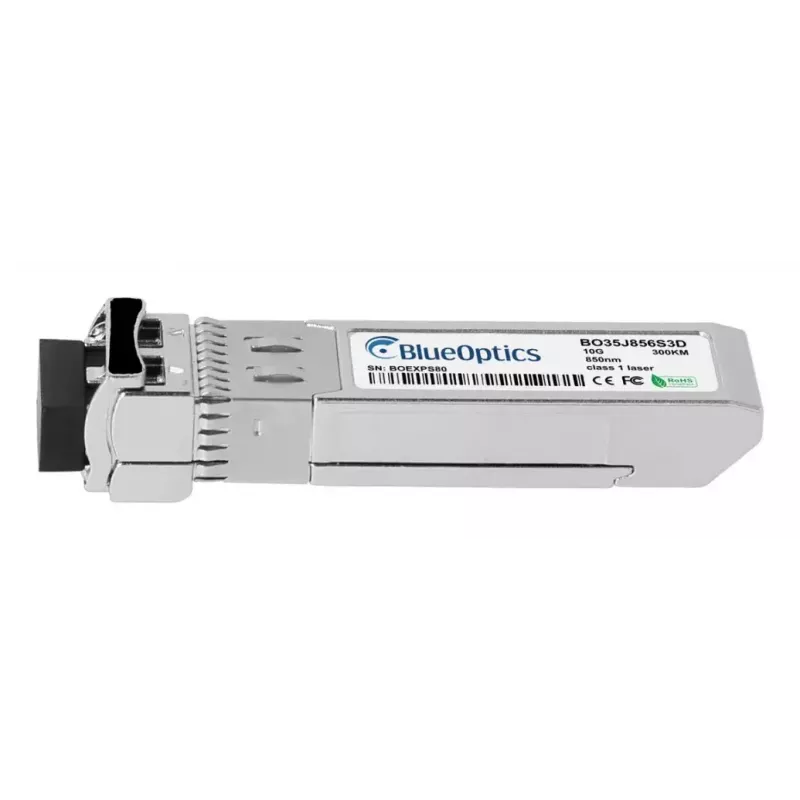

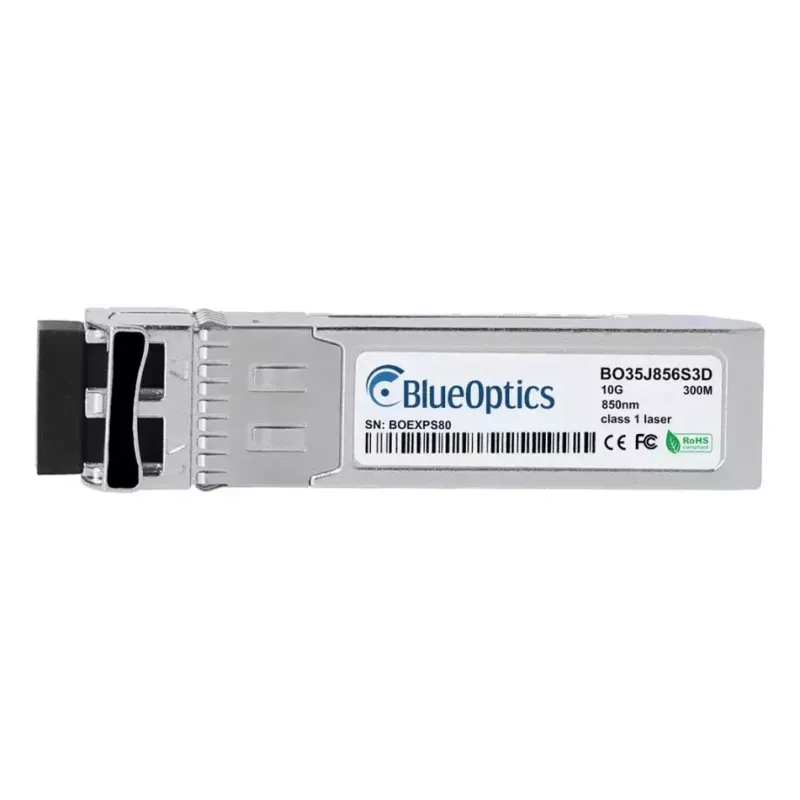

Modulo ricetrasmettitore in fibra ottica BlueOptics AOM-GBIC-FSR2-BO SFP+ LC

The BlueOptics AOM-GBIC-FSR2-BO SFP+ LC is a fiber optic transceiver module designed for 10GBASE-SR multimode applications. Housed in a lightweight aluminium enclosure and weighing approximately 20 g, this SFP+ module provides optical transmit and receive at 850 nm via an LC duplex connector. The module follows MSA-compliant SFP+ form-factor standards for interoperable use in compatible switches, routers, storage systems and other network devices.

Advantages

This SFP+ transceiver supports 10 Gbit/s links over multimode fiber to distances up to approximately 300 meters (dependent on fiber type and link conditions). It is built using industry-standard components and is tested for compatibility with equipment that accepts the corresponding 10GBASE-SR SFP+ specification. The compact aluminium housing and a 20 g weight reduce space and thermal load in dense network installations, while the LC duplex connector enables simultaneous transmit and receive on separate fibers.

Suitable for

• 10GBASE-SR short-range multimode fiber connections
• Switch-to-switch and switch-to-server links in data centers
• High-speed storage network uplinks and SAN environments
• Network equipment that supports MSA-compliant SFP+ modules

Key specifications

• Form factor: SFP+
• Optical wavelength: 850 nm (TX and RX)
• Connector: LC duplex
• Supported data rate: up to 10 Gbit/s
• Typical multimode range: up to ~300 m (depending on fiber type)
• Material/colour: aluminium housing
• Weight: approx. 0.02 kg
• DDM/DOM support: digital diagnostics monitoring (if supported by host hardware)

How to use

Insert the transceiver into an SFP+ slot on a compatible device until it clicks into place, then attach LC duplex multimode patch cables to the module ensuring correct TX/RX alignment. Verify that the host device supports the required 10GBASE-SR SFP+ interface and enable any required port settings in the switch or router configuration. If DDM/DOM monitoring is required, confirm that the host hardware and management software can read the module's diagnostic parameters.

Recommendations

Use OM3/OM4 multimode fiber patch cords and appropriate LC duplex connectors for optimal range and performance. Maintain clean fiber endfaces and follow standard ESD precautions when handling the transceiver. For monitoring and troubleshooting, enable digital diagnostics on compatible host equipment to observe supply voltage, laser bias current, transmit power, receive power and temperature in real time.
