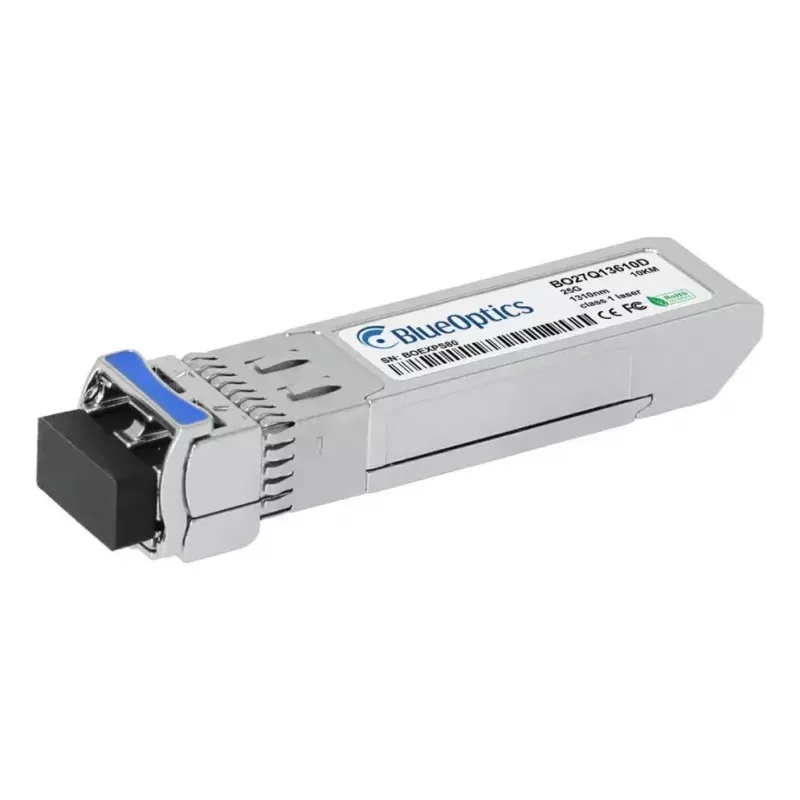

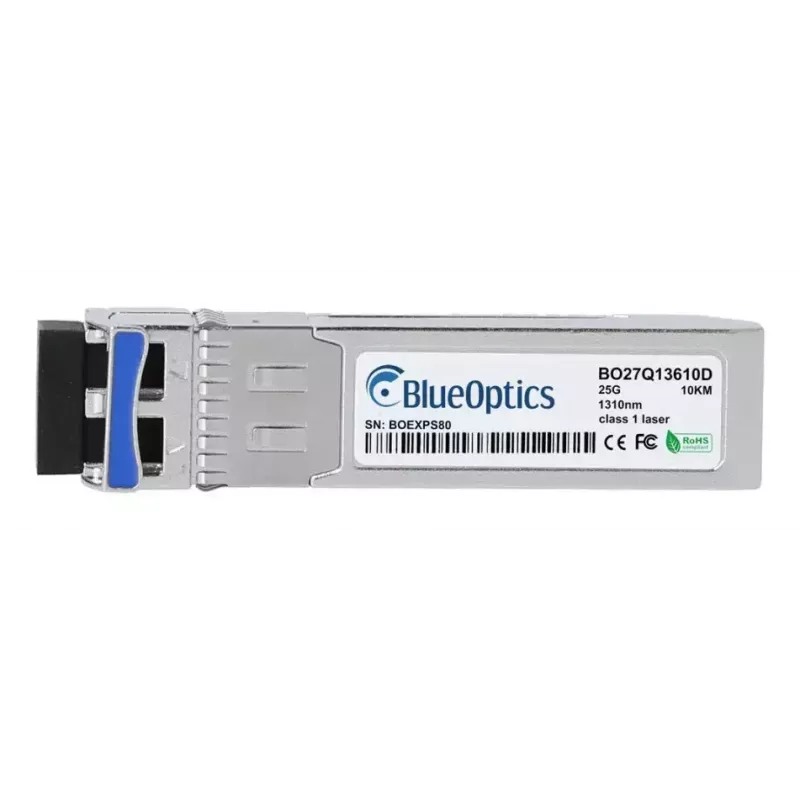

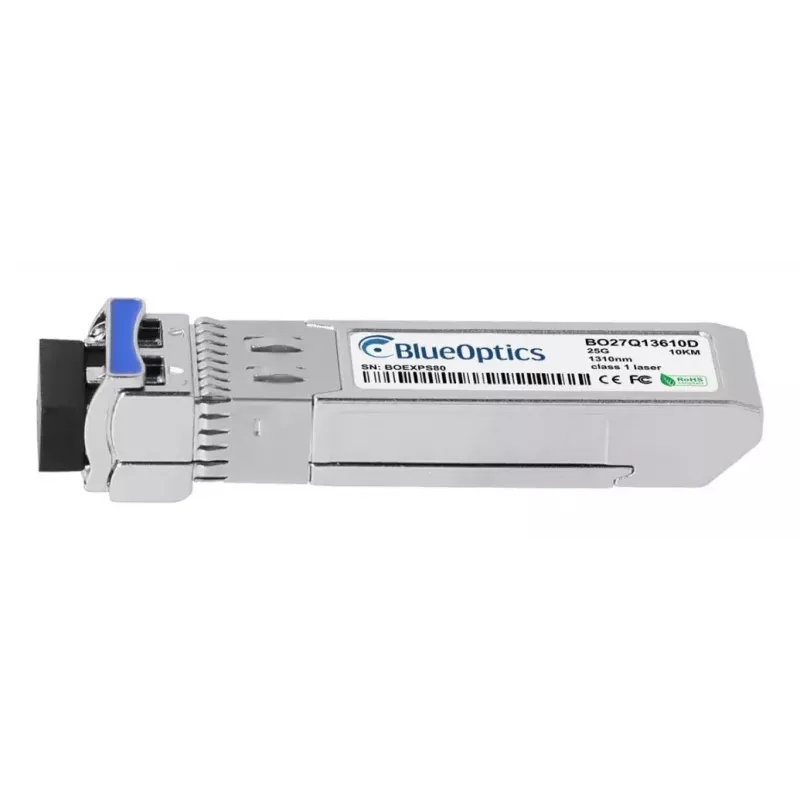

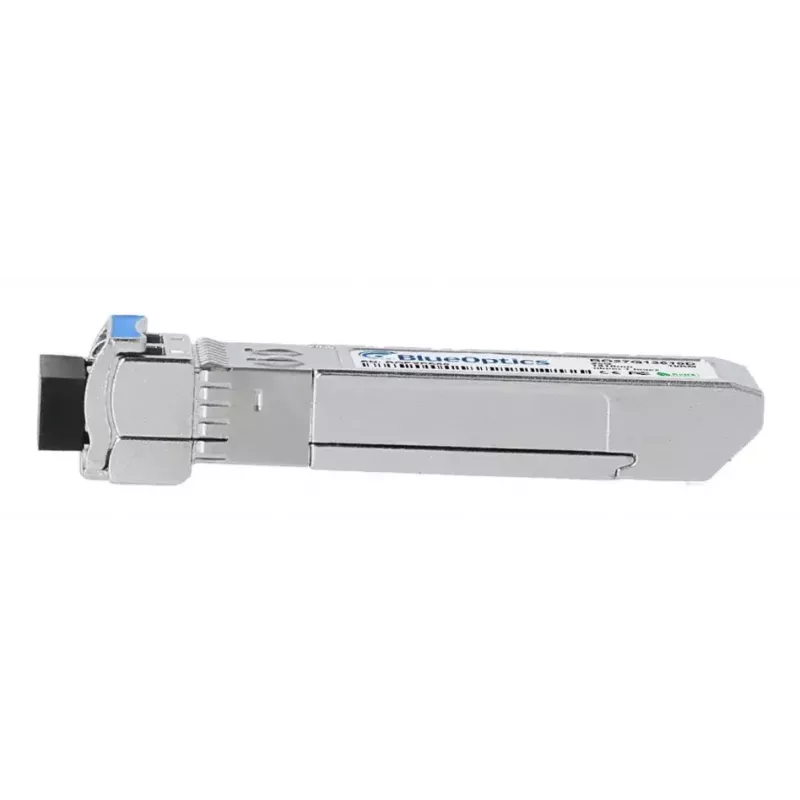

Modulo ricetrasmettitore in fibra ottica BlueOptics CPAC-TR-25LR-ADP-BO SFP28 LC alluminio

The BlueOptics CPAC-TR-25LR-ADP-BO SFP28 LC Aluminium is a single-mode fiber optic transceiver module designed for 25GBASE-LR links. Housed in a lightweight aluminium enclosure (approx. 20 g) and equipped with an SFP28 interface and LC duplex connector, this module supports long-reach optical transmission up to several kilometers over single-mode fiber. It implements transmitter and receiver optics at 1310 nm and follows MSA interoperability guidelines for use in compatible network equipment.

Advantages

The module provides 25 Gbps line-rate performance with an LC duplex connection in a compact SFP28 form factor. Aluminium housing offers mechanical durability and thermal dissipation while keeping weight low. Compliance with common MSA standards ensures compatibility with major networking platforms that accept 25G SFP28 modules. The transceiver is suitable for Ethernet and related high-speed applications where stable single-mode optical links and low electromagnetic interference are required.

Suitable for

• 25G Ethernet uplinks between switches and routers
• Long-reach single-mode fiber links within campus and data center interconnects
• High-speed connections for storage systems and aggregation equipment
• Replacement or expansion of SFP28 ports in compatible network hardware

Key specifications

• Form factor: SFP28
• Data rate: 25 Gbps (25GBASE-LR)
• Optical wavelength: 1310 nm transmitter and receiver
• Fiber type: Single-mode fiber (SMF)
• Connector: LC duplex
• Typical reach: long-reach (up to multiple kilometers, depending on fiber and link budget)
• Housing material: Aluminium
• Weight: approximately 0.02 kg

How to use

Insert the SFP28 transceiver into a compatible SFP28 port until it latches, following the host equipment manufacturer's insertion procedure. Connect an LC duplex single-mode patch cable with correct polarity to the module's LC connector. Ensure the connected device supports 25GBASE-LR optics and configure the interface settings on your switch, router or host as required. After insertion and link-up, verify the link status and performance through the host system management interface or monitoring tools.

Recommendations

For optimal performance, use single-mode fiber with appropriate attenuation and an LC duplex patch cord certified for 25G links. Verify compatibility with the target hardware and firmware; if necessary, request a test sample to confirm functionality in your environment. Avoid exposing the module to excessive mechanical stress or contaminants on the optical ports; keep protective caps on unused connectors and perform standard cleaning procedures before mating.
