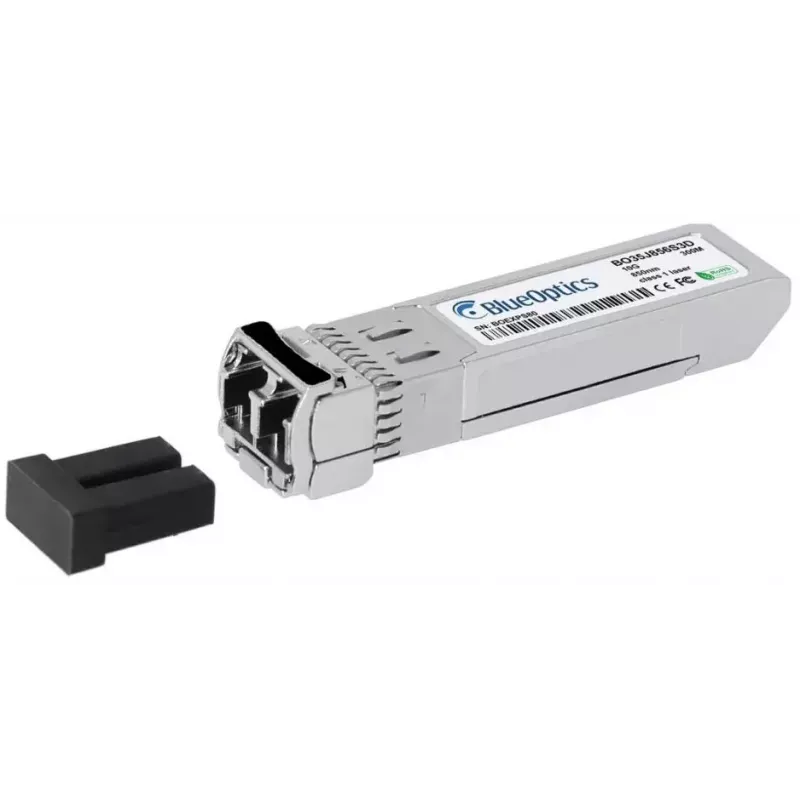

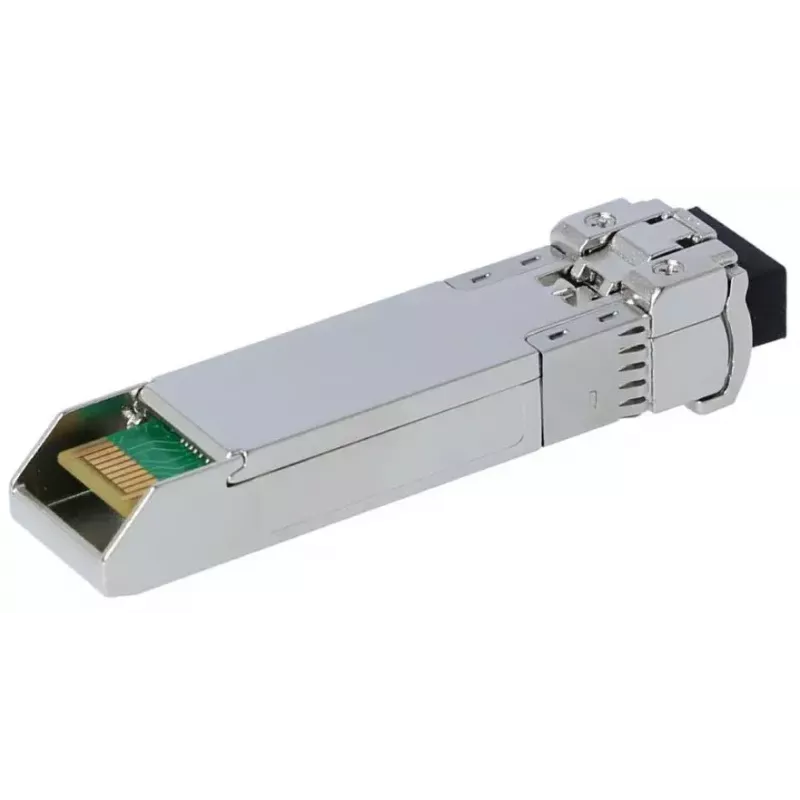

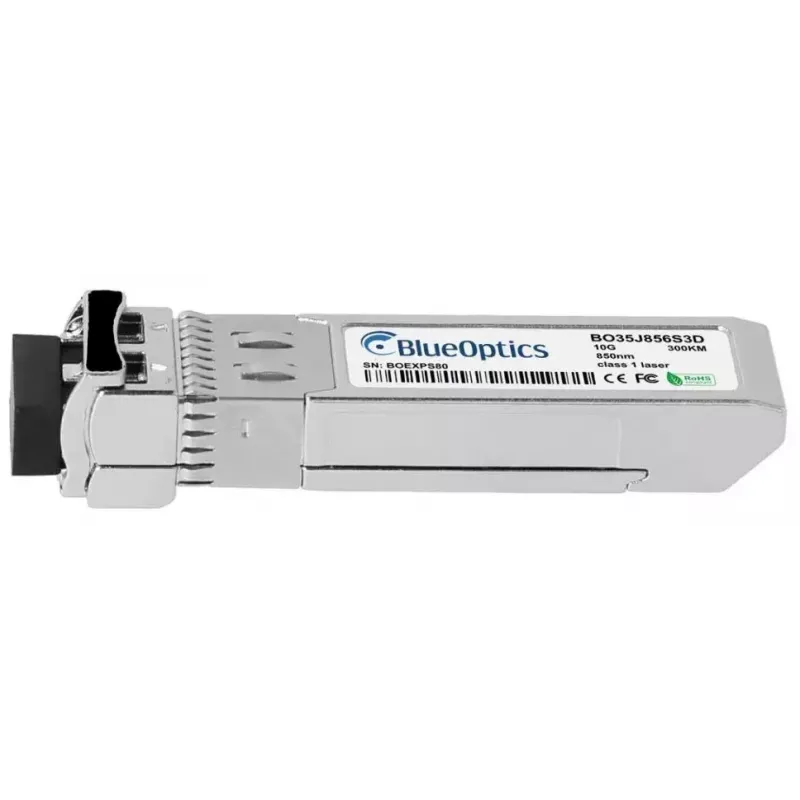

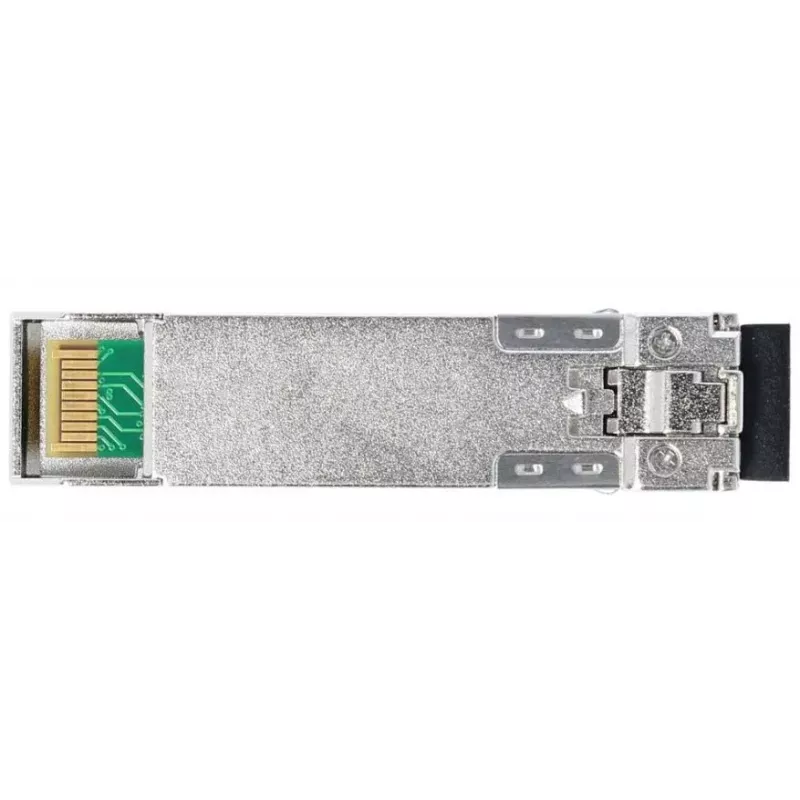

Modulo ricetrasmettitore in fibra ottica BlueOptics ETAHVJF-L-BO SFP+ 300m alluminio

The BlueOptics ETAHVJF-L-BO SFP+ 300m Aluminium is a 10GBASE-SR fiber optic transceiver module designed for short-range high-speed data transmission over multimode fiber. Housed in a lightweight aluminium casing and weighing 20 grams, this SFP+ module uses LC duplex connectors and operates at 850 nm for both transmitter and receiver. It conforms to MSA standards and supports data rates up to 10 Gbit/s with a typical maximum reach of 300 metres, making it suitable for modern switch, router and storage interfaces that accept SFP+ modules.

Advantages

The module provides 10G performance in an industry-standard SFP+ form factor, offering plug-and-play compatibility with equipment that supports MSA-compliant transceivers. Its aluminium housing improves mechanical durability and thermal behaviour while keeping the weight low. Built with high-quality optical and electronic components, the transceiver supports Digital Diagnostics Monitoring (DDM/DOM) for real-time monitoring of supply voltage, laser bias current, transmitted and received optical power, and temperature. The design minimizes susceptibility to electromagnetic interference and is optimized for multimode fiber links with LC duplex connections.

Suitable for

Key specifications

How to use

Insert the BlueOptics SFP+ transceiver into a compatible SFP+ port on your switch, router or storage device until it latches. Connect LC duplex multimode fiber patch cords to the module, ensuring correct transmit/receive orientation. Verify that the host hardware recognizes the module and that the DDM/DOM telemetry is available if supported by the equipment. Configure the network interface on the host device as needed for the intended protocol (Ethernet, FCoE, etc.). For best results, use high-quality multimode fiber and appropriate patch panels or adapters to maintain link performance.

Recommendations

Ensure the host platform supports MSA-compliant SFP+ transceivers and enable DDM/DOM monitoring where available. Use OM3/OM4 multimode fiber for reliable 300 m links at 10 Gbit/s and avoid tight bends or contaminated connectors. Store and handle the transceiver and fiber connectors in a dust-free environment and follow ESD precautions during installation and removal.
