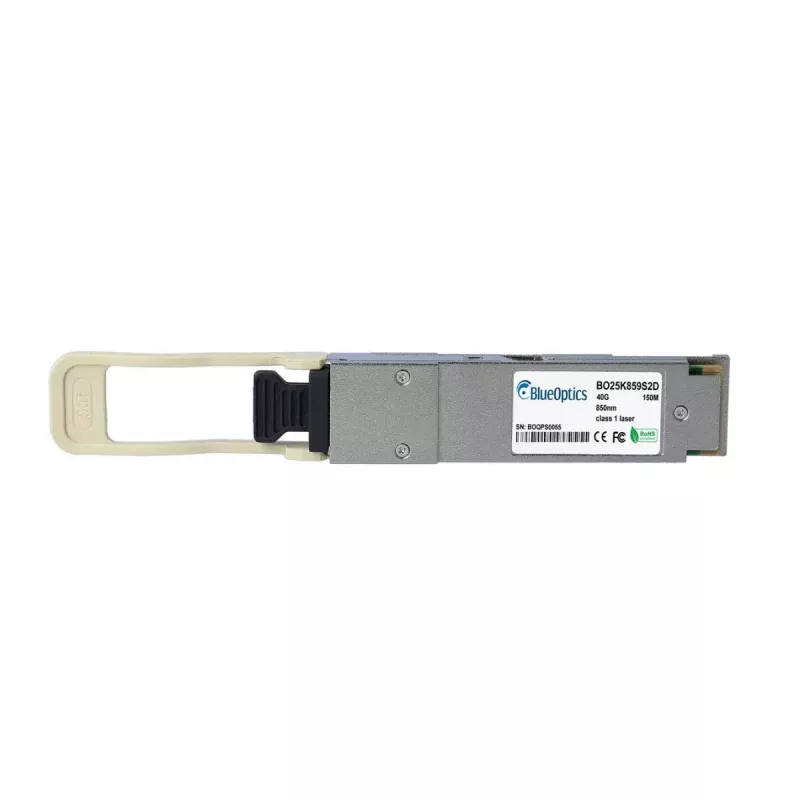

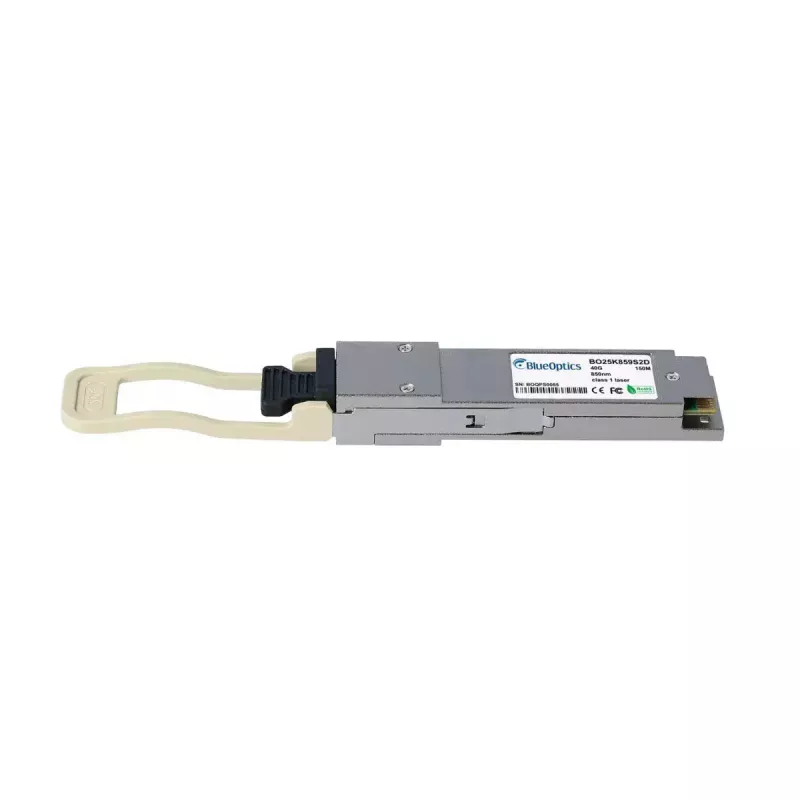

Modulo ricetrasmettitore in fibra ottica BlueOptics MMA1B00-F030D-BO 40000 Mbit/s QSFP

The BlueOptics MMA1B00-F030D-BO is a QSFP fiber optic transceiver module designed for 40 Gbit/s high-speed data transmission over multimode fiber. The module uses an MPO/MTP connector, supports a maximum link distance of up to 150 meters, and is supplied in silver colour. It is compact and lightweight, making it suitable for dense rack and data center installations that require 40G connectivity with standardized QSFP form factor and multimode optics.

Advantages

This QSFP transceiver supports a maximum data transfer rate of 40000 Mbit/s and is implemented according to MSA-compatible QSFP standards, enabling interoperability with hardware platforms that accept 40GBASE-SR4 optics. The MPO/MTP connector allows parallel optical lanes for simultaneous transmit and receive channels, while multimode operation reduces the need for single-mode cabling in short-reach links. The lightweight silver housing and tested compatibility approach contribute to reliable physical installation and stable optical performance in short-distance high-throughput links.

Suitable for

Key specifications

How to use

Install the transceiver into a QSFP port on a compatible switch, router, or other networking device while the host supports 40GBASE-SR4 optics. Connect an MPO/MTP multimode patch cord between this transceiver and the corresponding MPO/MTP port or patch panel, observing correct polarity and fiber alignment. Ensure the connected equipment is configured for 40 Gbit/s operation and that SFP/QSFP port settings and firmware are compatible with third-party transceivers. Power on the devices and verify link status and signal quality via the host management interface or network monitoring tools.

Recommendations

Use high-quality multimode MPO/MTP patch cords and maintain clean connector endfaces to maximize signal integrity. For reliable diagnostics and monitoring, verify that the host device supports digital diagnostics (DDM/DOM) if remote monitoring of temperature, optical power and supply voltage is required. Follow standard ESD precautions when handling the transceiver and store or transport it in protective packaging when not in use.
