Modulo ricetrasmettitore in fibra ottica BlueOptics Q28-511T-BO 100000 Mbit/s QSFP28

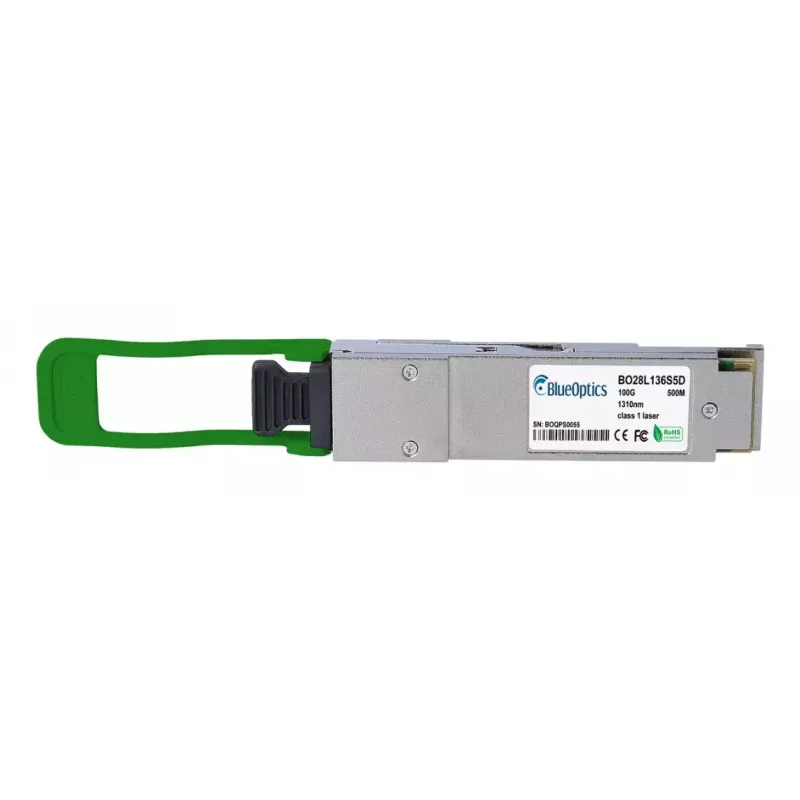

The BlueOptics Q28-511T-BO is a QSFP28 fiber optic transceiver module designed for 100 Gbit/s data transmission. It features an LC duplex fiber connector, silver housing and compact dimensions with a weight of 40 g. Engineered according to MSA standards and tested for compatibility with common hardware platforms, this module supports 100GBASE-DR links over fiber and includes digital diagnostics for real-time monitoring of optical parameters.

Advantages

The module provides a high maximum data transfer rate of 100000 Mbit/s and supports transmission distances up to 500 m over suitable fiber. Compliance with MSA specifications ensures wide device compatibility and interchangeable operation in switches, routers and storage systems. Built from selected high-quality optical components, it offers an above-average MTBF of 3,000,000 hours, improving availability and reducing maintenance cycles. Integrated digital diagnostics (DDM/DOM) enable remote monitoring of supply voltage, laser current, optical transmit/receive power and temperature.

Suitable for

Key specifications

How to use

Install the QSFP28 transceiver into a compatible QSFP28 port on the network device until it seats firmly and the latch engages. Connect LC duplex fiber patch cables taking care to match transmit and receive channels. Verify link status on the host device and enable DDM/DOM monitoring if supported by the hardware to observe optical parameters and health data. Follow the host equipment vendor instructions for any required software or firmware settings to ensure compatibility.

Recommendations

Use quality multimode or single-mode fiber and appropriate LC patch cables matched to the intended link distance. Ensure that the host hardware supports 100GBASE-DR and DDM/DOM if remote diagnostics are required. Observe manufacturer cleaning and handling guidelines for fiber connectors to maintain signal integrity and minimize insertion loss.
