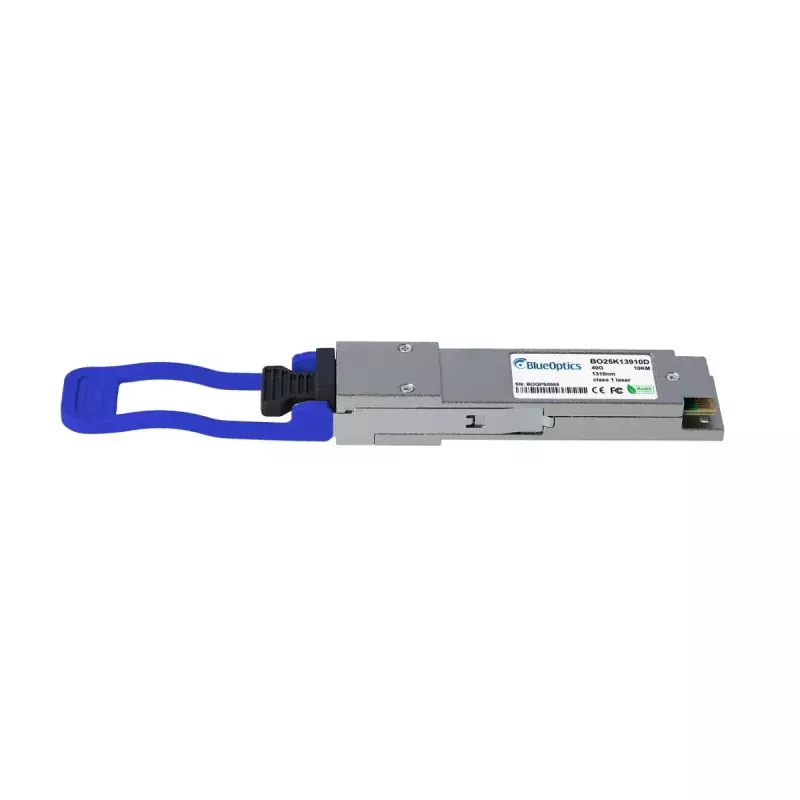

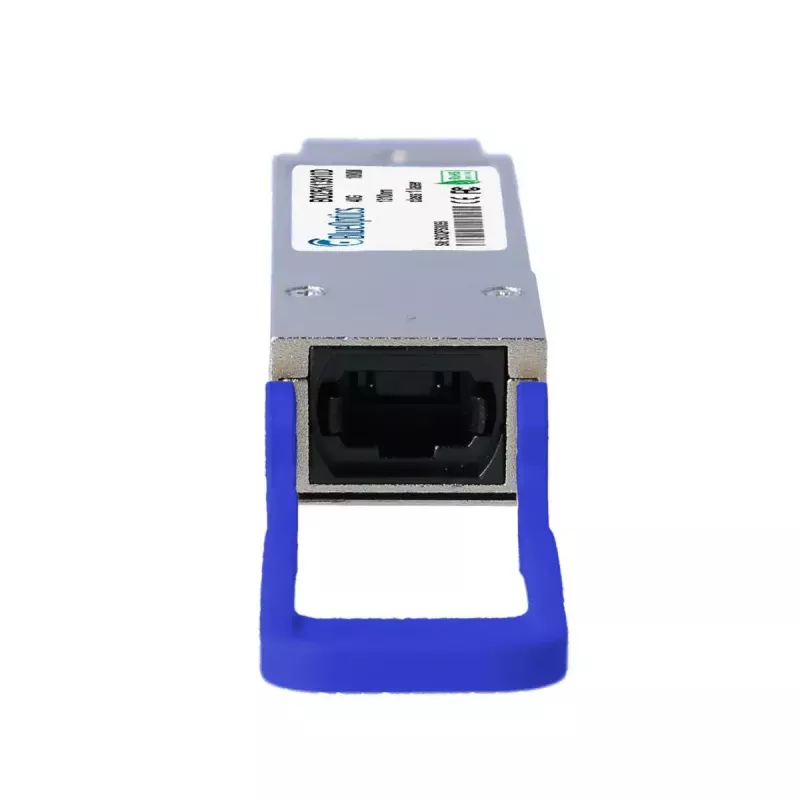

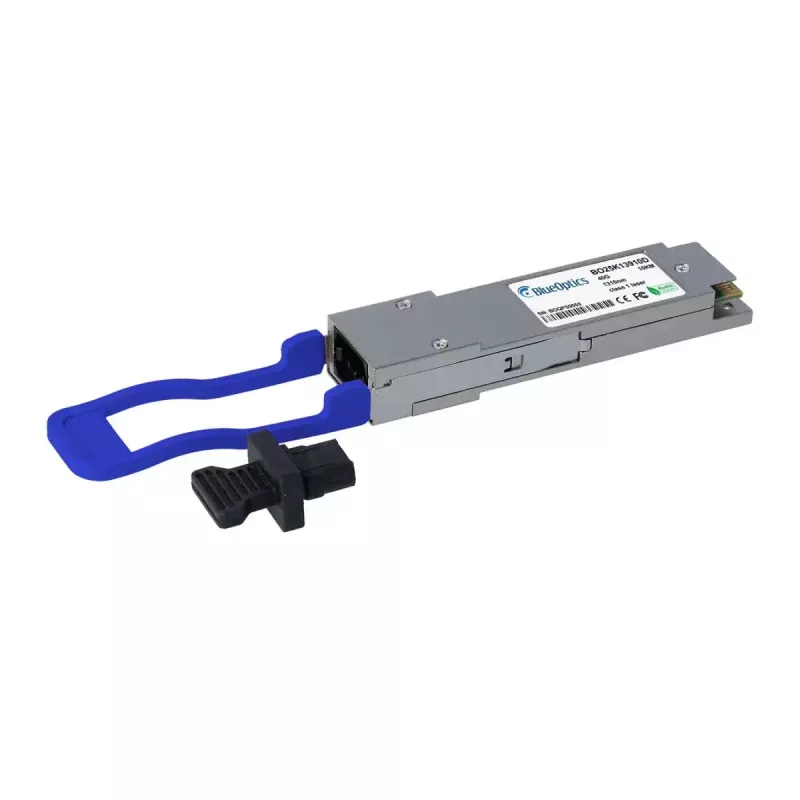

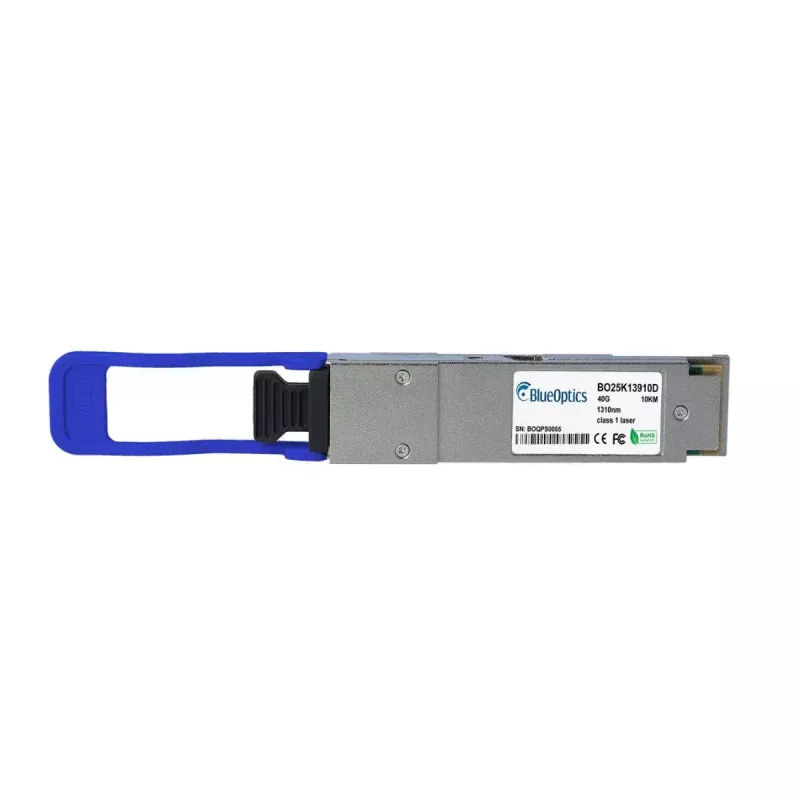

Modulo ricetrasmettitore in fibra ottica BlueOptics QSFPP-4X10GD-LR-BO 40000 Mbit/s

The BlueOptics QSFPP-4X10GD-LR-BO is a 40 Gbit/s fiber optic transceiver module with a QSFP interface designed for high-speed optical links. It operates at a 1310 nm wavelength and uses MPO/MTP connectivity according to MSA standards, providing simultaneous transmit and receive functions over multimode fiber. The module is compatible with a wide range of networking hardware from vendors that support the corresponding 40GBASE-PLR4 QSFP specification and includes Digital Diagnostics Monitoring (DDM/DOM) for real-time status of supply voltage, laser currents, optical power and temperature. With an MTBF of 3,000,000 hours and a compact 40 g form factor in silver housing, the transceiver is intended for stable, long-term deployment in data center and enterprise environments.

Advantages

The transceiver supports aggregate data rates up to 40,000 Mbit/s with MPO/MTP connectivity, enabling high-bandwidth links between switches, routers and storage systems while being compliant with MSA QSFP mechanical and electrical specifications. Built with industry-grade optical lasers and IC components, the module offers extended operating life and reduced maintenance needs. Integrated digital diagnostics facilitate remote monitoring and fault analysis. Its QSFP form factor allows direct insertion into compatible ports for straightforward installation and hot-pluggable replacements.

Suitable for

Key specifications

How to use

Install the BlueOptics QSFP module into a compatible QSFP port on switches, routers or other network devices while the device is powered on or following the host vendor's hot-plug guidelines. Connect an MPO/MTP fiber patch cable to the transceiver’s MPO/MTP interface, ensuring correct fiber polarity and that the other end mates with a compatible MPO/MTP connector or patch panel. If the host system supports DDM/DOM, enable or query diagnostics via the platform's management interface to monitor optical power, temperature and supply metrics. Follow device and cabling specifications for link distance and fiber type to achieve the expected 40 Gbit/s performance.

Recommendations

Verify compatibility with the target hardware platform and enable DDM/DOM support on the host device if remote diagnostics are required. Use quality MPO/MTP patch cables and appropriate cable management to maintain optical performance. Observe ESD precautions during handling and avoid excessive bending of fiber cables. For critical links, test the installed transceiver and fiber link with optical power meters and diagnostic tools before putting the connection into production.
