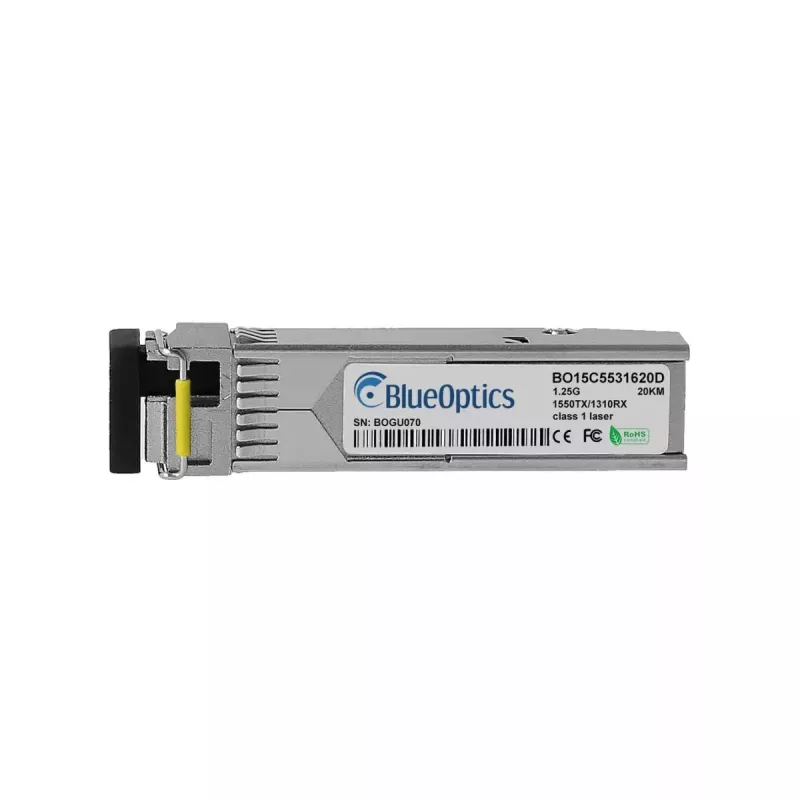

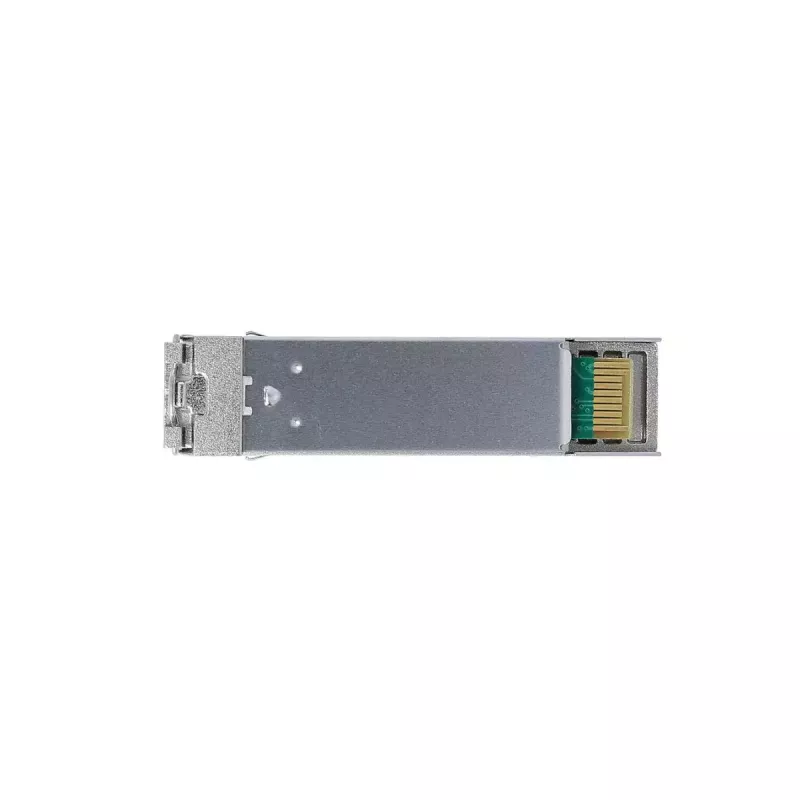

Modulo ricetrasmettitore in fibra ottica BlueOptics SFP-1GT15R13BX10-I-BO LC alluminio

The BlueOptics SFP-1GT15R13BX10-I-BO LC Aluminium is a single-mode fiber optic transceiver module with an SFP form factor and LC connector. It supports 1.25 Gigabit Ethernet data rates and is designed for point-to-point links over long distances. The module is lightweight (0.02 kg) and constructed in an aluminium housing to ensure mechanical stability and efficient heat dissipation during continuous operation. With a maximum transfer distance of 20,000 m, this transceiver is intended for long-reach fiber connections in data centers and enterprise networks.

Advantages

The transceiver supports 1.25 Gbit/s optical interfaces and uses LC simplex connectivity for straightforward installation in standard SFP slots. Its single-mode design enables long-distance transmission up to 20 km, while the aluminium housing provides a compact, durable solution that is easy to handle and install. The module is compatible with equipment that accepts SFP transceivers with LC connectors, offering predictable physical and optical characteristics for stable link operation.

Suitable for

Key specifications

How to use

Install the transceiver into any compatible SFP slot on network equipment while the device is powered down or following the vendor’s hot-swap guidance. Connect a single-mode LC patch cable to the LC port, ensuring correct transmitter/receiver orientation for BX type links. Verify link status on the host device and configure interface settings (speed, duplex, protocol) according to the network design. If available, enable digital diagnostics monitoring (DDM/DOM) on the host to observe real-time parameters such as optical power and module temperature.

Recommendations

Use high-quality single-mode fiber patch cords and maintain clean LC connectors to achieve specified reach and signal quality. Confirm host device support for 1.25 Gbit/s SFP modules and, when possible, test compatibility in your hardware and software environment before deploying at scale.
