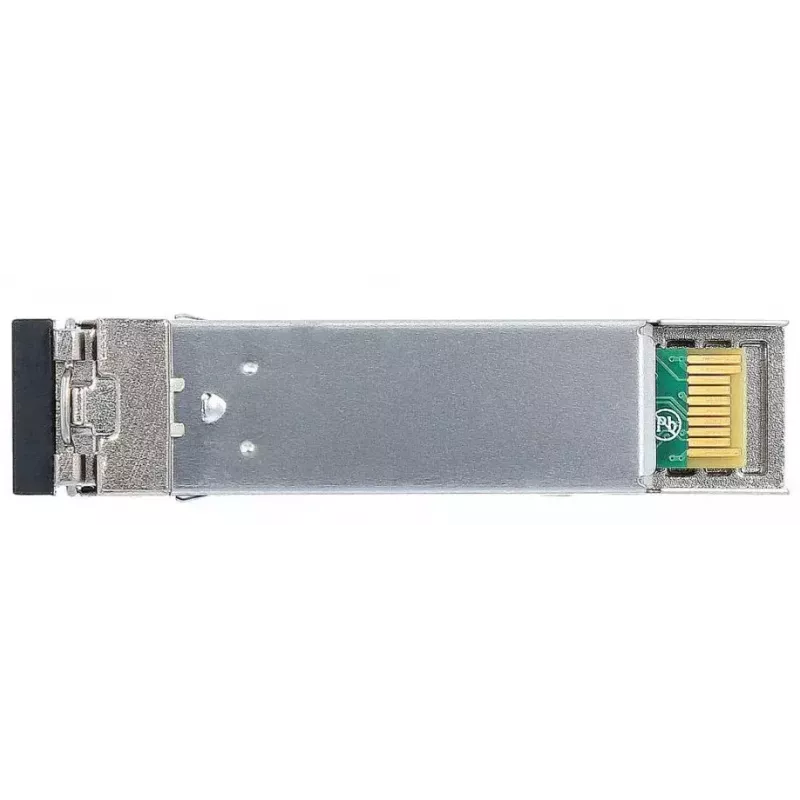

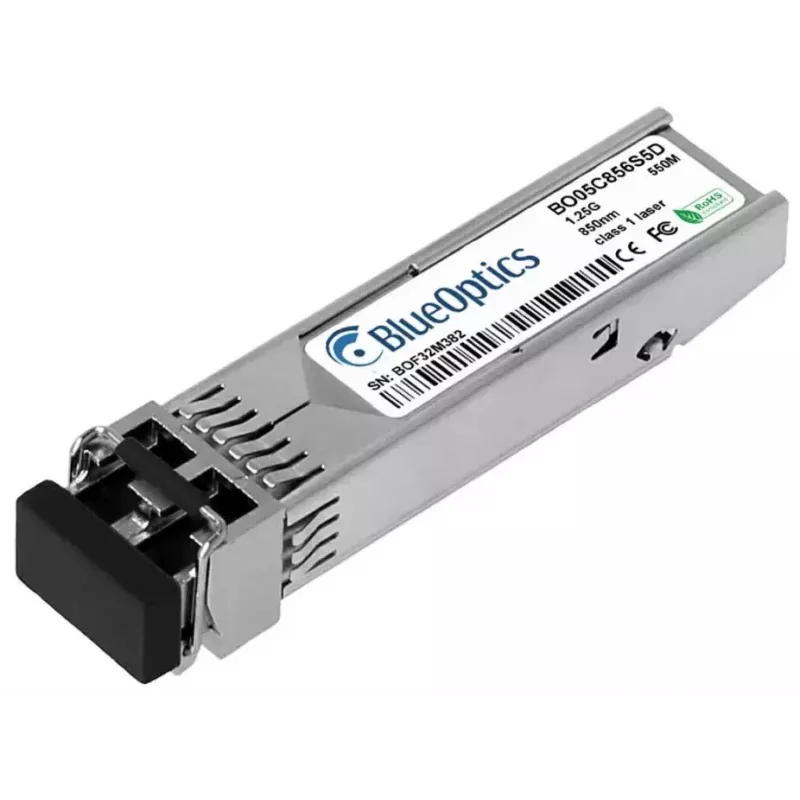

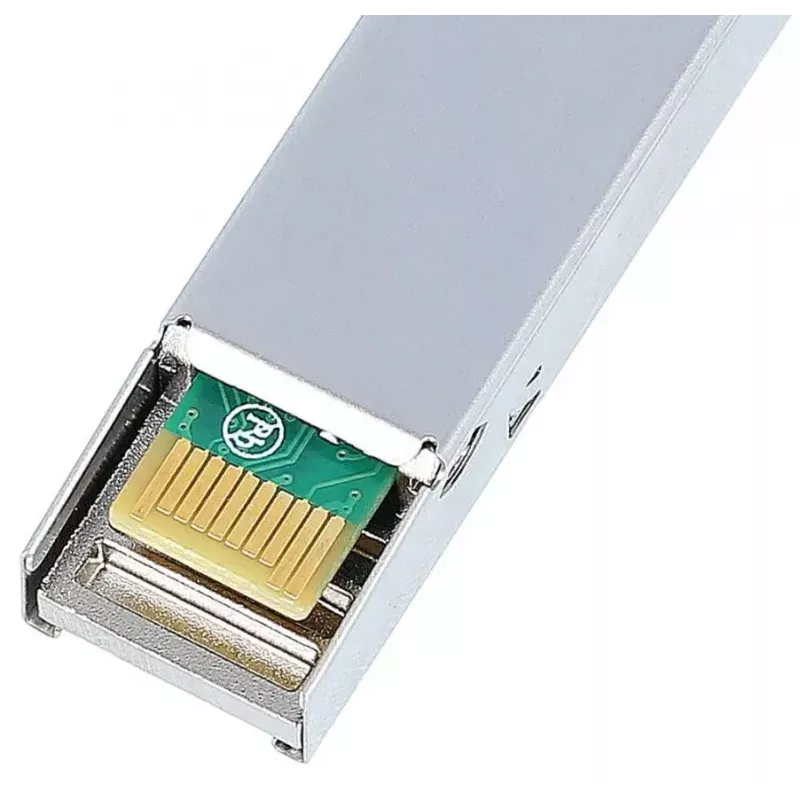

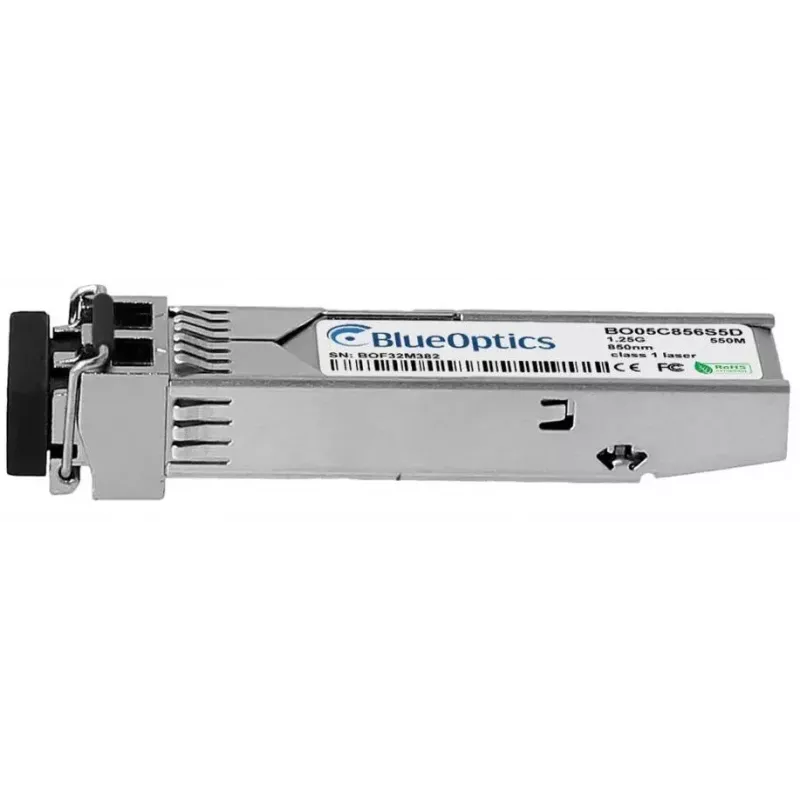

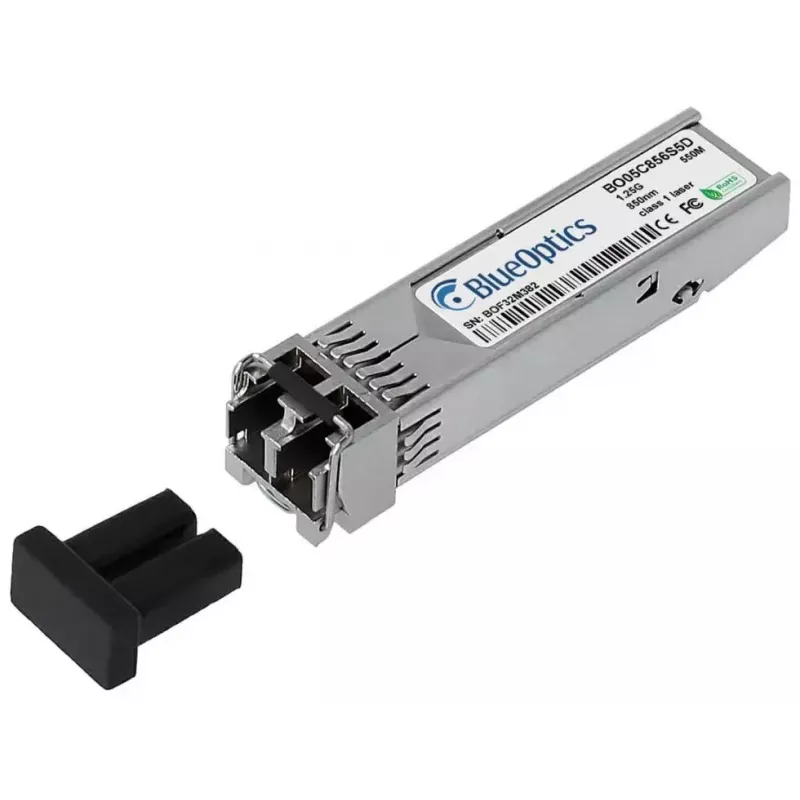

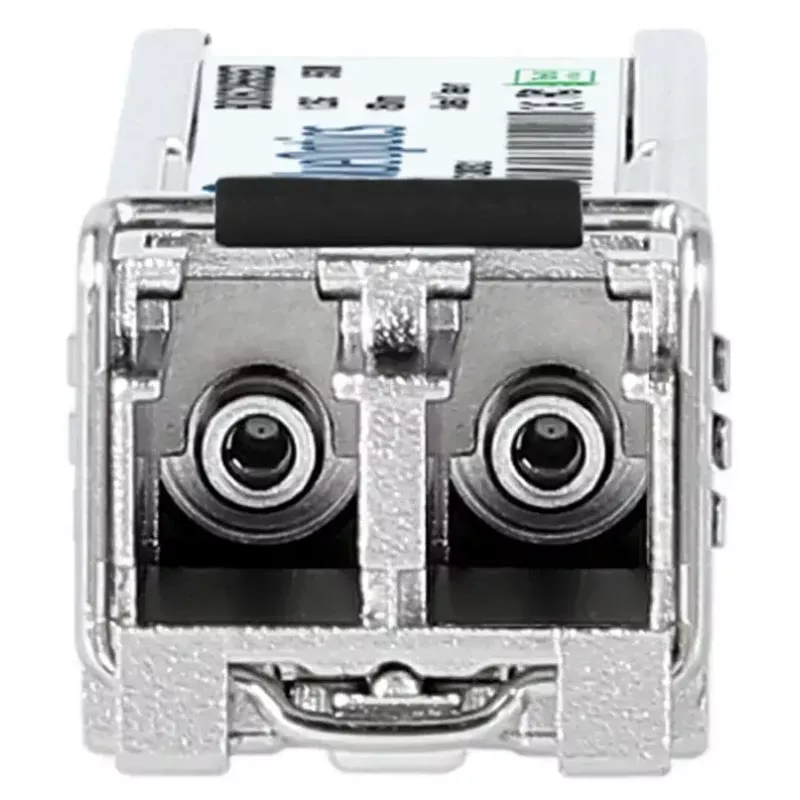

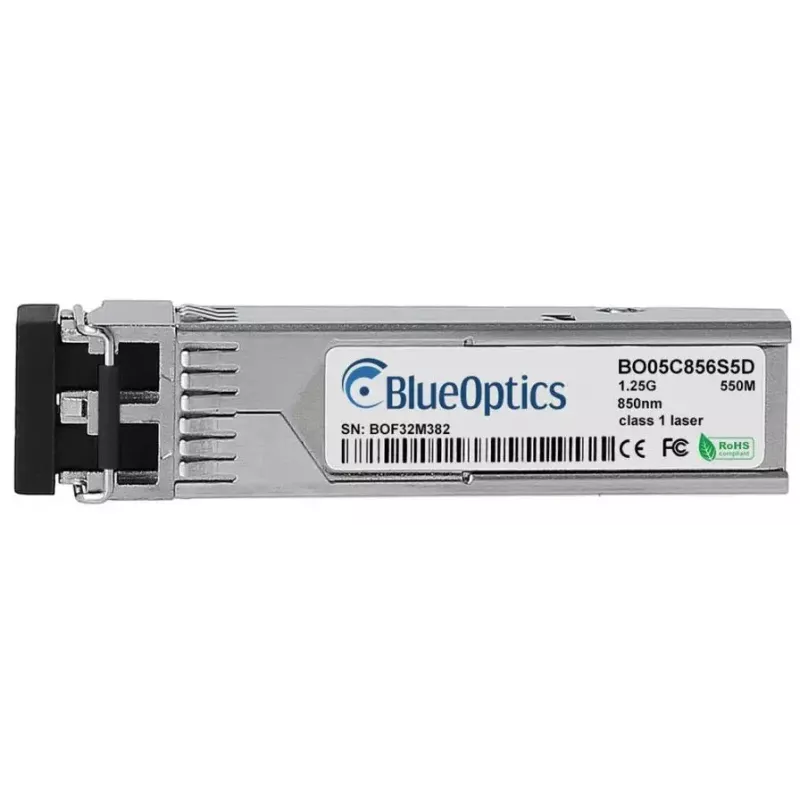

Modulo ricetrasmettitore in fibra ottica BlueOptics X6567-R6-BO 1250 Mbit/s SFP 850 nm

The BlueOptics X6567-R6-BO is a compact SFP fiber optic transceiver module designed for multimode fiber links. It supports a maximum data transfer rate of 1250 Mbit/s at a wavelength of 850 nm and uses an LC duplex connector compatible with MSA SFP ports. The module is RoHS compliant, weighs approximately 20 g and is intended for integration into network equipment that accepts SFP form-factor transceivers for short-range optical Ethernet and related protocols.

Advantages

The transceiver provides a standards-based 1000Base-SX class interface for optical links over multimode fiber, enabling simultaneous transmit and receive through an LC duplex connection. It is produced to MSA-compatible dimensions and signalling, facilitating interoperability with a wide range of switches, routers and storage devices that accept SFP modules. Lightweight and compact, the module is suitable for dense installations and supports Digital Diagnostic Monitoring (DDM/DOM) when the host hardware exposes that capability, which assists in remote monitoring of link parameters.

Suitable for

Key specifications

How to use

Insert the SFP transceiver into the SFP port of a powered-off or hot-pluggable network device following the device manufacturer’s installation guidelines. Connect LC duplex multimode fiber patch cords to the transmit (Tx) and receive (Rx) ports on the module, ensuring correct polarity. Verify link status and speed on the host device. If the host platform supports DDM/DOM, enable or query the diagnostic interface to monitor supply voltage, laser bias, transmit power, receive power and module temperature for troubleshooting and preventive maintenance.

Recommendations

Use high-quality multimode patch cords and proper patch-panel routing to achieve the rated reach and signal integrity. Confirm device compatibility with the host system documentation before deployment and ensure firmware or software in the host supports SFP modules and DDM/DOM functions as needed.
