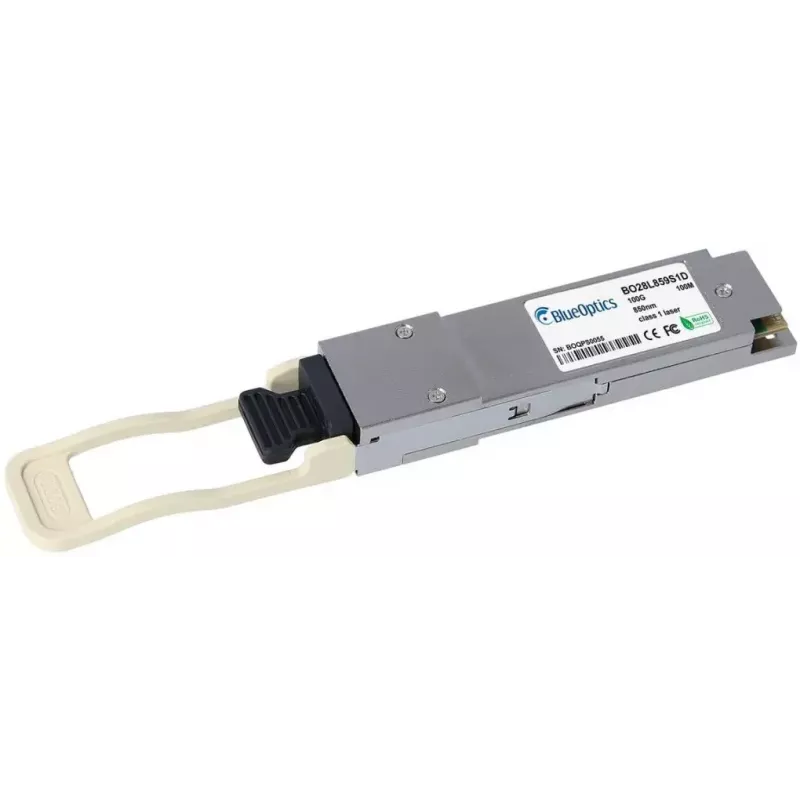

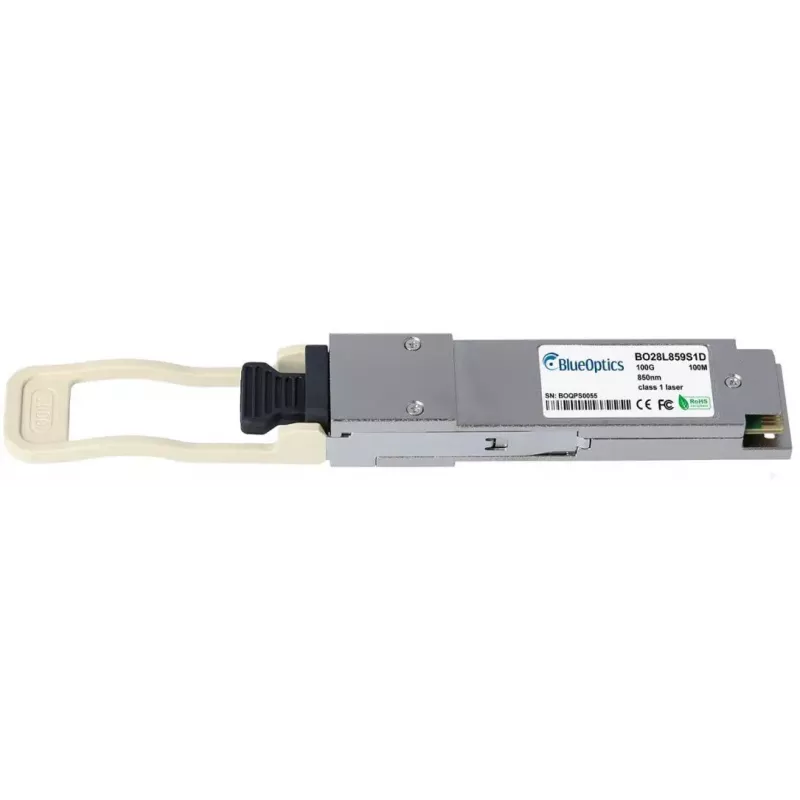

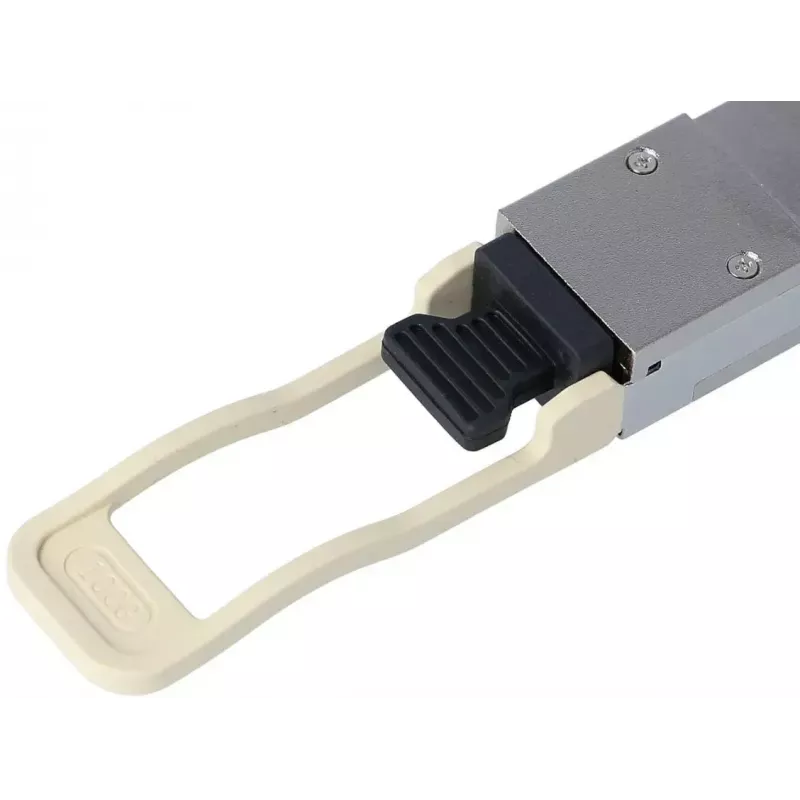

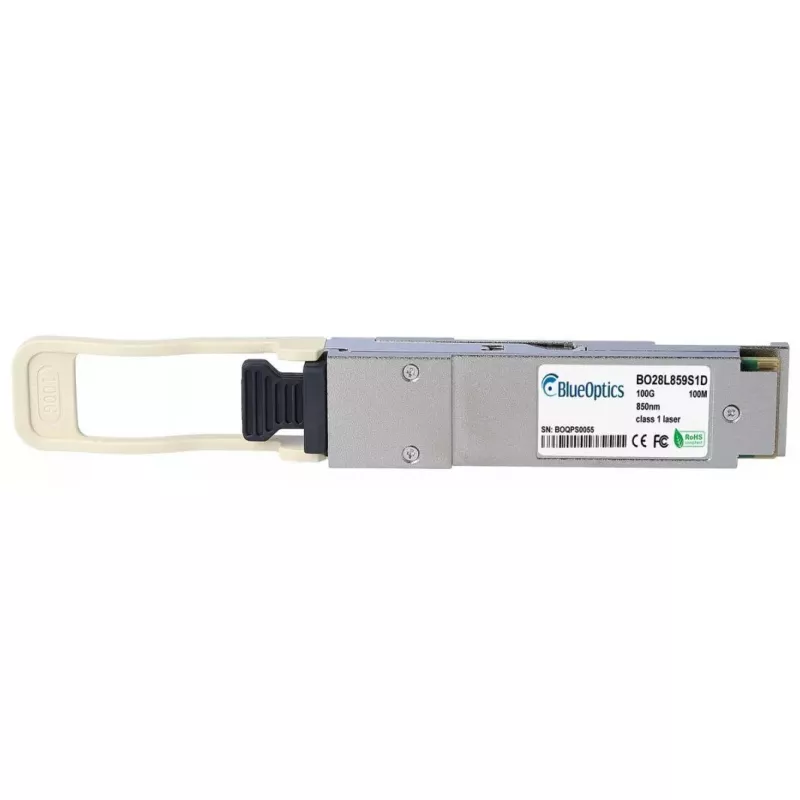

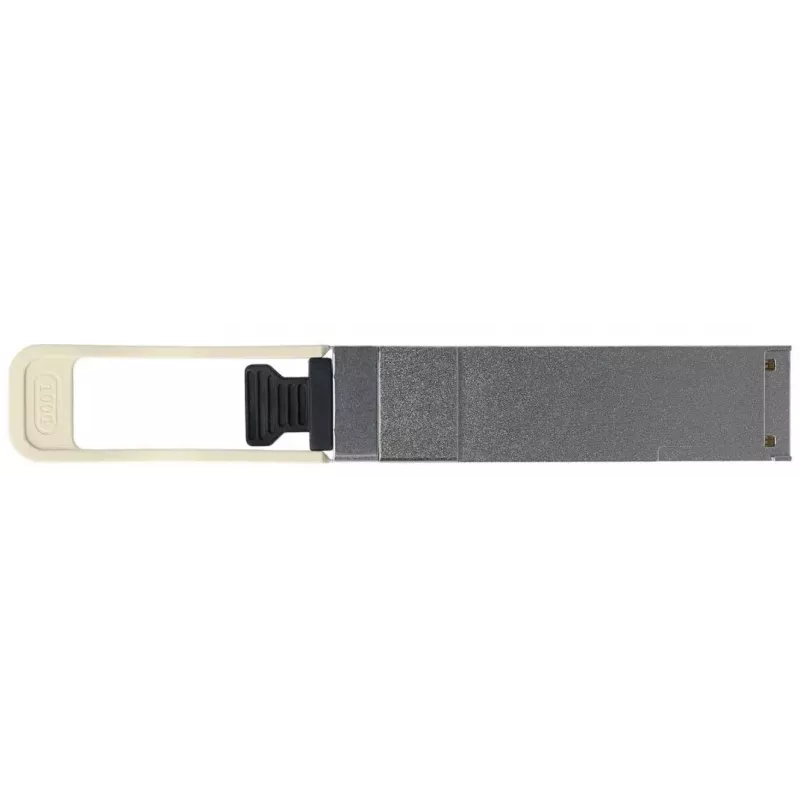

Modulo ricetrasmettitore QSFP BlueOptics QSFP-100G-SR4-T2-BO fibra ottica MPO

The BlueOptics QSFP-100G-SR4-T2-BO is a QSFP28 fiber optic transceiver module designed for short-reach 100G Ethernet and other high-speed optical applications. It uses an MPO/MTP interface and multimode fiber with 850 nm transmit and receive wavelengths to support 100GBASE-SR4 links. The module is housed in an aluminium enclosure and has a lightweight design (approximately 0.04 kg), making it suitable for dense switch and router ports that conform to MSA QSFP28 form-factor standards.

Advantages

This QSFP28 transceiver supports 100 Gbit/s data rates over multimode fiber and uses a standardized MPO connector for parallel optics, enabling straightforward integration into systems that accept QSFP28 modules. The aluminium housing provides mechanical robustness while keeping the weight low. The module is built to meet MSA QSFP28 mechanical and optical interfaces and is compatible with network equipment designed for 100GBASE-SR4 operation.

Suitable for

Key specifications

How to use

Install the QSFP-100G-SR4-T2-BO into a compatible QSFP28 slot on a switch, router or other networking device while the host is powered according to the hardware vendor’s guidelines. Use an MPO/MTP multimode fiber patch cord and ensure correct polarity and ribbon alignment for SR4 parallel optics. After insertion, verify link state and negotiated speed through the host device management interface and confirm that the port firmware or software supports 100GBASE-SR4 operation and DDM/DOM reporting if required.

Recommendations

For optimal link performance, use high-quality multimode fiber and MPO/MTP patch cords rated for 100GBASE-SR4. Verify that the connected hardware supports QSFP28 modules and the SR4 optical standard, and follow the switch/router vendor’s instructions for module compatibility and DDM/DOM monitoring.
