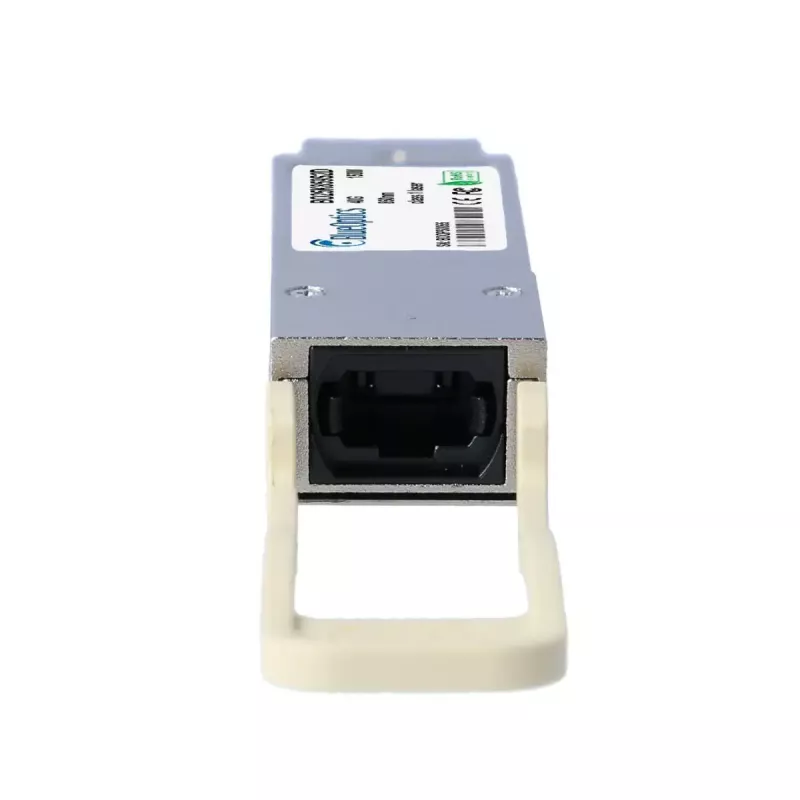

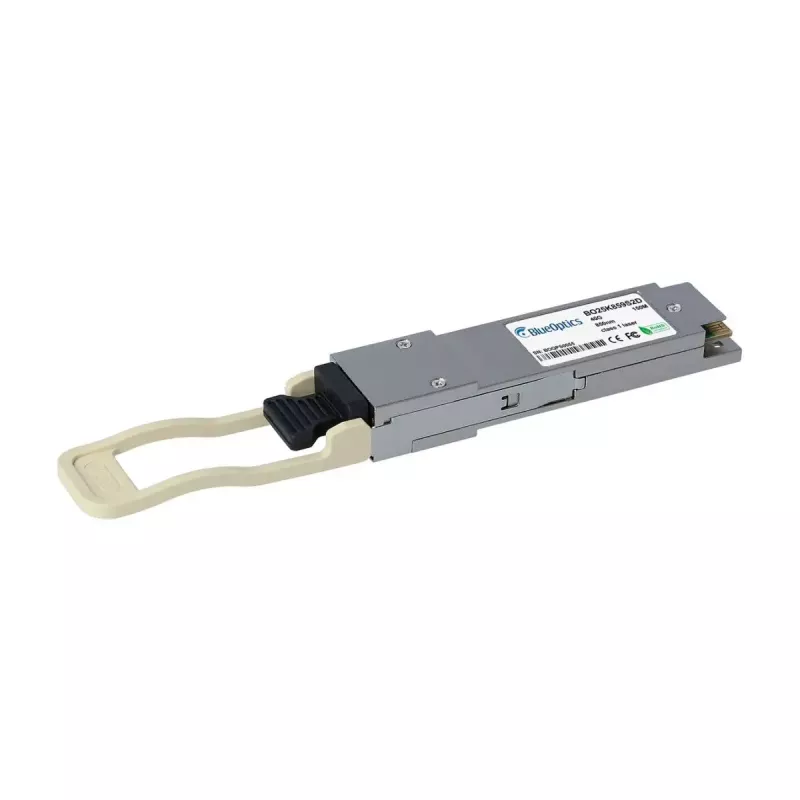

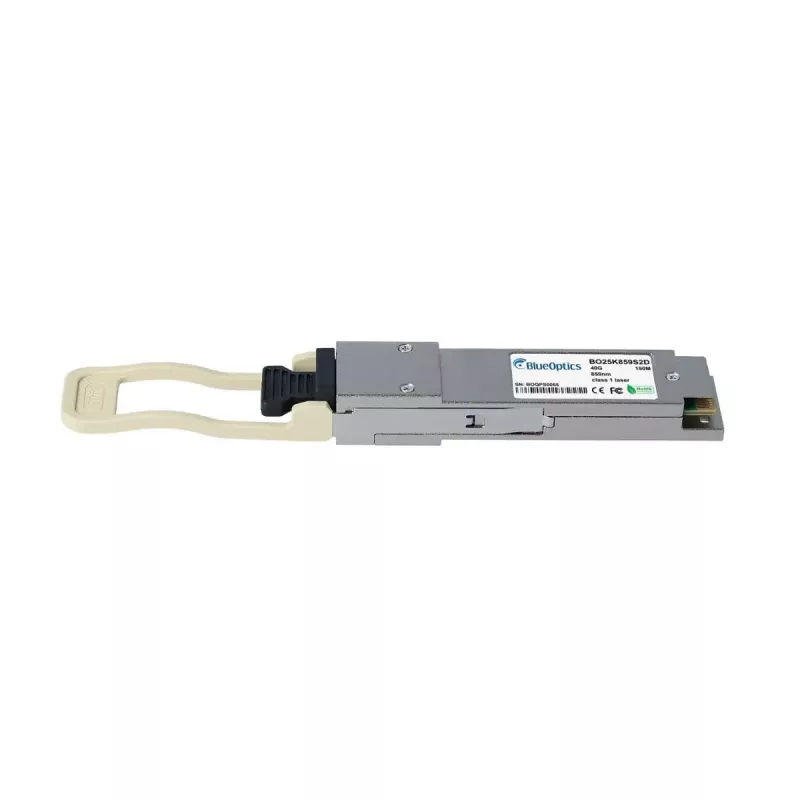

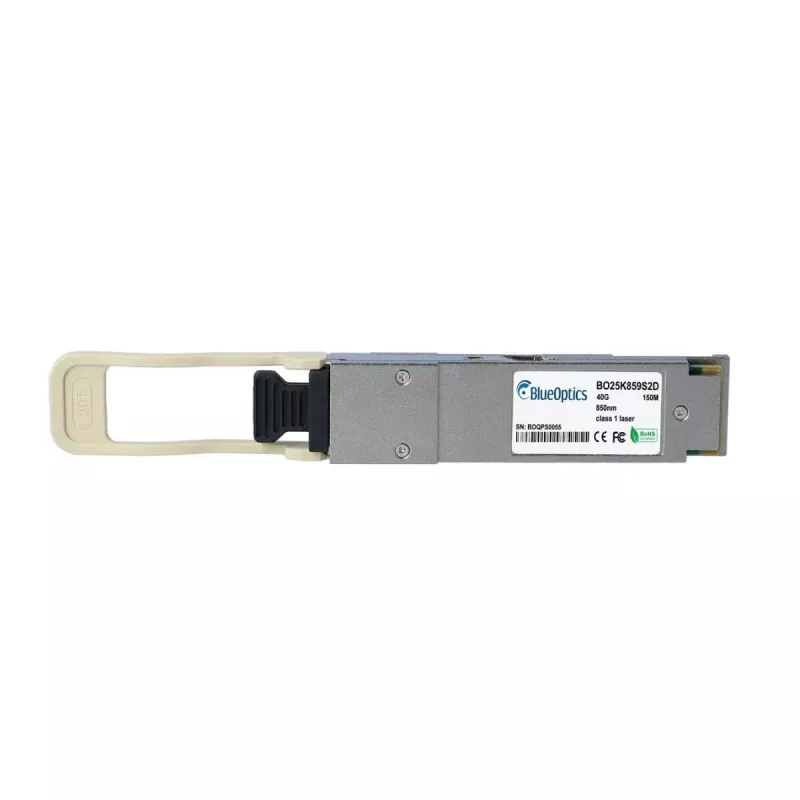

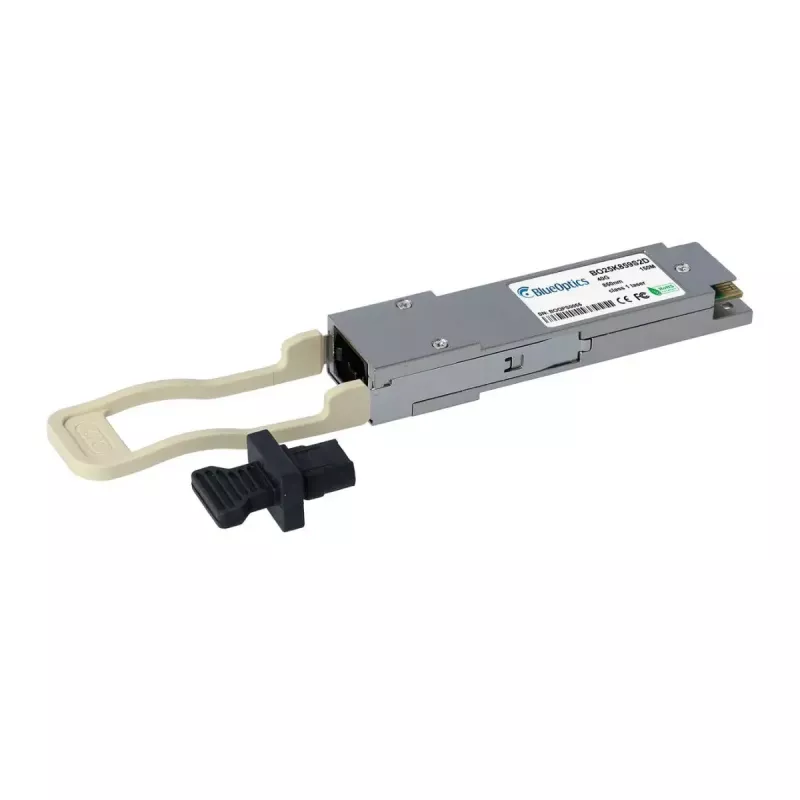

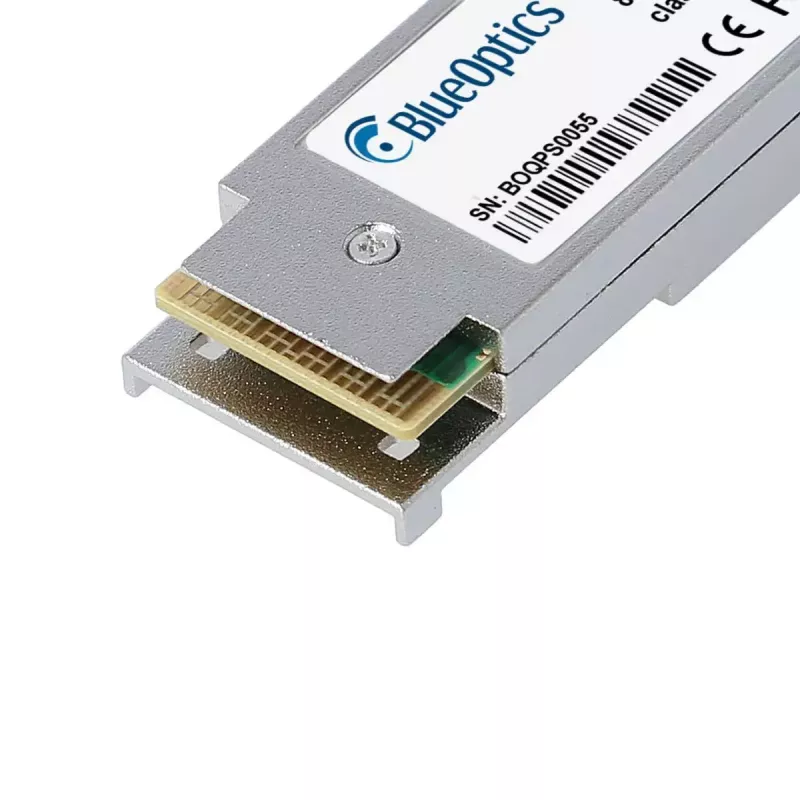

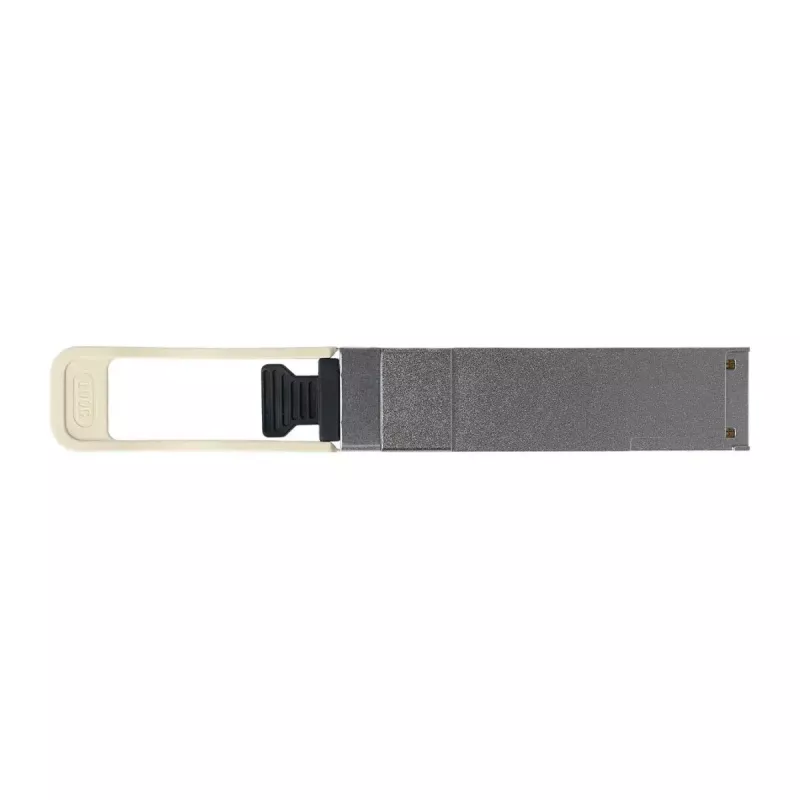

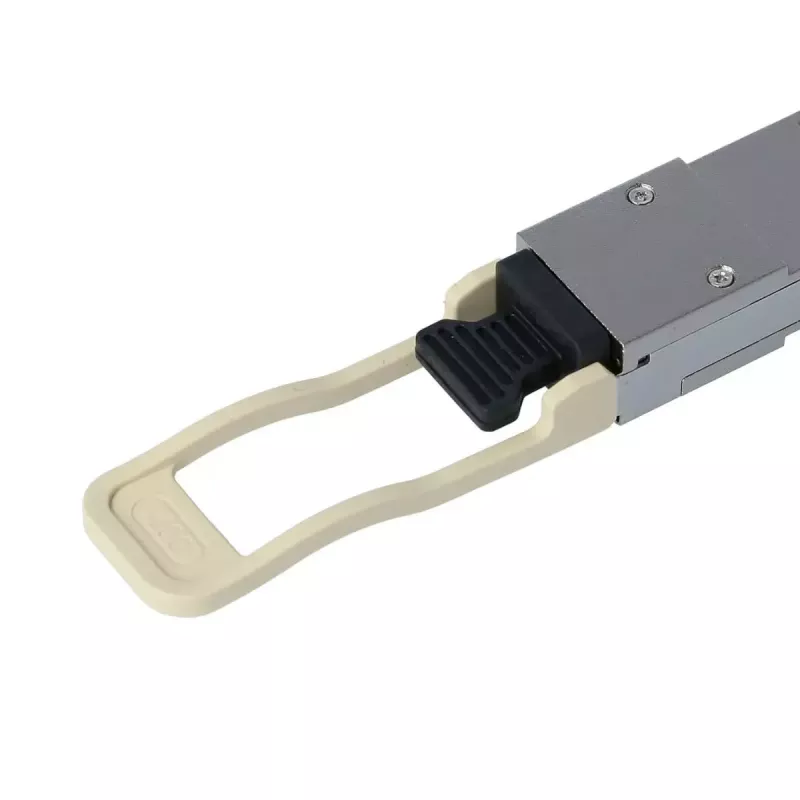

BlueOptics QSFP-40G-SR4-SS-BO transceiver QSFP+ 40GBASE-SR4, 850 nm, 150 m, MPO

The BlueOptics QSFP-40G-SR4-SS-BO is a QSFP+ 40GBASE-SR4 transceiver with an 850 nm wavelength and MPO/MTP connector, designed for multimode fiber. It supports a maximum transmission distance of 150 m and is suitable for 40 Gigabit Ethernet applications.

Key features

• QSFP+ 40GBASE-SR4 transceiver
• 850 nm wavelength
• 150 m maximum transmission distance
• MPO/MTP connector
• Supports multimode fiber (MMF)
• Ethernet LAN: Yes

Specifications

• Brand: BlueOptics
• MPN: QSFP-40G-SR4-SS-BO
• SFP transceiver type: Fiber optic
• Maximum data transfer rate: 40 Mbit/s
• Interface: QSFP
• Optical cable connector: MPO, MTP
• Supported fiber cable diameter (core/cladding): 50/125 µm
• Tx wavelength (max.): 850 nm
• Rx wavelength (max.): 850 nm
• Ethernet interface type: 40 Gigabit Ethernet
• Network standard: IEEE 802.3bm
• Housing material: Metal
• Mean time between failures (MTBF): 1,000,000 h
• Input voltage: 3.3 V
• Operating temperature: 0 - 70 °C
• Weight: 20 g
• Quantity per pack: 1 piece(s)
