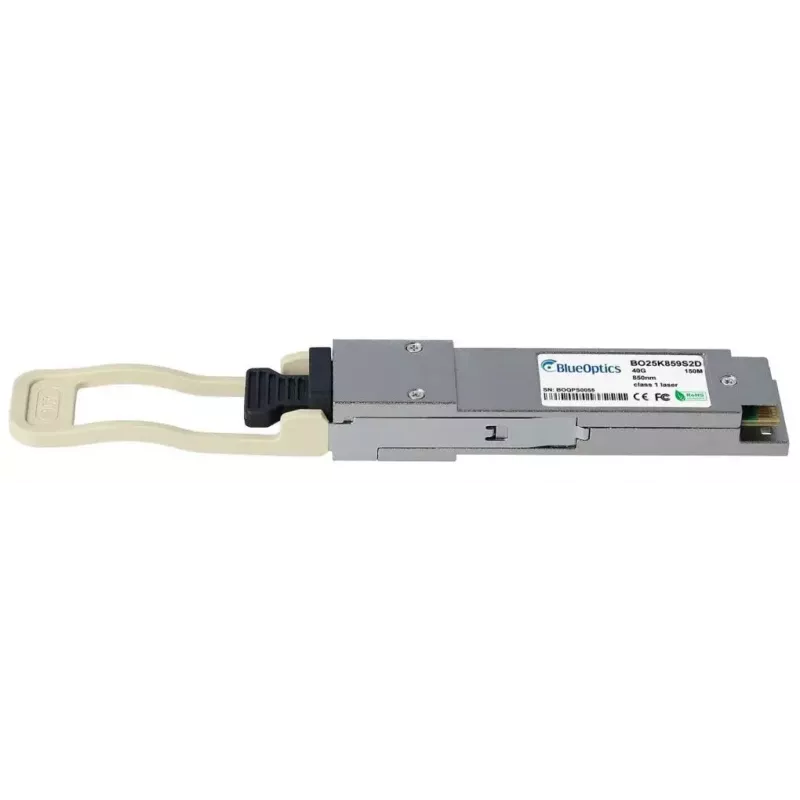

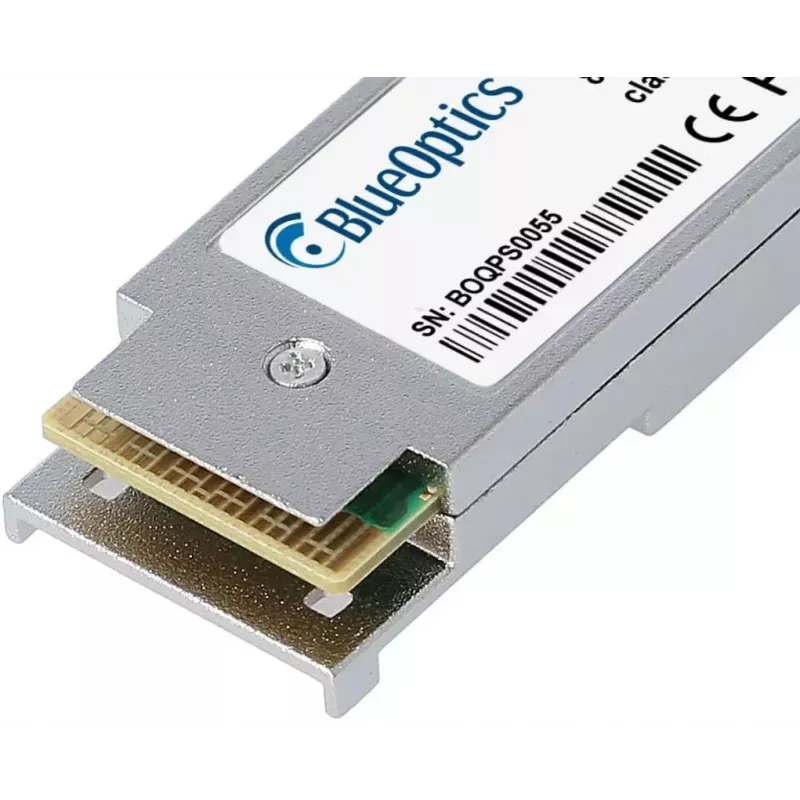

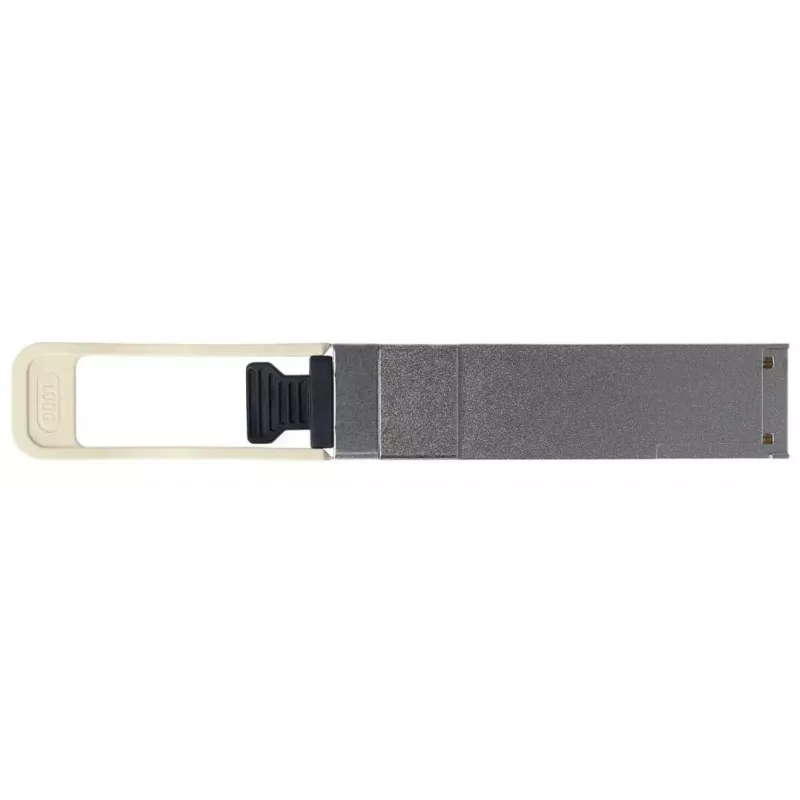

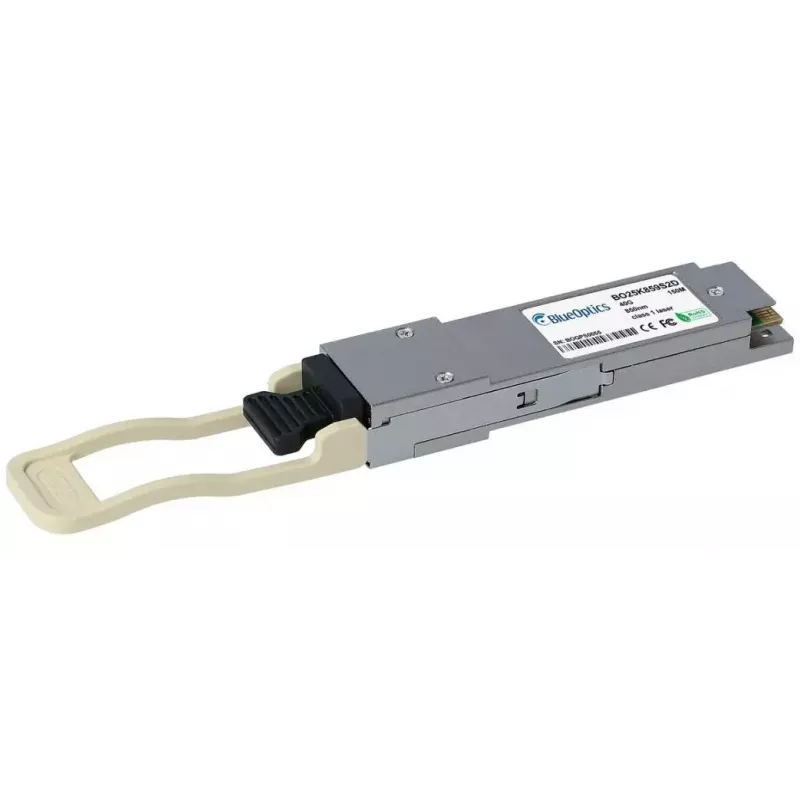

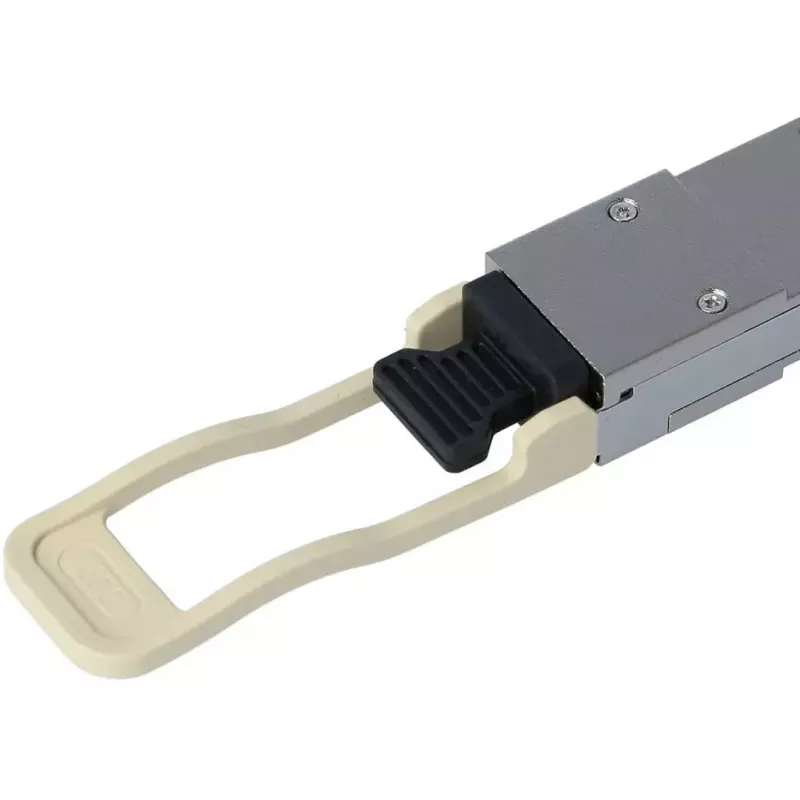

Modulo ricetrasmettitore QSFP BlueOptics QSFP10G-MM-A-BO fibra ottica MPO

The BlueOptics QSFP10G-MM-A-BO is a compact 40 Gigabit Ethernet fiber optic transceiver module with a QSFP interface and MPO/MTP connector. Designed for multimode fiber links, it supports high-speed optical transmission up to 150 m at 850 nm and offers a lightweight aluminium housing (approx. 20 g) for easy handling and installation in data center and enterprise networking equipment. The module follows MSA-compatible QSFP form-factor conventions and is intended for use in systems that accept compatible 40GBASE-SR4 QSFP transceivers.

Advantages

This BlueOptics QSFP transceiver provides 40G data throughput over multimode fiber with an MPO/MTP interface, enabling parallel fiber connections and simultaneous transmit/receive channels. The aluminium housing contributes to durability while keeping the module lightweight for simple handling. The transceiver is designed for compatibility with major networking platforms that support MSA QSFP modules and includes components selected to maintain stable performance and service life.

Suitable for

Key specifications

How to use

Install the QSFP10G-MM-A-BO into a vacant QSFP port on a compatible switch, router or other networking device, ensuring the module is fully seated and latched according to the host hardware instructions. Connect an MPO/MTP multimode fiber patch cord to the transceiver and route the other end to the corresponding MPO port or patch panel. Verify link status and speed via the host device management interface. If your system supports Digital Diagnostics (DDM/DOM), enable or query diagnostics via the equipment management system to monitor supply voltage, laser bias, optical power and temperature.

Recommendations

For optimal performance, use high-quality OM3/OM4 multimode fiber and MPO/MTP patch cords, keep connectors clean and inspect them before mating, and confirm that the host device firmware supports third-party QSFP modules and any DDM features you intend to use. Observe standard ESD precautions when handling the transceiver and follow the network vendor's guidance for firmware and compatibility checks.
