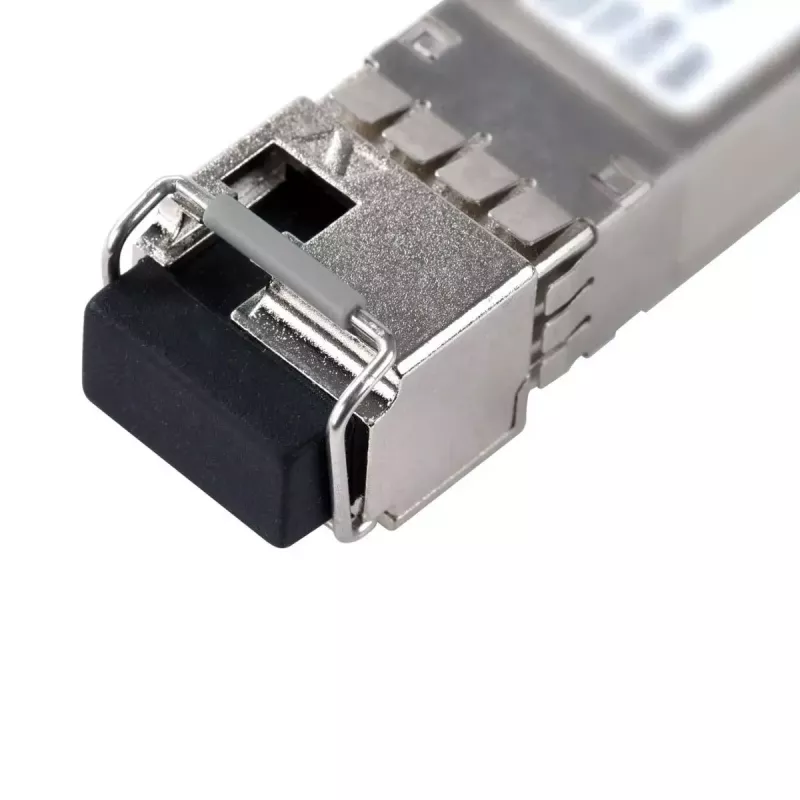

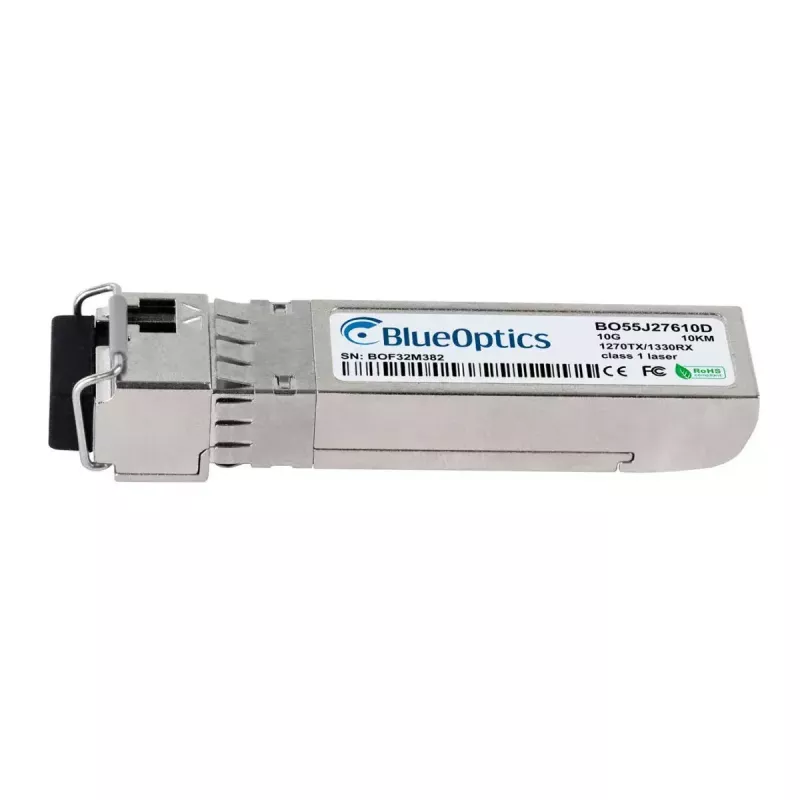

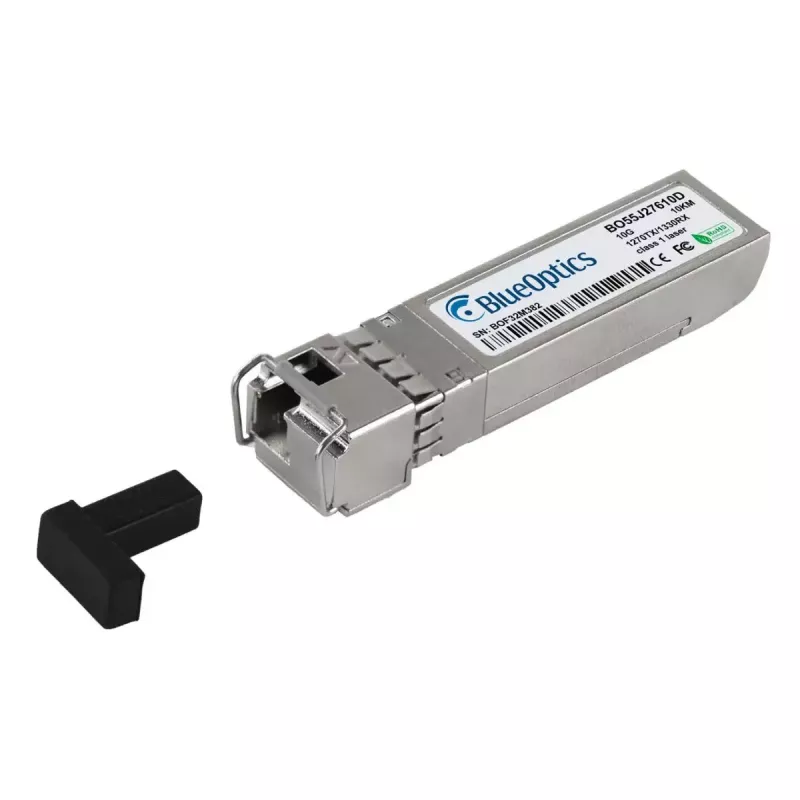

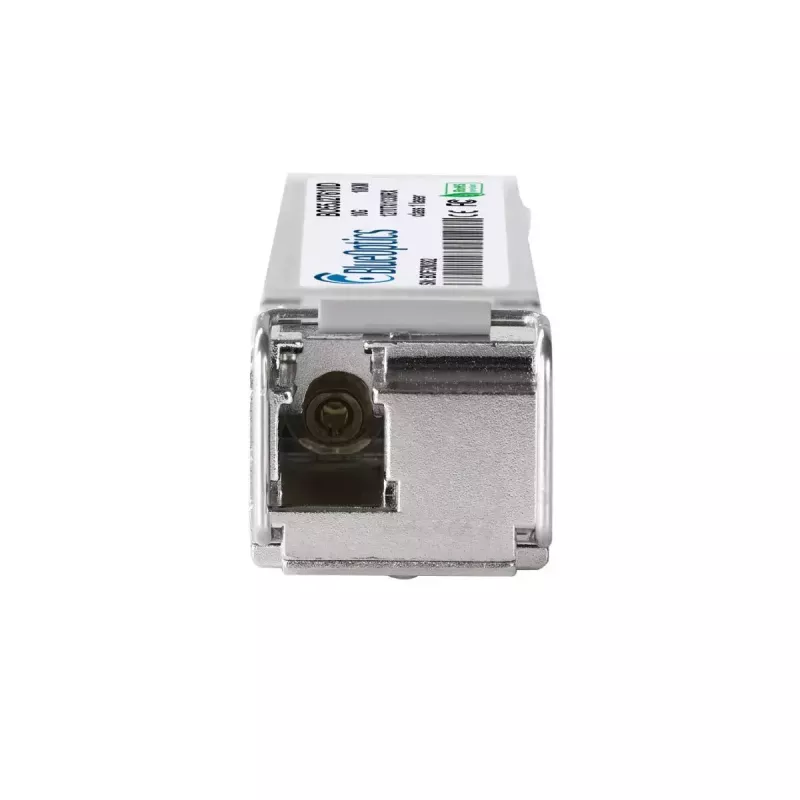

Modulo ricetrasmettitore SFP+ BlueOptics 02310QBJ-BO 10000 Mbit/s

The BlueOptics 02310QBJ-BO SFP+ transceiver module is a compact fiber-optic interface designed for 10 Gbit/s networks. It follows MSA SFP+ form-factor standards, uses a metal housing in silver finish and operates from a 3.3 V supply. The module implements a 10GBASE-BX-U single-mode duplex link with LC simplex connectivity and supports optical transmission over distances up to around 10 km using single-mode fiber. The transceiver integrates transmit and receive lasers at different wavelengths to enable bidirectional operation on a single fiber and is suitable for use in networking equipment that supports SFP+ 10GBASE-BX-U modules.

Advantages

The module offers a small, industry-standard SFP+ form factor that fits a wide range of switches, routers and storage platforms. Built with a metal housing and low weight, it provides mechanical reliability while maintaining low power operation at 3.3 V. Compliance with MSA specifications and compatibility with devices that accept the original referenced module ensures straightforward integration. The transceiver supports digital diagnostics (DDM/DOM) for real-time monitoring of supply voltage, laser bias, optical power and temperature when the host hardware exposes these functions.

Suitable for

• 10 Gbit/s Ethernet links over single-mode fiber
• Long-reach fiber connections up to approximately 10 km
• Interconnection of switches, routers and storage systems
• Service provider and enterprise backbone segments requiring BX-U bidirectional links

Key specifications

• Interface type: SFP+
• Maximum data transfer rate: 10000 Mbit/s (10 Gbit/s)
• Transmission standard: 10GBASE-BX-U (bidirectional over single fiber)
• Optical fiber type: Single-mode fiber (SMF)
• Connector type: LC simplex
• Transmitter wavelength: 1330 nm (typical for BX-U transmit)
• Receiver wavelength: 1270 nm (typical for BX-U receive)
• Operating voltage: 3.3 V
• Product colour / housing: Silver metal housing
• Weight: approximately 0.002 kg

How to use

Install the SFP+ transceiver into an appropriate SFP+ slot on a switch, router or other compatible network device while the host device is powered down or following the vendor's hot-plug guidelines. Connect an LC simplex single-mode fiber patch cord to the transceiver's LC connector and ensure the corresponding remote transceiver uses the complementary BX wavelength pairing (one end transmitting at 1330 nm and receiving at 1270 nm). Enable or verify 10 Gbit/s operation and, if required, enable digital diagnostics monitoring via the management interface of the host device to view real-time optical and electrical parameters.

Recommendations

Use quality single-mode patch cords and maintain clean LC connectors to ensure optimal optical performance. Verify host compatibility and DDM/DOM support before deployment. For reliable long-term operation, follow manufacturer guidelines for handling, electrostatic discharge protection and operating temperature limits.
