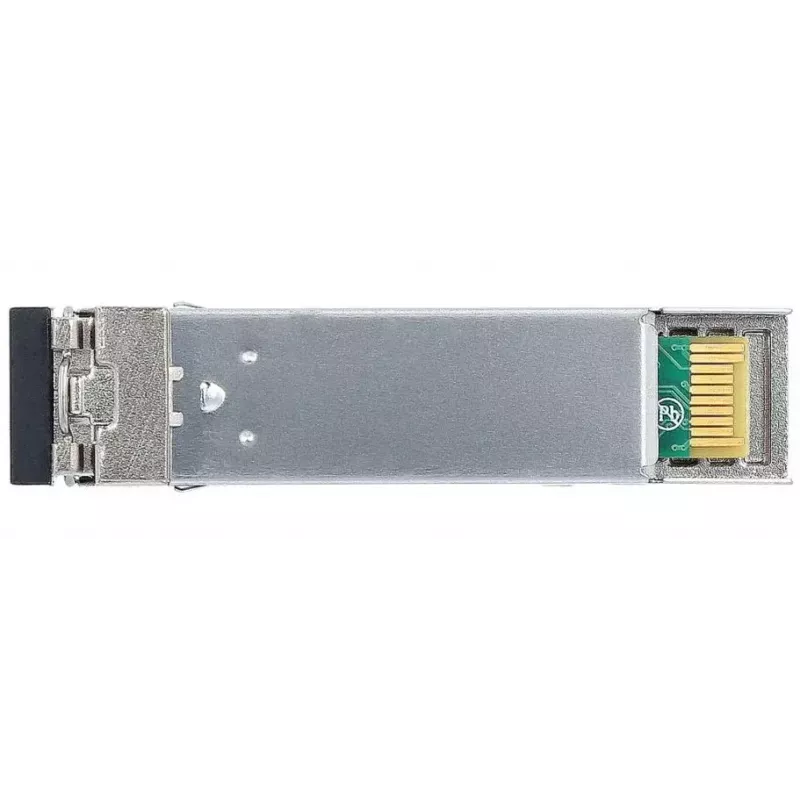

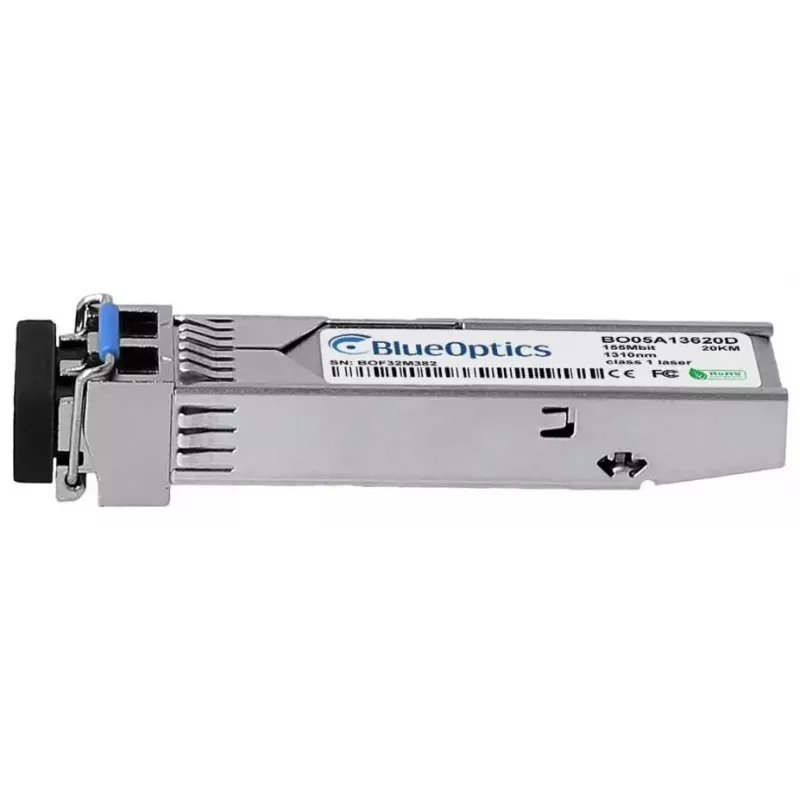

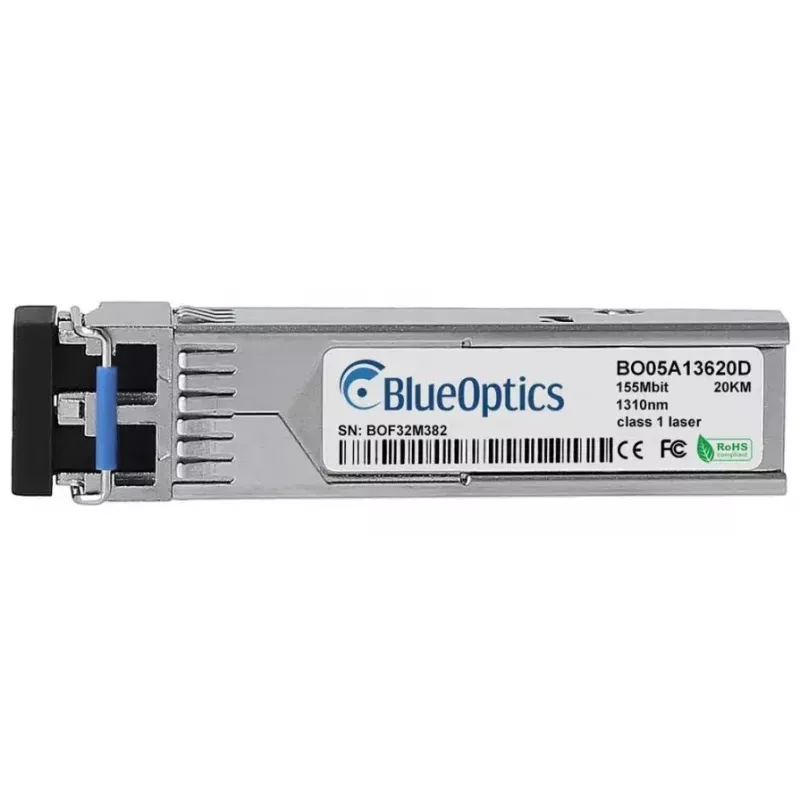

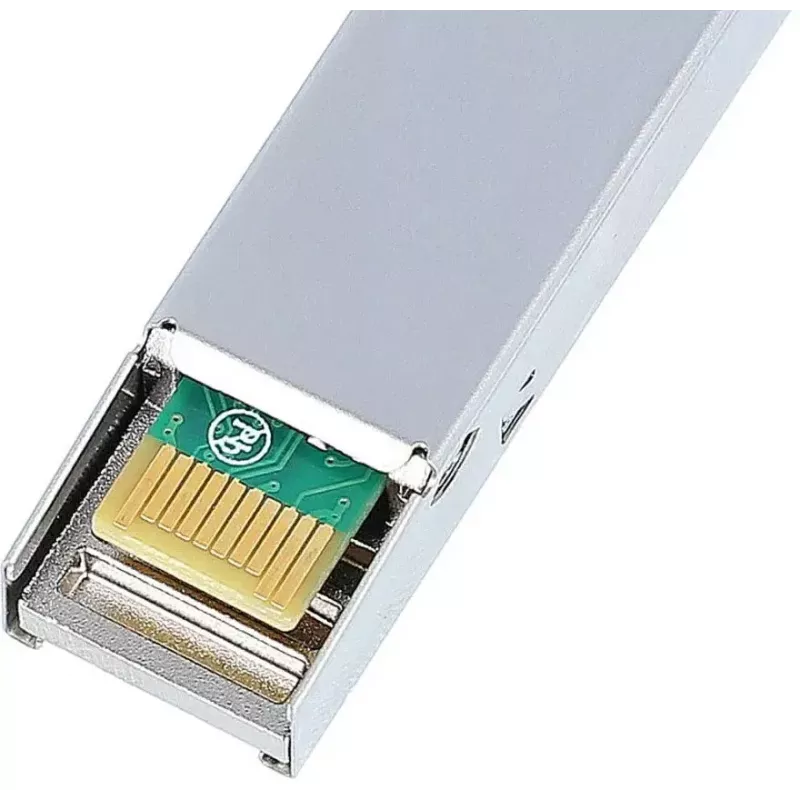

Modulo ricetrasmettitore SFP BlueOptics 1100-0132-BO 155 Mbit/s 1310 nm

The BlueOptics 1100-0132-BO SFP transceiver module is a compact optical module for network equipment that supports data transfer at up to 155 Mbit/s. Operating at a wavelength of 1310 nm and equipped with an LC duplex fiber connector, this SFP module is intended for single-mode fiber links and fits standard SFP ports. The module is lightweight (approximately 20 g) and finished in a silver housing that conforms to MSA mechanical and electrical dimensions for pluggable transceivers.

Advantages

The module offers support for 100BASE-LH class optical links with simultaneous transmit and receive channels via an LC duplex interface, enabling point-to-point single-mode fiber connections with extended reach. It is manufactured to industry MSA standards to ensure interoperability with compatible switches, routers and other SFP-capable devices. Built from selected components and tested for compatibility, the transceiver provides stable optical signalling at 1310 nm and is suitable for deployments where compact, hot-swappable optics are required.

Suitable for

• Single-mode fiber Ethernet links up to 155 Mbit/s
• Interconnecting switches, routers and storage interfaces with SFP ports
• Longer-reach point-to-point links using LC duplex connectors
• Replacement or spare optical modules in network maintenance

Key specifications

• Interface type: SFP (small form-factor pluggable)
• Maximum data transfer rate: 155 Mbit/s
• Optical wavelength: 1310 nm

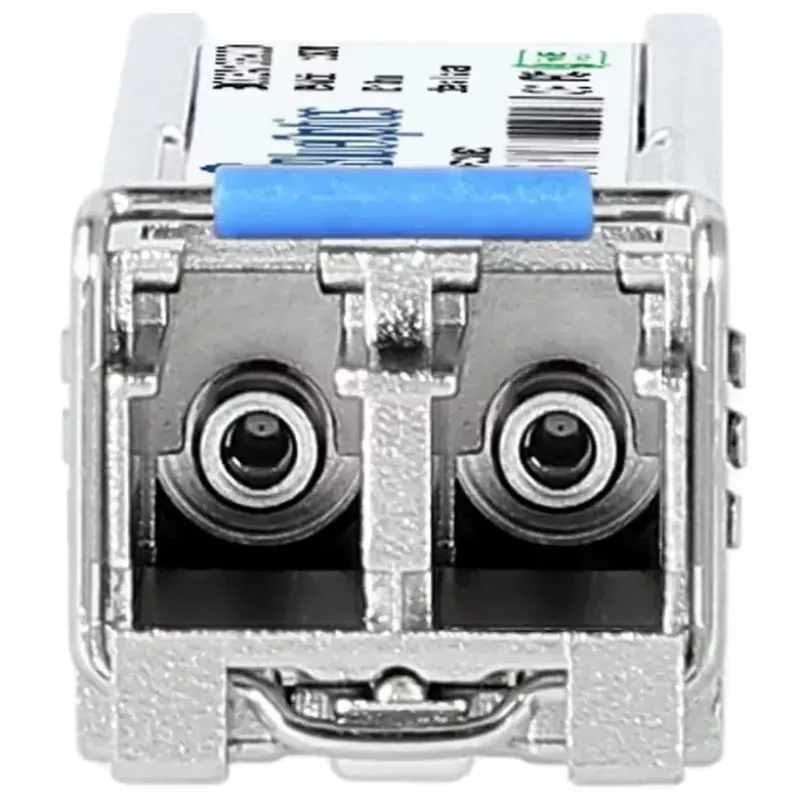

• Connector: LC duplex fiber connector
• Intended fiber type: single-mode fiber
• Weight: approximately 0.02 kg
• Housing colour: silver

How to use

Insert the SFP transceiver into a compatible SFP cage on your network device while the device is powered down or following the manufacturer's hot-swap instructions. Connect single-mode fiber patch cords to the LC duplex connector, observing transmit/receive orientation. Configure the network device according to its interface and link settings (speed, duplex, auto-negotiation) and verify link status through the device management interface. If available, enable and monitor diagnostic information provided by the host device to confirm optical power and link health.

Recommendations

Use single-mode LC duplex patch cords of appropriate quality and ensure connectors are clean before mating. Verify that the host device supports 100BASE-LH SFP modules and any required diagnostic (DDM/DOM) features. For reliable performance, avoid bending fiber beyond recommended radii and protect the module from electrostatic discharge during installation.
