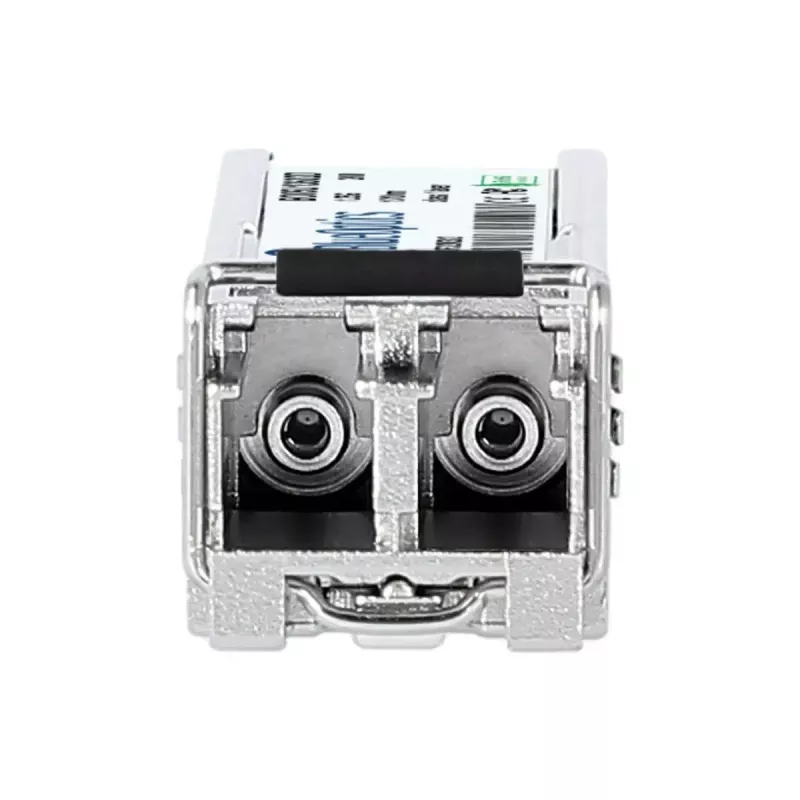

Modulo ricetrasmettitore SFP BlueOptics 1442655G1C-BO fibra ottica 2000 m

The BlueOptics 1442655G1C-BO SFP transceiver module is a fiber optic 1000BASE-X SFP designed for single-port insertion into compatible network equipment. Encased in an aluminium housing and weighing approximately 20 grams, this compact transceiver supports optical data transmission over multimode fiber up to 2,000 meters using an LC duplex connector. The module implements industry MSA-compliant SFP form factor and operates with 1310 nm transmitter and receiver wavelengths for gigabit-class optical links.

Advantages

The module provides a compact, low-weight solution for adding gigabit fiber connectivity to switches, routers and storage devices that support SFP transceivers. Its aluminium housing offers mechanical robustness and thermal dissipation, while adherence to MSA standards ensures interoperability with a wide range of network hardware. Built with components selected for reliable optical performance, the transceiver supports stable links over multimode fiber and reduced susceptibility to electromagnetic interference compared with copper connections.

Suitable for

• Connecting switches and routers over multimode fiber up to 2 km
• Extending network segments in enterprise and data center environments
• Replacing or upgrading existing SFP ports to 1000BASE-X optical links
• Integration into storage and network equipment that accepts standard SFP modules

Key specifications

• Interface type: SFP (MSA-compliant form factor)
• Optical wavelengths: 1310 nm transmitter and receiver
• Maximum transmission distance: up to 2,000 m over multimode fiber
• Connector: LC duplex
• Supported data rate: 1.25 Gbit/s (1000BASE-X)
• Housing material and colour: aluminium / aluminium
• Weight: 0.02 kg

How to use

Insert the SFP transceiver into a compatible SFP slot on your switch, router or storage device until it latches. Connect LC duplex multimode fiber patch cords to the module’s LC ports, observing correct Tx/Rx orientation. Ensure the host device is configured for 1000BASE-X operation and that the physical layer settings match the optical link parameters. When supported by the host, enable Digital Diagnostic Monitoring (DDM/DOM) in the device management interface to monitor voltage, temperature and optical power parameters. Power down the system only if hot-swap is not supported by the equipment.

Recommendations

Use quality multimode LC duplex patch cords and maintain clean connector end-faces to ensure optimal optical performance. Verify compatibility with the intended host hardware and check that the device firmware supports third‑party SFP modules and any DDM/DOM functions you require.
