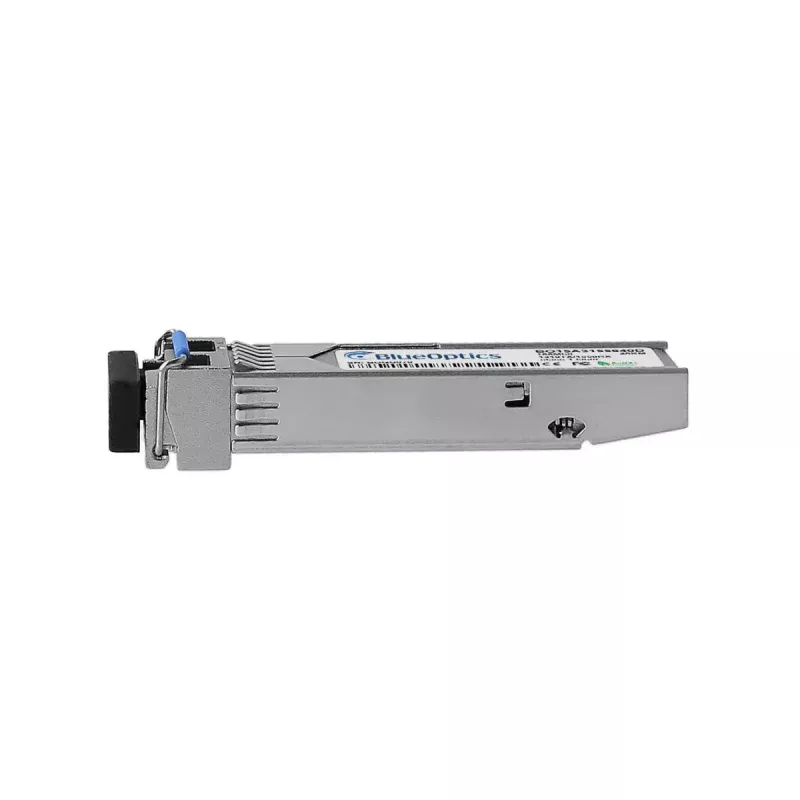

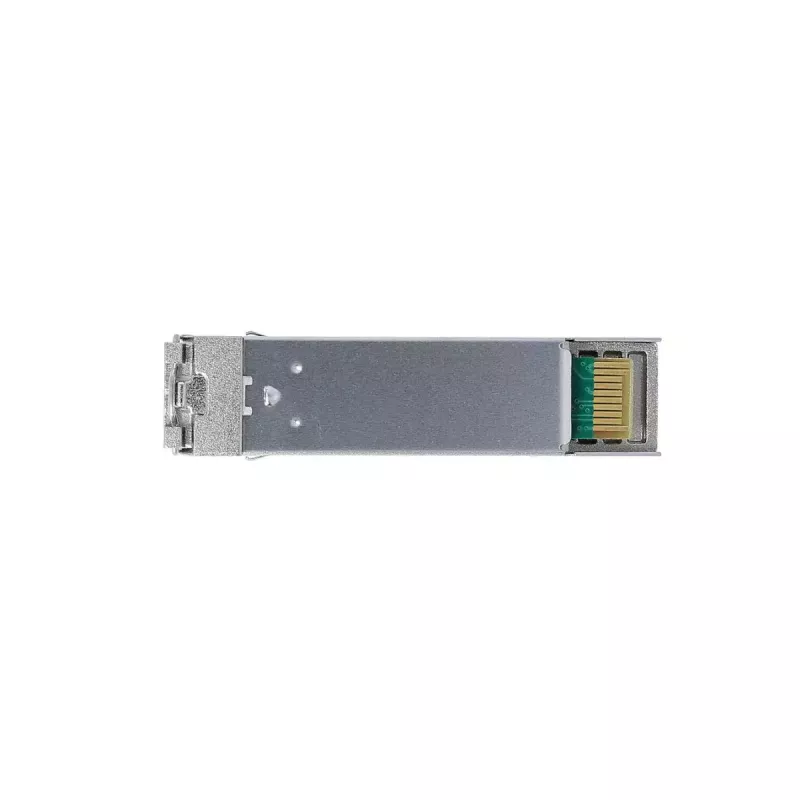

Modulo ricetrasmettitore SFP BlueOptics 551092-BO 1250 Mbit/s fibra ottica

The BlueOptics 551092-BO is an SFP transceiver module for fiber optic links, offering a maximum data transfer rate of 1250 Mbit/s in a compact SFP form factor. Designed for integration into compatible network switches, media converters and SFP ports, the module uses an LC fiber connector and supports single-fibre connections across distances up to 20,000 m. The module is finished in silver and rated with a mean time between failures (MTBF) of 1,000,000 hours. Compliance with CE, FCC and RoHS standards ensures adherence to common regulatory and safety requirements for networking equipment.

Advantages

The SFP transceiver provides a standardized, hot-pluggable interface that simplifies installation and replacement without powering down equipment. Its support for 1.25 Gigabit Ethernet signaling and LC connector ensures compatibility with a wide range of fiber networks and appliances. The long maximum transfer distance and high MTBF make the module suitable for extended point-to-point connections and locations where reliability over time is important.

Suitable for

• Fiber optic uplinks between switches and routers
• Media converters requiring an SFP module
• Long-distance singlemode fiber connections up to 20 km
• Network equipment maintenance and module replacement

Key specifications

• Maximum data transfer rate: 1250 Mbit/s (1.25 Gbit/s)
• Maximum transfer distance: up to 20,000 m
• Ethernet interface type: 1.25 Gigabit Ethernet
• Fiber optic connector: LC
• Form factor: SFP (small form-factor pluggable)
• Colour: Silver
• Weight: 0.02 kg
• Reliability: MTBF 1,000,000 hours

How to use

Ensure the host device supports SFP transceivers and the specified 1.25 Gigabit Ethernet signaling. With the equipment powered according to the manufacturer's instructions, insert the BlueOptics 551092-BO into a compatible SFP slot until it clicks into place. Connect LC-terminated fiber cables to the module, observing correct transmit and receive fiber orientation. Verify link status on the host device and configure network parameters as required. For removal, power down the host or follow hot-swap procedures recommended by the device manufacturer, withdraw the module and protect the fiber ports with dust caps when not in use.

Recommendations

Use singlemode fiber cabling rated for the intended distance and avoid bending the fiber beyond its minimum bend radius. Keep dust caps in place when ports are idle and handle the LC connector with care to prevent contamination. Follow the host device vendor guidelines for supported transceiver types and firmware compatibility to ensure reliable operation.
