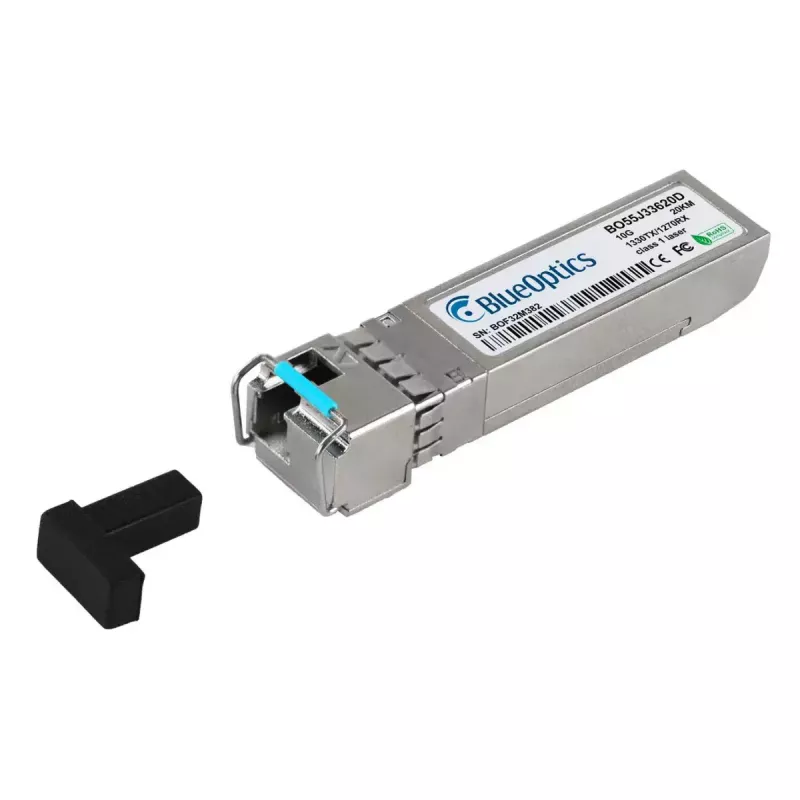

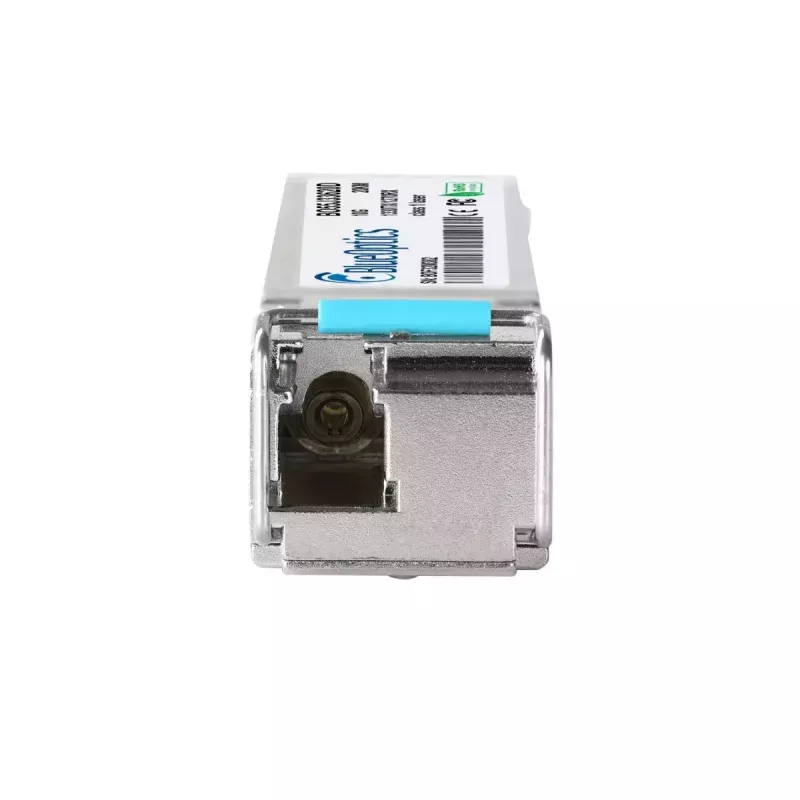

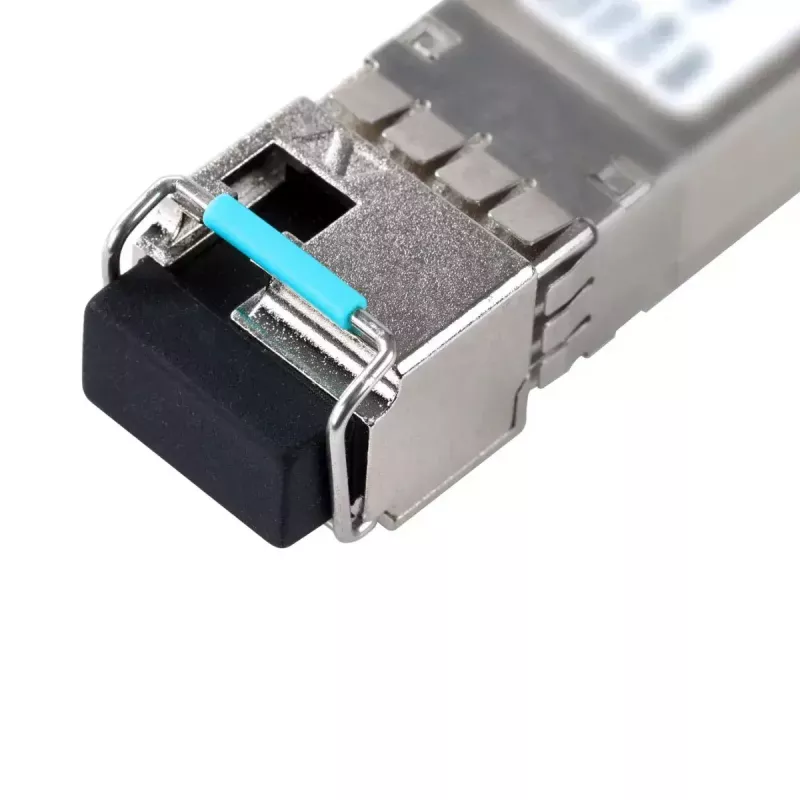

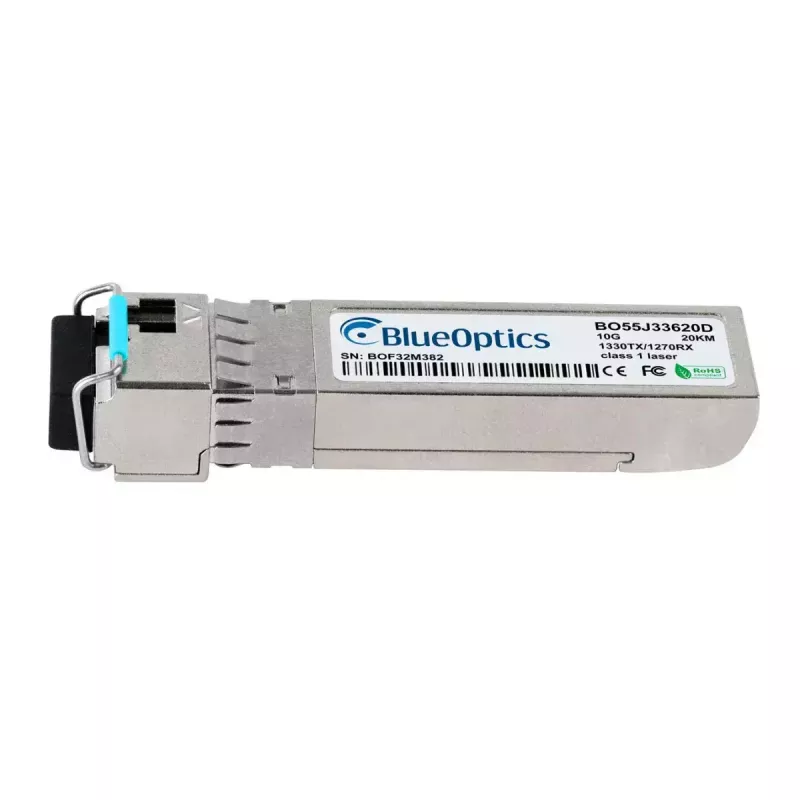

Modulo ricetrasmettitore SFP+ BlueOptics ISFP-10GBX-D-1330-20-BO 10000 Mbit/s

The BlueOptics ISFP-10GBX-D-1330-20-BO is an SFP+ fiber optic transceiver module designed for 10 Gbit/s optical links. It implements 10GBASE-BX-D single-fibre operation with LC simplex connectivity and separates transmit (1330 nm) and receive (1270 nm) wavelengths to support simultaneous bidirectional communication over a single fiber. Constructed to MSA form-factor specifications, the module is compatible with common hardware platforms that accept SFP+ transceivers and provides an MTBF of approximately 3,000,000 hours. The compact, silver-coloured module weighs about 20 g and is intended for use in switches, routers, storage systems and other network devices that support 10GBASE-BX-D optics.

Advantages

The module offers a standardized SFP+ form factor and LC simplex interface for easy installation and interoperability across MSA-compliant equipment. It supports 10 Gbit/s data rates and uses distinct transmit and receive wavelengths to enable duplex transmission on a single fiber, reducing fiber cabling requirements. Integrated digital diagnostics (DDM/DOM) provide real-time monitoring of supply voltage, laser bias current, optical output/input power and temperature to assist with maintenance and troubleshooting. The module is produced using components from established manufacturers and is tested for compatibility to achieve extended service life and high availability.

Suitable for

Key specifications

How to use

Insert the SFP+ transceiver into an SFP+ slot of a compatible switch, router or other network device while the host port is powered down or following the device manufacturer's hot-swap guidelines. Connect an LC simplex patch cable matching the single-fibre bidirectional (BX-D) topology to the module, ensuring the transmit and receive ends are correctly aligned between transceivers. Verify link status and negotiate speed on the host device. If required, enable and read the DDM/DOM values from the host management interface to monitor optical power, voltage and temperature.

Recommendations

Use MSA-compliant LC simplex single-fiber patch cables and ensure the remote transceiver supports complementary wavelengths (1270 nm / 1330 nm) for BX-D operation. Confirm DDM/DOM support on the host device if real-time diagnostics are needed, and follow ESD precautions during handling. For extended availability, deploy in environments within manufacturer-specified temperature and power ranges and perform periodic optical power checks using the DDM/DOM readings.
