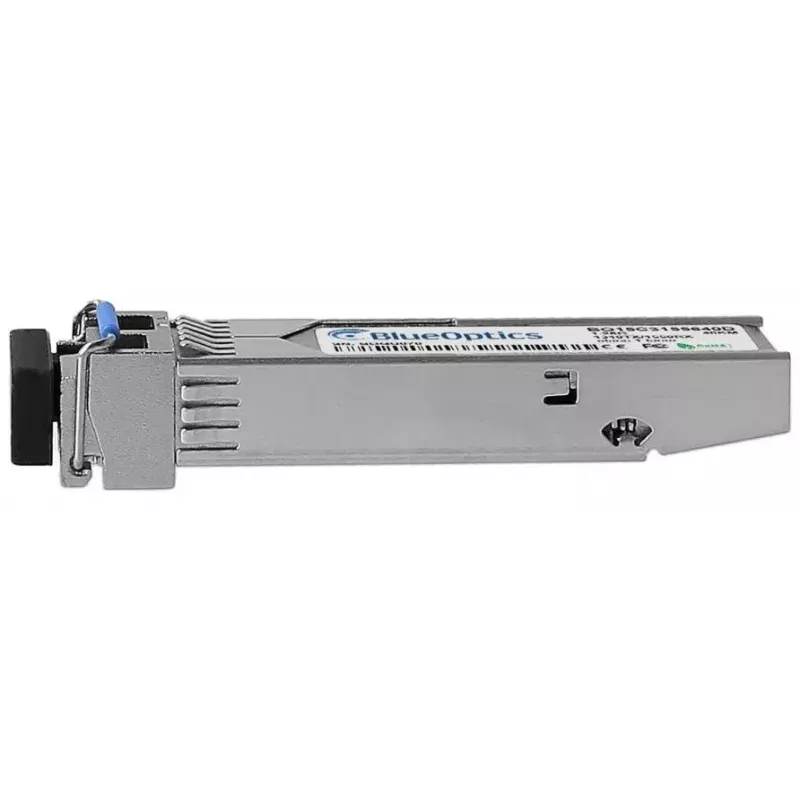

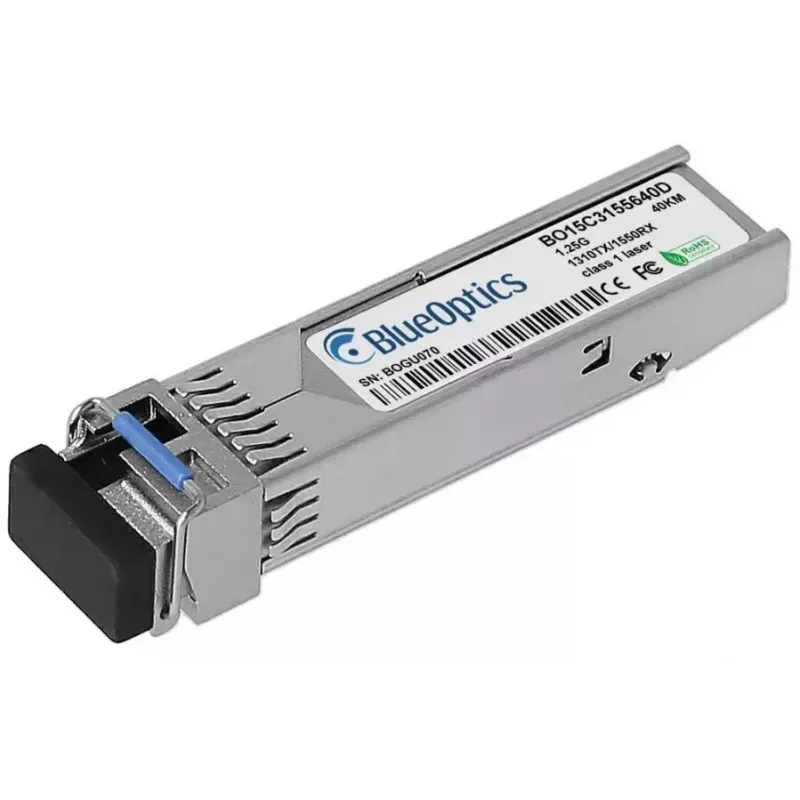

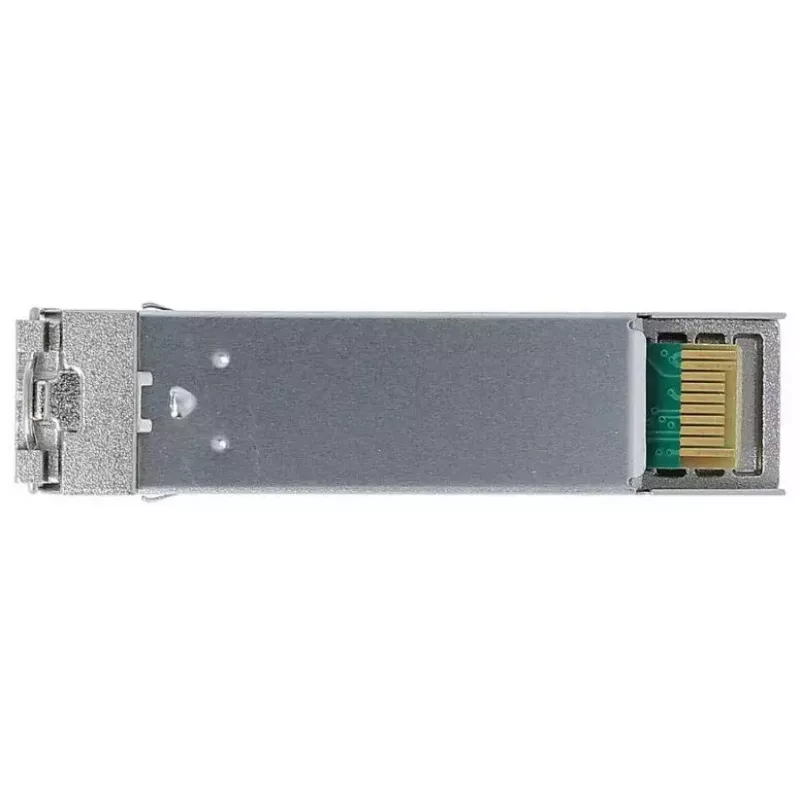

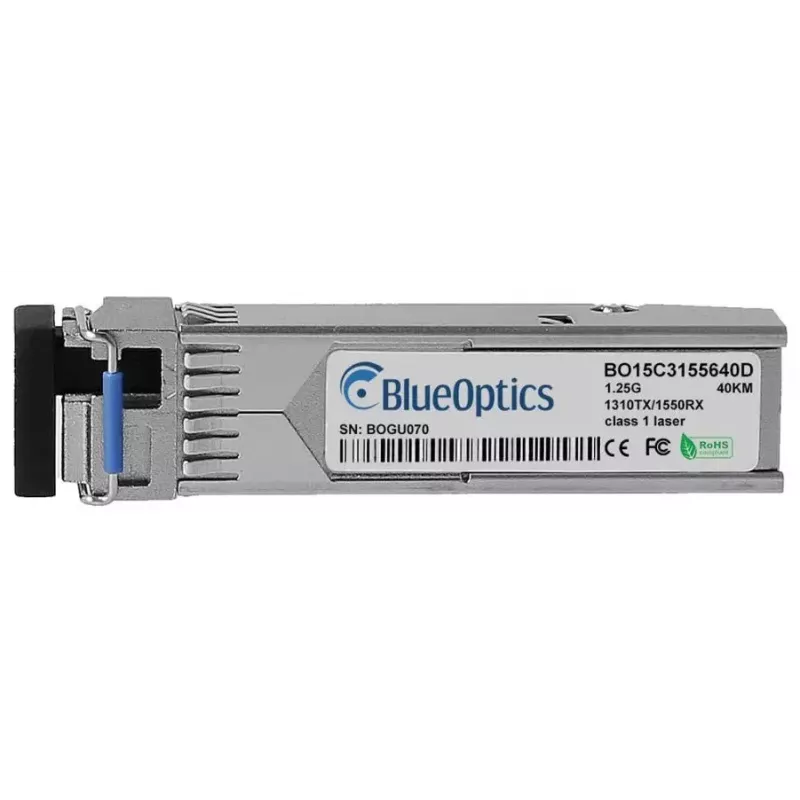

Modulo ricetrasmettitore SFP BlueOptics SFP-BXU35-40KM-ME-BO 1250 Mbit/s

The BlueOptics SFP-BXU35-40KM-ME-BO is a single-port SFP transceiver module designed for fiber optic links with a maximum data transfer rate of 1250 Mbit/s. Housed in a metal casing and weighing approximately 20 g, this compact module supports long-distance transmission up to 40 km and is intended for installation in compatible SFP slots on switches, routers and optical line equipment.

Advantages

The metal housing provides mechanical robustness and effective thermal conduction for stable operation. With a specified MTBF of 1,000,000 hours, the module is suitable for continuous network use. Its SFP form factor ensures broad compatibility with equipment that accepts small form-factor pluggable transceivers. The silver finish and lightweight design simplify handling and installation.

Suitable for

Key specifications

How to use

Ensure the host device supports SFP transceivers and is powered off or in a hot-swap ready state before insertion if required by the equipment. Remove any protective caps from the optical connector, align the module with the SFP slot and push until it latches. Connect the appropriate single-mode fibre cable to the transmit and receive ports, observing correct polarity. After installation, verify link status on the host device and monitor for expected data throughput. To remove, disengage the latch and pull the module straight out, then replace protective caps to protect the optical interfaces.

Recommendations

Use single-mode fiber compliant with the module’s wavelength and characteristics, maintain clean fiber endfaces to avoid signal loss, and follow the host equipment vendor’s guidance on supported transceivers to ensure interoperability and stable operation.
