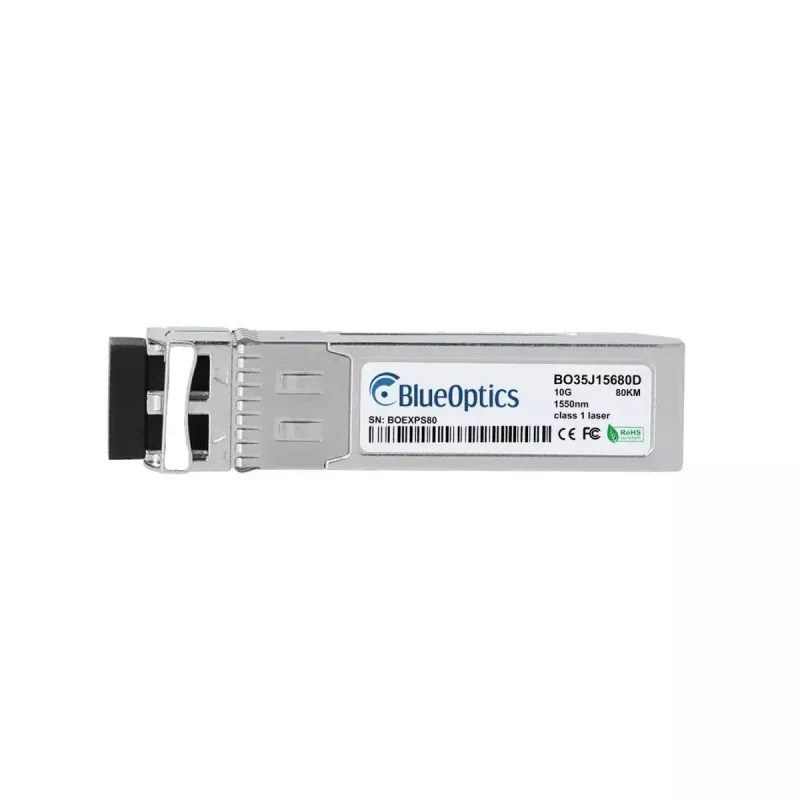

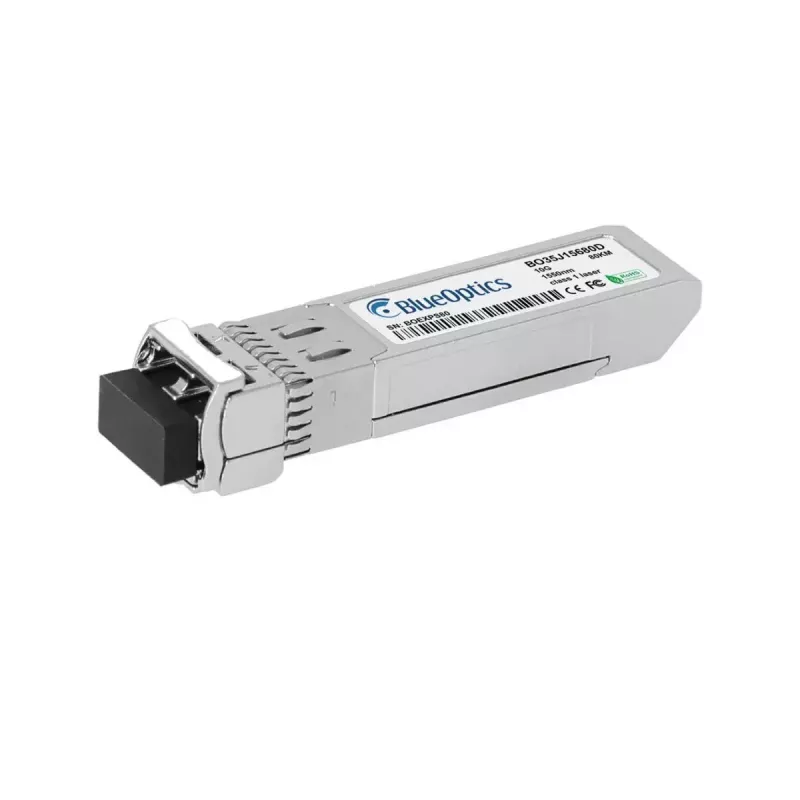

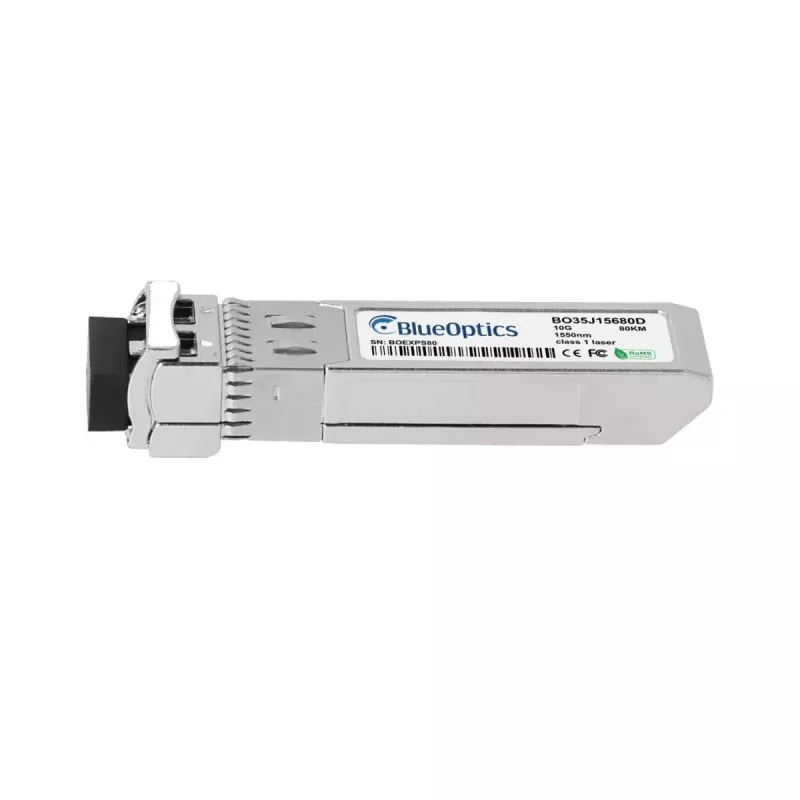

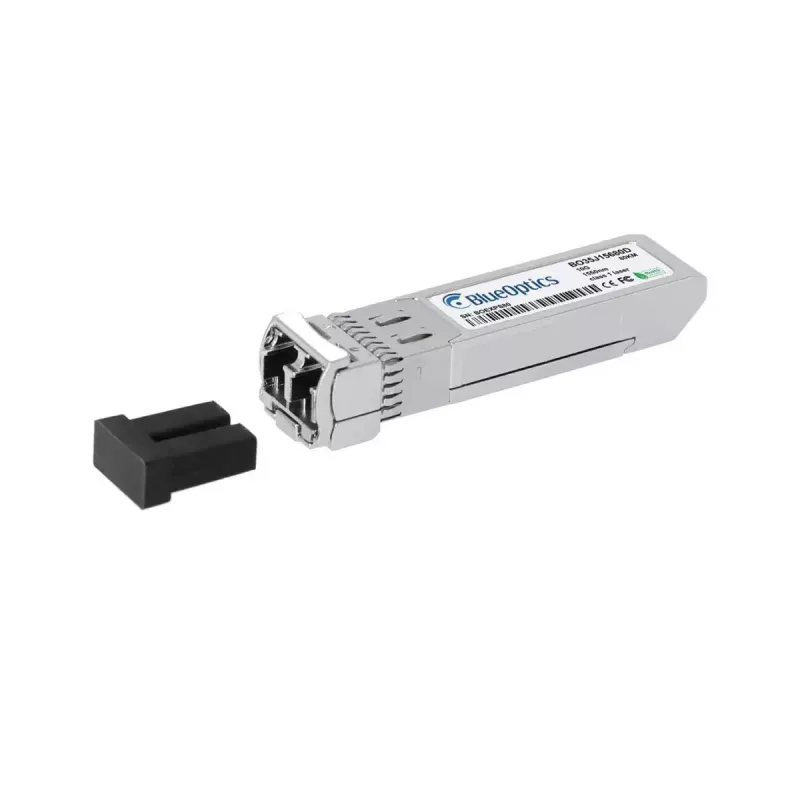

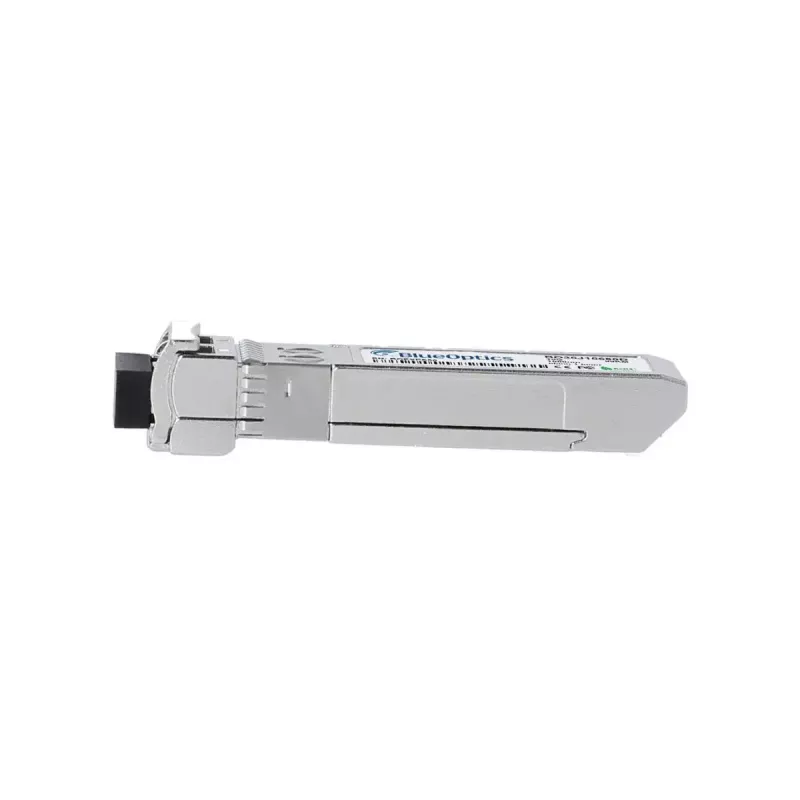

Modulo ricetrasmettitore SFP BlueOptics SFP10GZR80D-BO 10000 Mbit/s 1550 nm

The BlueOptics SFP10GZR80D-BO is a 10G SFP+ fiber optic transceiver module designed for single-mode links. It supports a maximum data rate of 10000 Mbit/s and operates at a wavelength of 1550 nm, enabling long-reach optical transmission. The module uses an LC duplex interface, is housed in a metal casing for mechanical durability, and runs from a 3.3 V supply. Its compact and lightweight design (approx. 2 g) allows simple hot-plug installation in compatible SFP+ ports.

Advantages

The module provides long-distance 10G connectivity over single-mode fiber with a 1550 nm transmitter and receiver, making it suitable for backbone and metropolitan links. Metal housing improves mechanical robustness and thermal performance. Compliance with SFP+ form-factor and LC duplex connector ensures compatibility with a wide range of networking equipment that accepts SFP+ transceivers. Low weight and hot-pluggable design simplify handling and installation.

Suitable for

• 10 Gigabit Ethernet uplinks between switches and routers
• Long-reach fiber links in campus and metropolitan networks
• Storage area network (SAN) and Fibre Channel over Ethernet (FCoE) links
• High-speed links for carriers and data center interconnects

Key specifications

• Interface type: SFP+
• Maximum data transfer rate: 10000 Mbit/s (10 Gbit/s)
• Optical wavelength: 1550 nm
• Connector: LC duplex
• Fiber type: single-mode fiber
• Power supply: 3.3 V input
• Product colour: silver (metal housing)
• Weight: approx. 0.002 kg

How to use

Insert the transceiver firmly into an empty SFP+ slot on a compatible switch, router or host adapter while the device is powered on or off according to the platform’s hot-plug guidance. Connect single-mode LC duplex fiber patch cords ensuring correct transmit/receive polarity. Verify link status and negotiated speed on the host device. If supported by the hardware, enable and monitor Digital Diagnostics/DOM to read real-time parameters such as supply voltage, laser bias current, output power, received power and temperature.

Recommendations

Ensure the target hardware officially supports third-party SFP+ modules or is compatible with SFP+ MSA transceivers. Use single-mode fiber and LC duplex patch cords rated for the required distance. For critical links, verify Digital Diagnostics Monitoring support on the host and monitor the reported optical values; schedule periodic inspections of connectors and endfaces to maintain signal quality.
